Vdc System Trouble Code Charts For Warning Light Codes

DTC 47 FAULTY CAN COMMUNICATION LINE

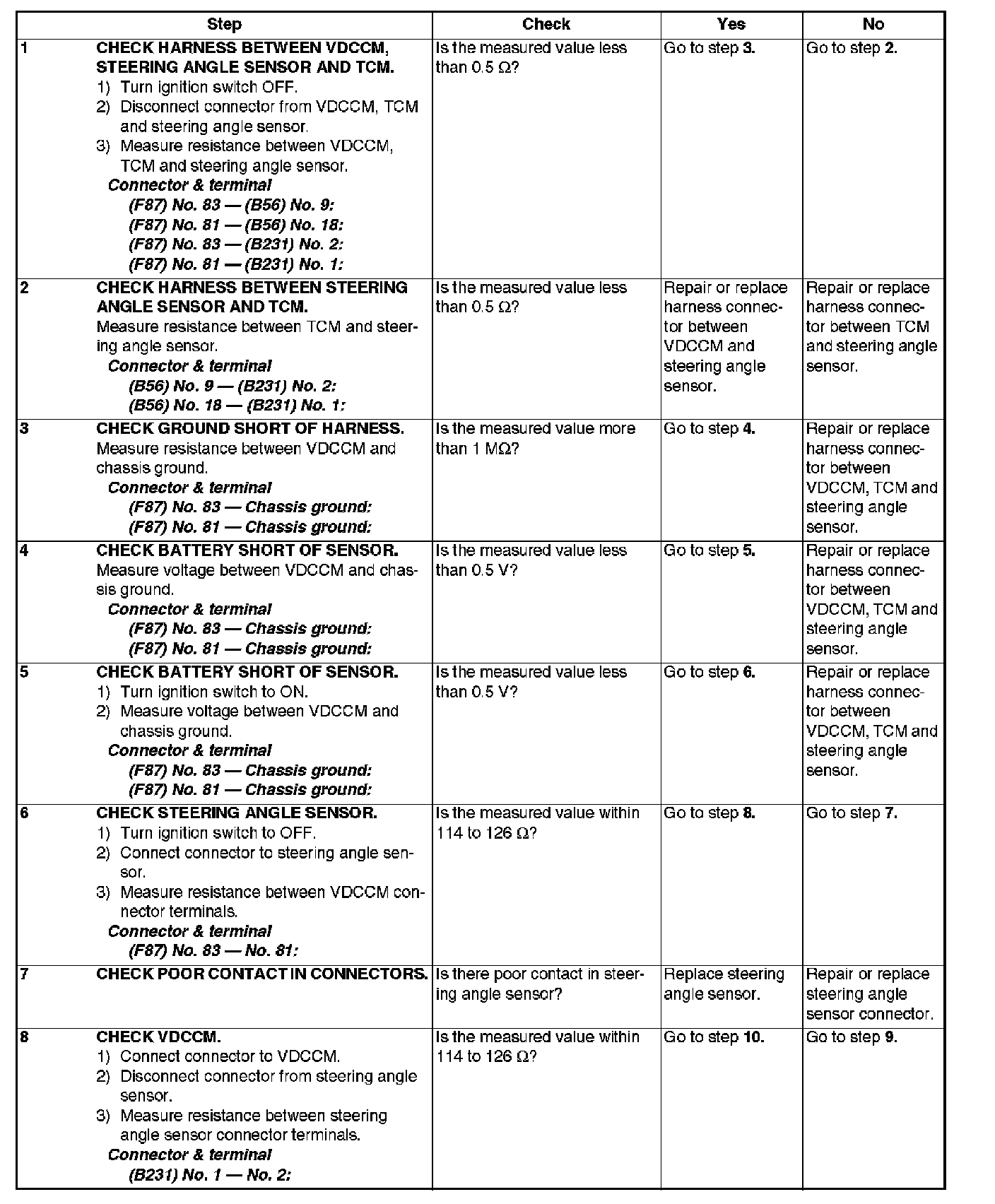

Steps 1-8:

Steps 9-14:

DIAGNOSIS:
^ CAN communication line is broken or short circuited.

TROUBLE SYMPTOM:
^ ABS does not operate.
^ VDC does not operate.

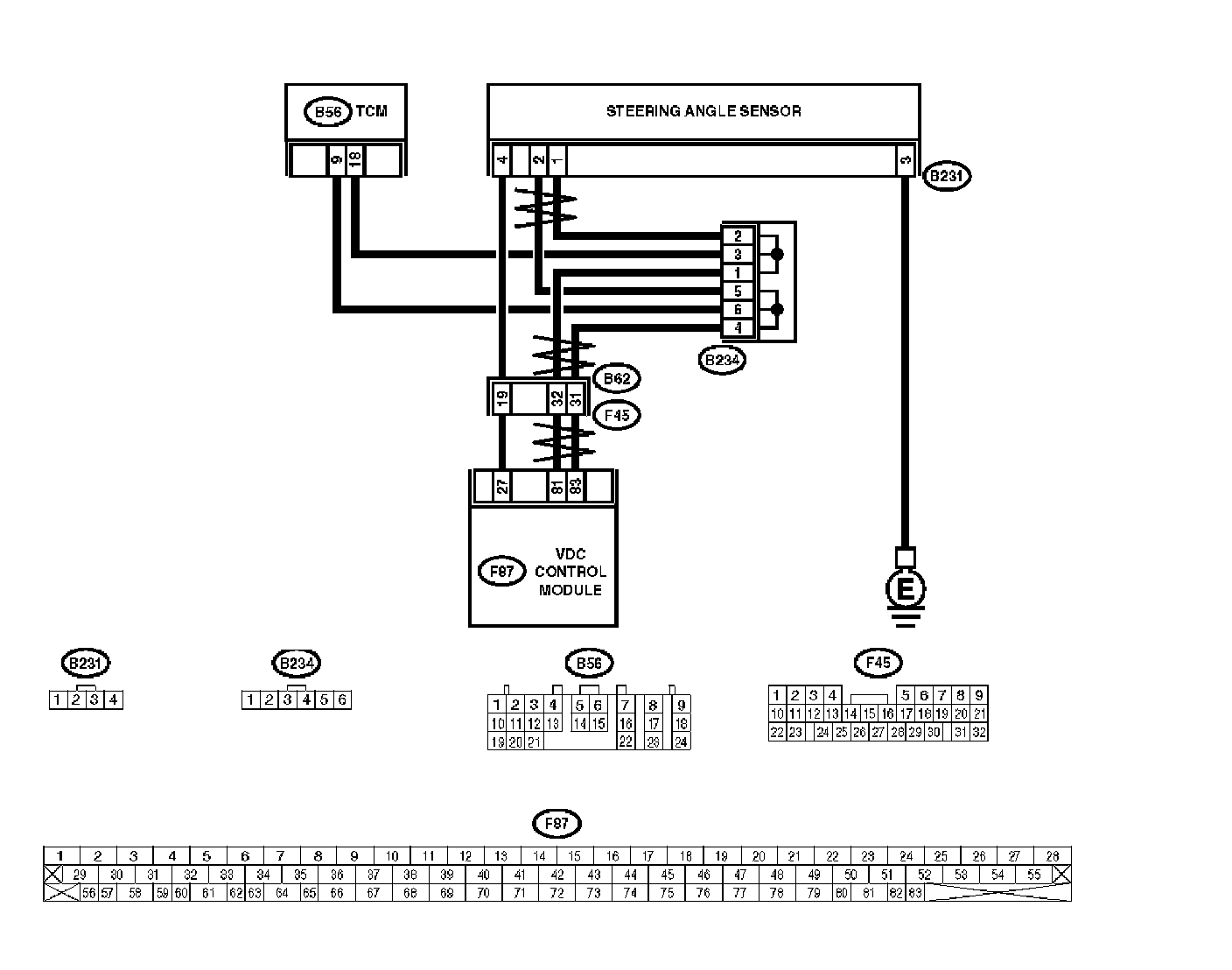

WIRING DIAGRAM
