Vdc System Trouble Code Charts For Select Monitor Results

DTC 47 IMPROPER CAN COMMUNICATION

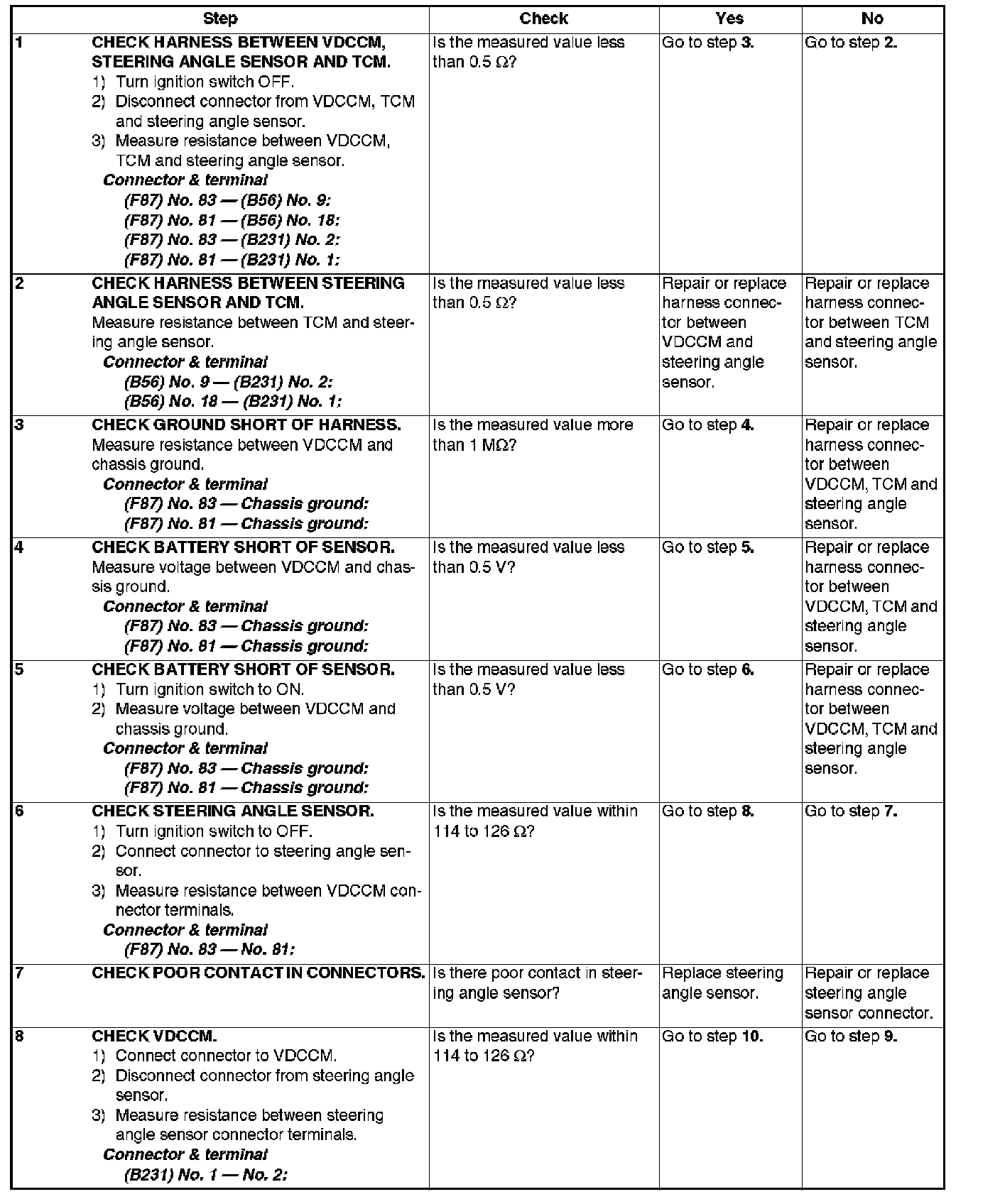

Steps 1-8:

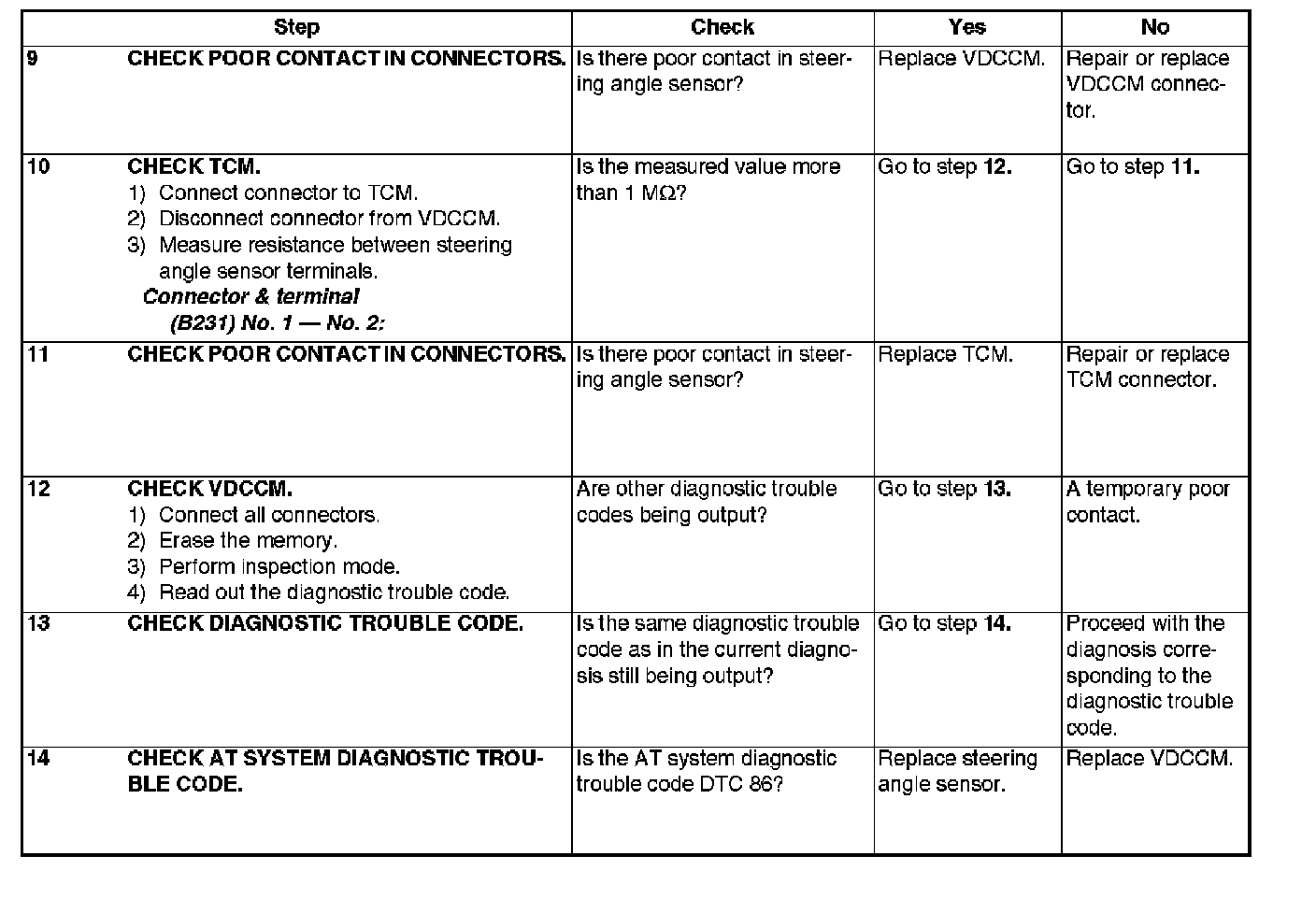

Steps 9-14:

DIAGNOSIS:
^ CAN communication line is broken or short circuited.

TROUBLE SYMPTOM:
^ ABS does not operate.
^ VDC does not operate.





WIRING DIAGRAM
