Vdc System Trouble Code Charts For Warning Light Codes

DTC 46 ABNORMAL VOLTAGE OF 5 V POWER SUPPLY

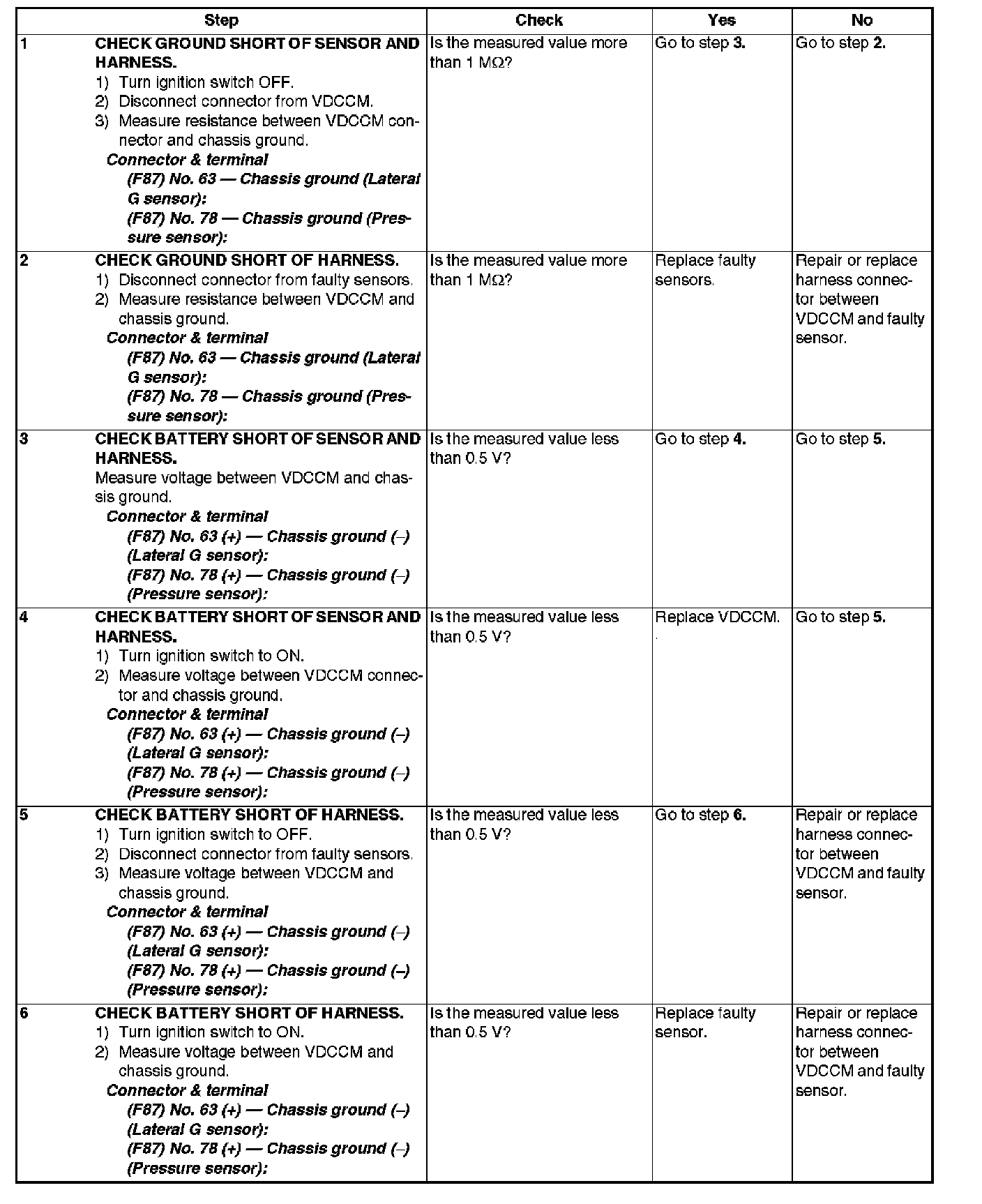

Steps 1-6:

DIAGNOSIS:
^ 5 volt power supply is abnormal.

TROUBLE SYMPTOM:
^ ABS does not operate.
^ VDC does not operate.

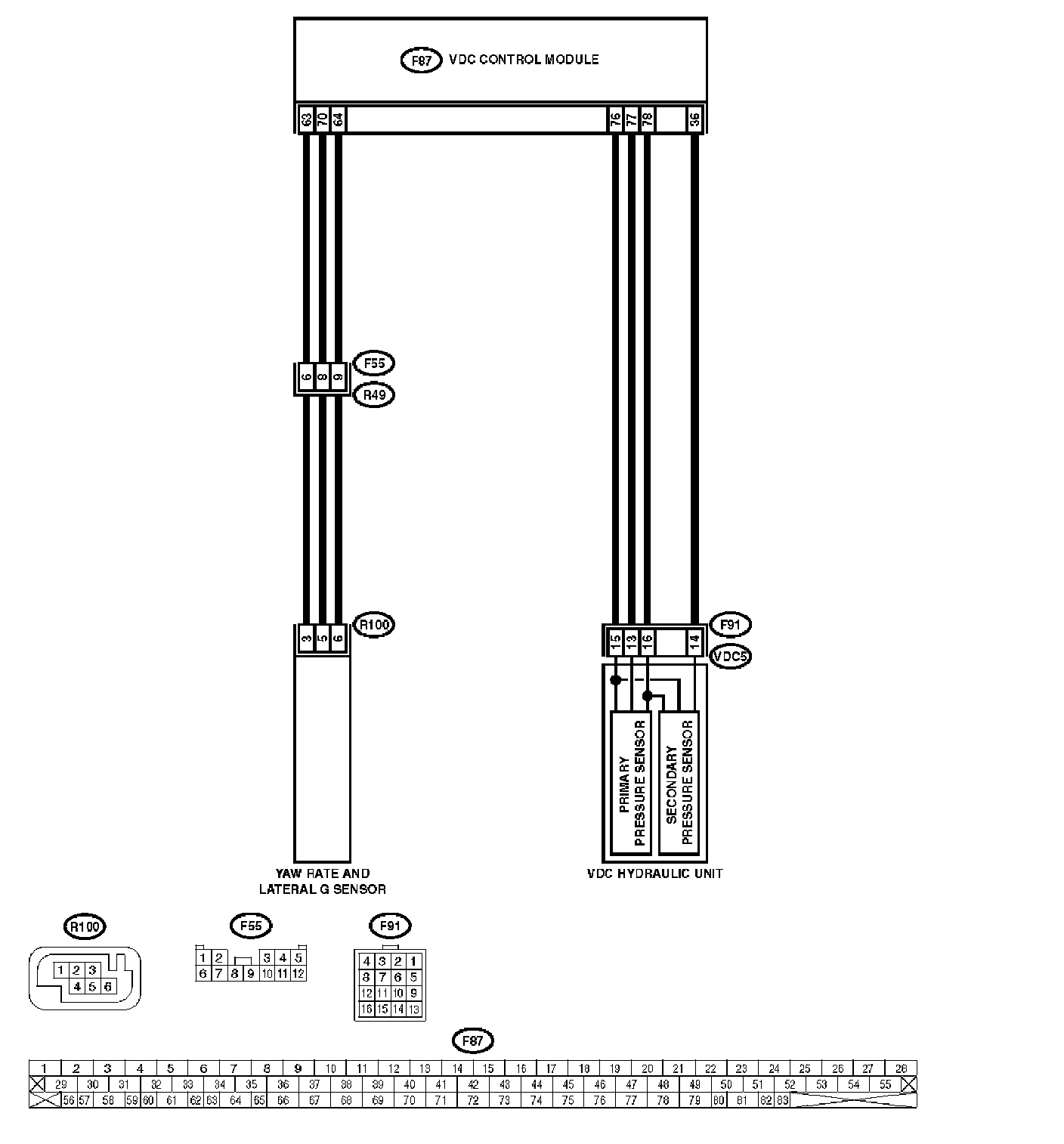

WIRING DIAGRAM
