Vdc System Trouble Code Charts For Select Monitor Results

DTC 44 TCM COMMUNICATION CIRCUIT

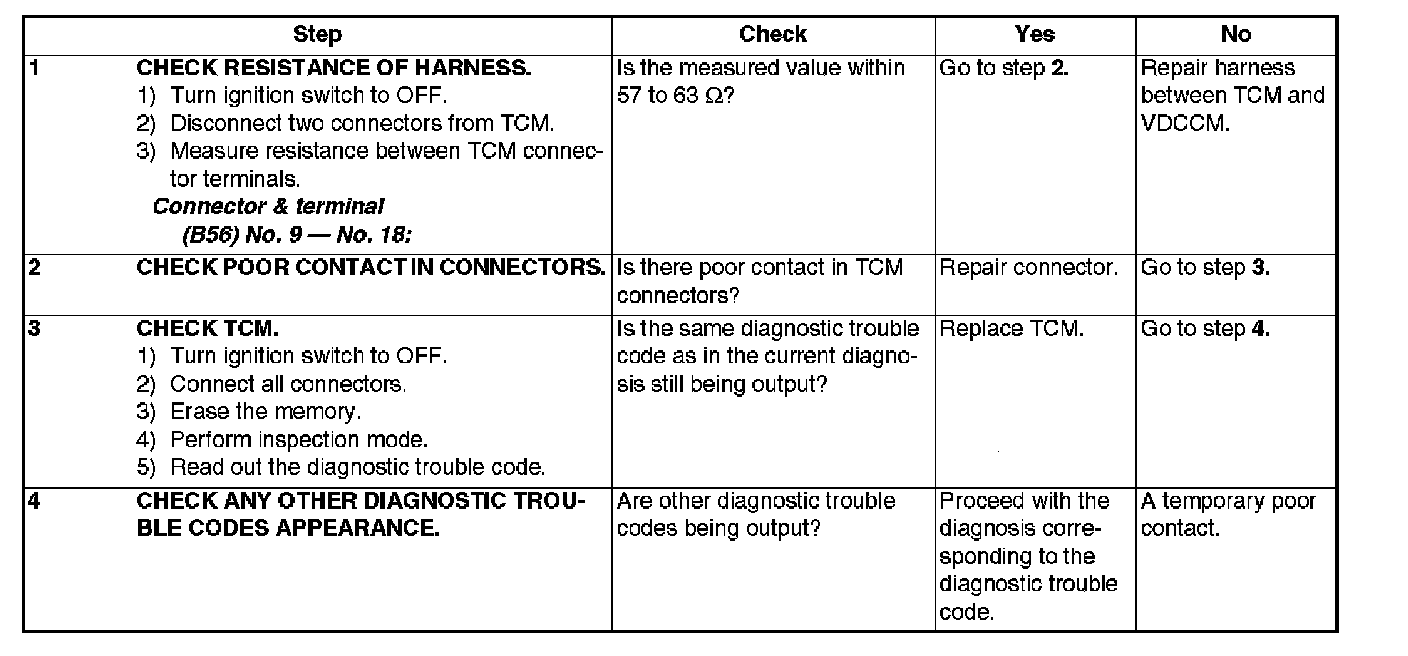

Steps 1-4:

DIAGNOSIS:
^ Communication with AT control faults

TROUBLE SYMPTOM:
^ VDC does not operate.

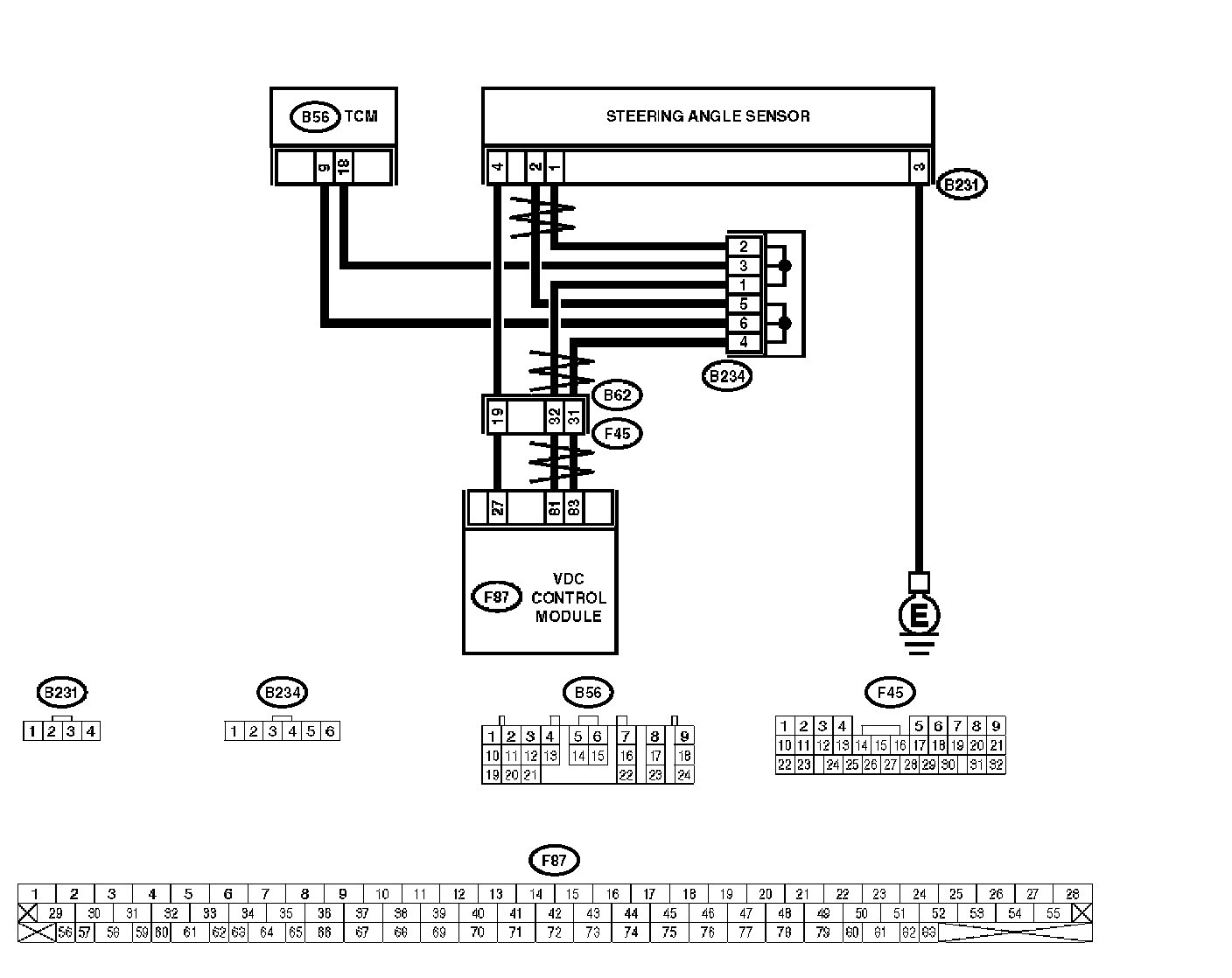

WIRING DIAGRAM
