ABS Trouble Code Charts For Warning Light Codes

DTC 44 A COMBINATION OF AT CONTROL ABNORMAL

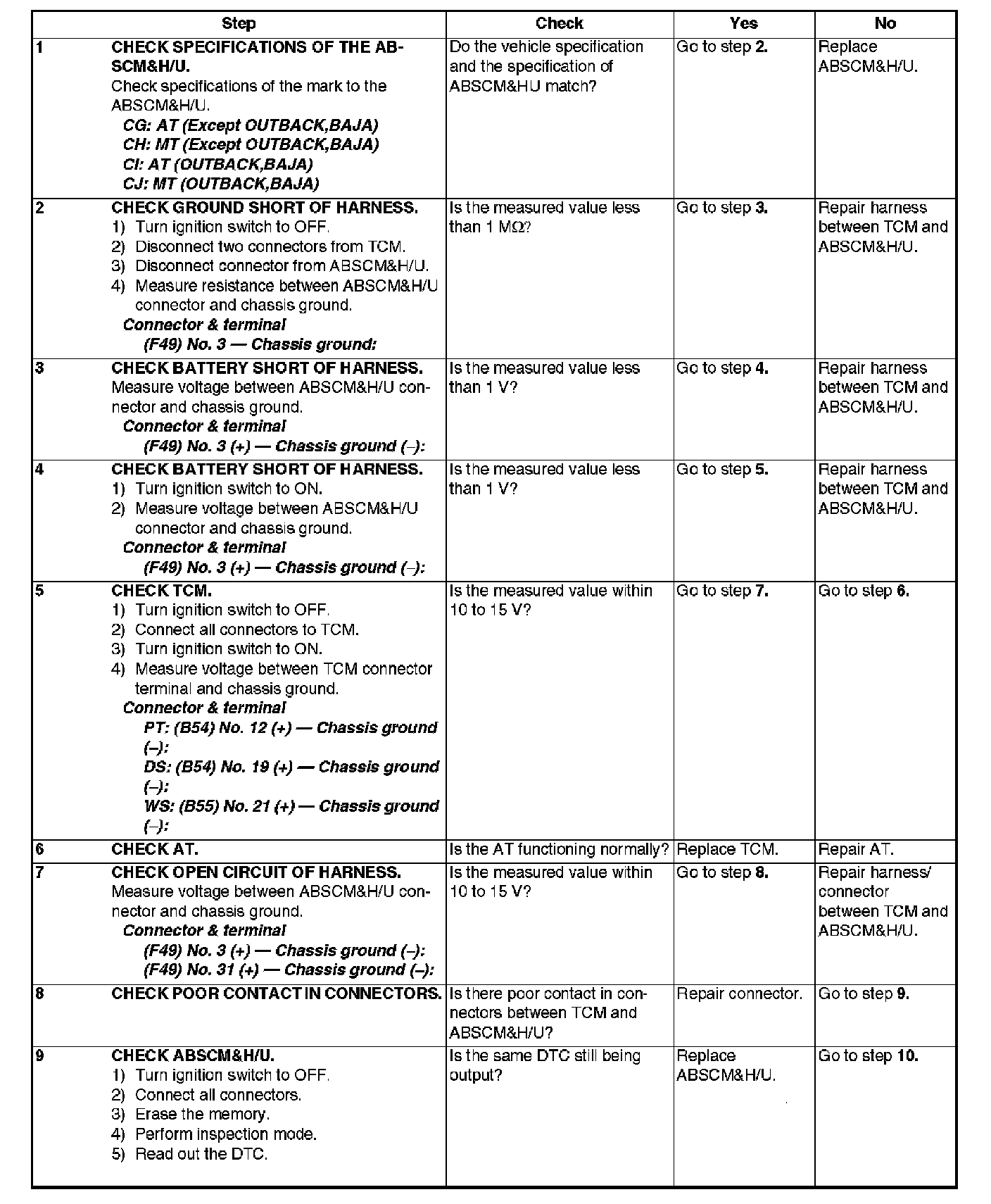

Steps 1-9:

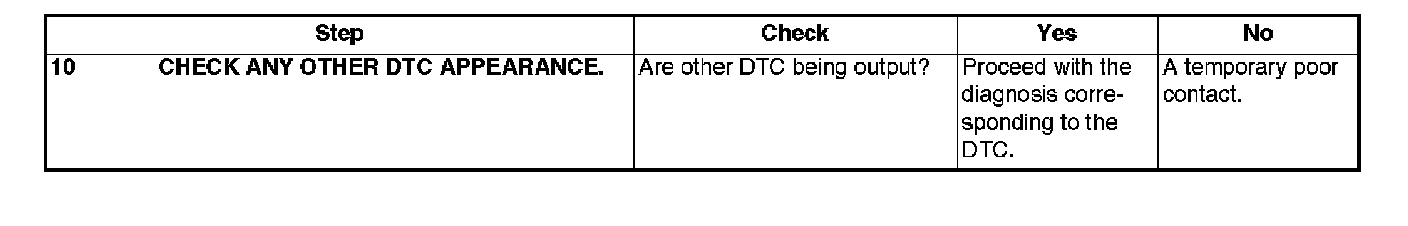

Step 10:

DIAGNOSIS:
^ Combination of AT control faults

TROUBLE SYMPTOM:
^ ABS does not operate.

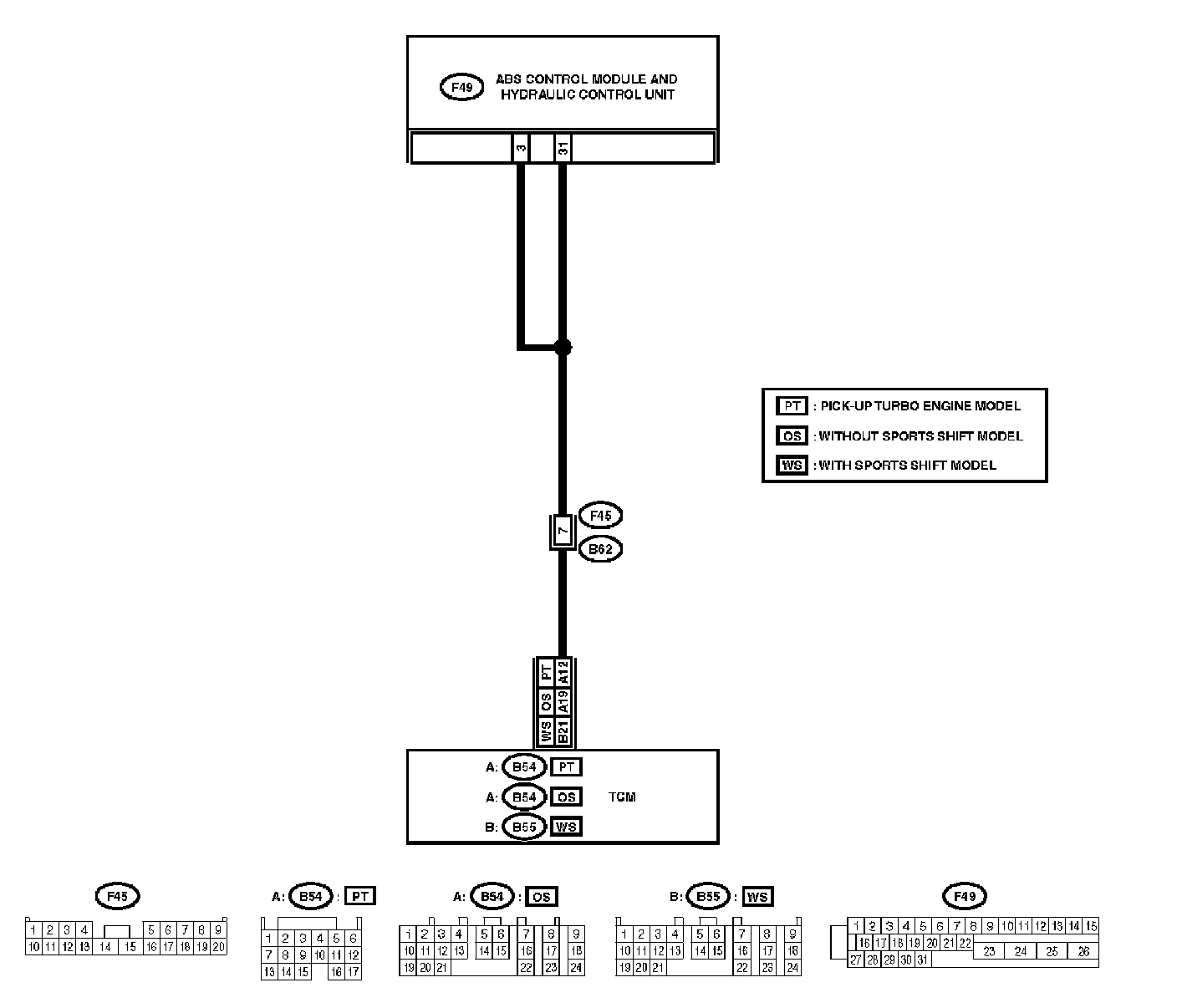

WIRING DIAGRAM
