AET Communication Line Malfunction

DTC 43 AET COMMUNICATION LINE MALFUNCTION

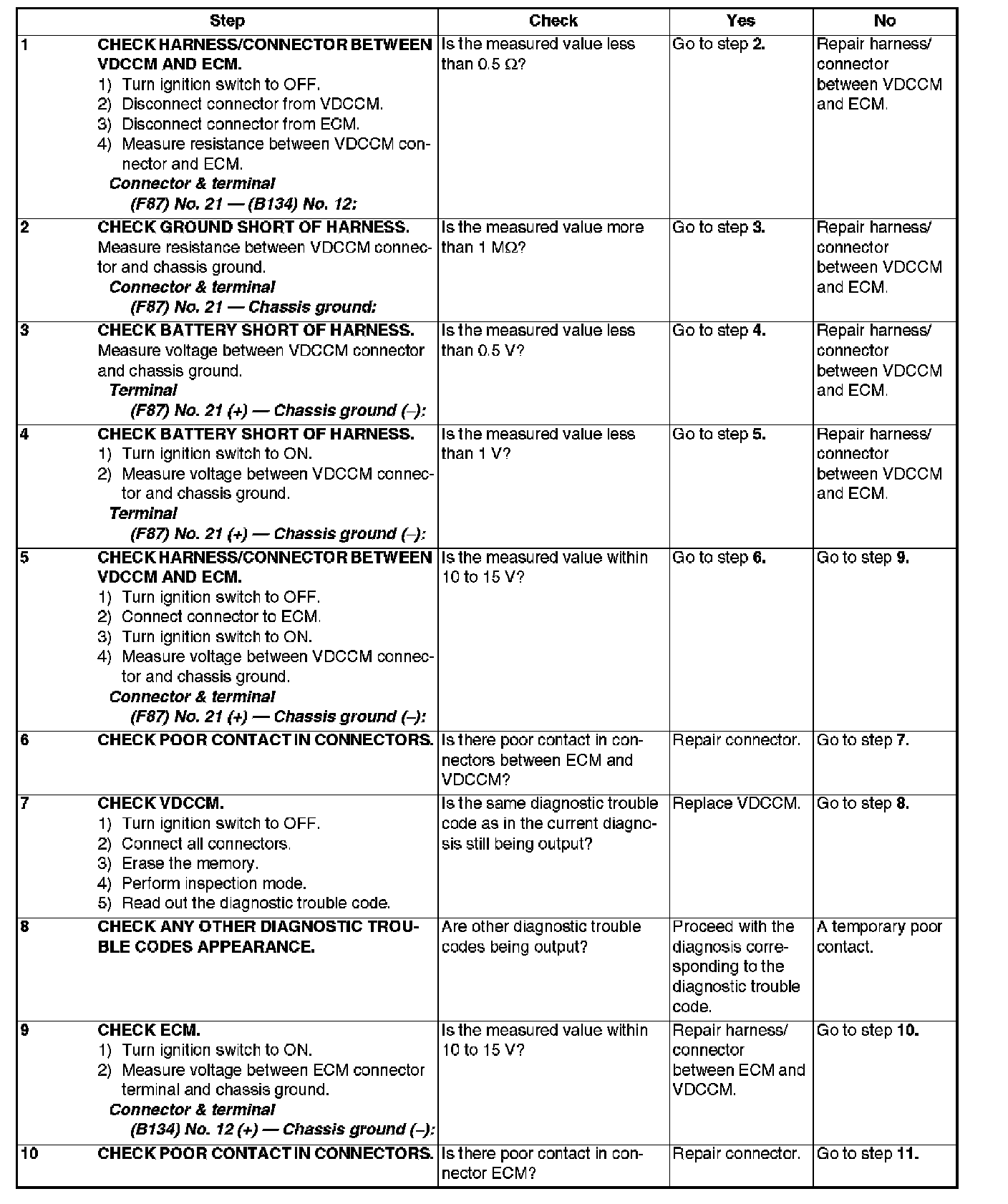

Steps 1-10:

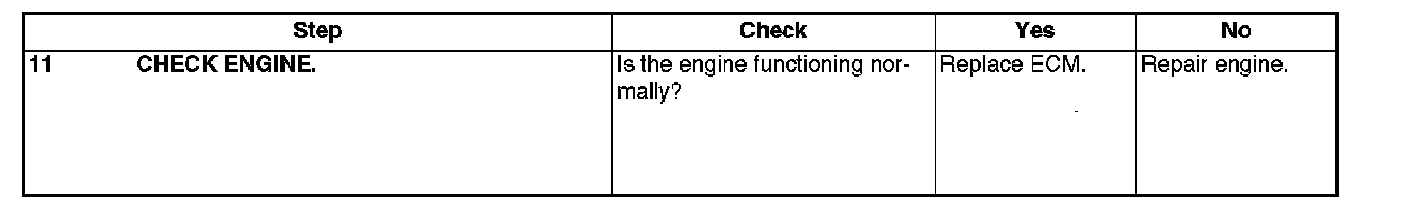

Step 11:

DIAGNOSIS:
^ AET communication line is broken or short circuited.

TROUBLE SYMPTOM:
^ VDC does not operate.

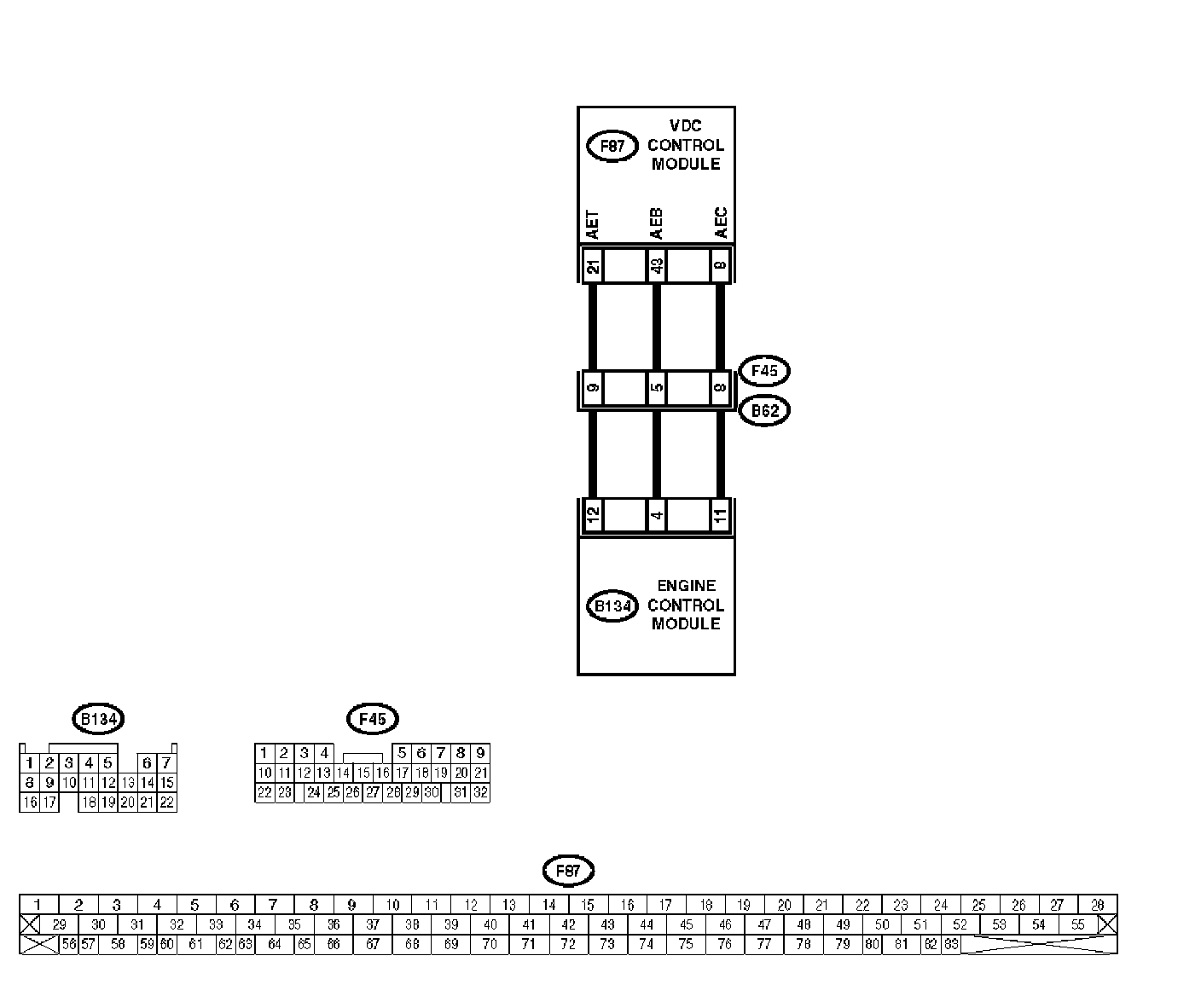

WIRING DIAGRAM
