AEC Communication Line Malfunction

DTC 43 AEC COMMUNICATION LINE MALFUNCTION

Steps 1-10:

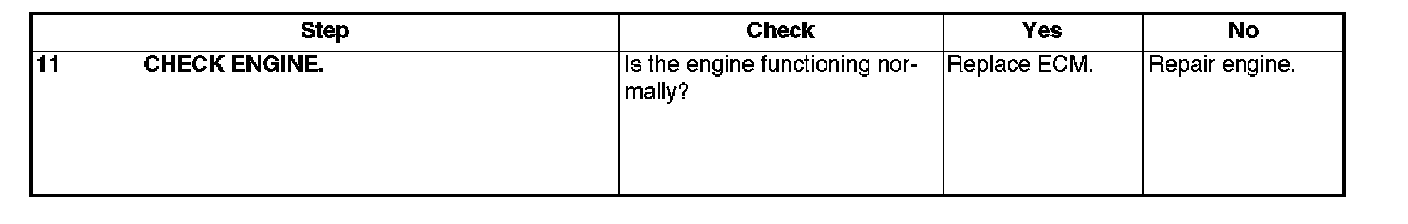

Step 11:

DIAGNOSIS:
^ AEC communication line is broken or short circuited.

TROUBLE SYMPTOM:
^ VDC does not operate.

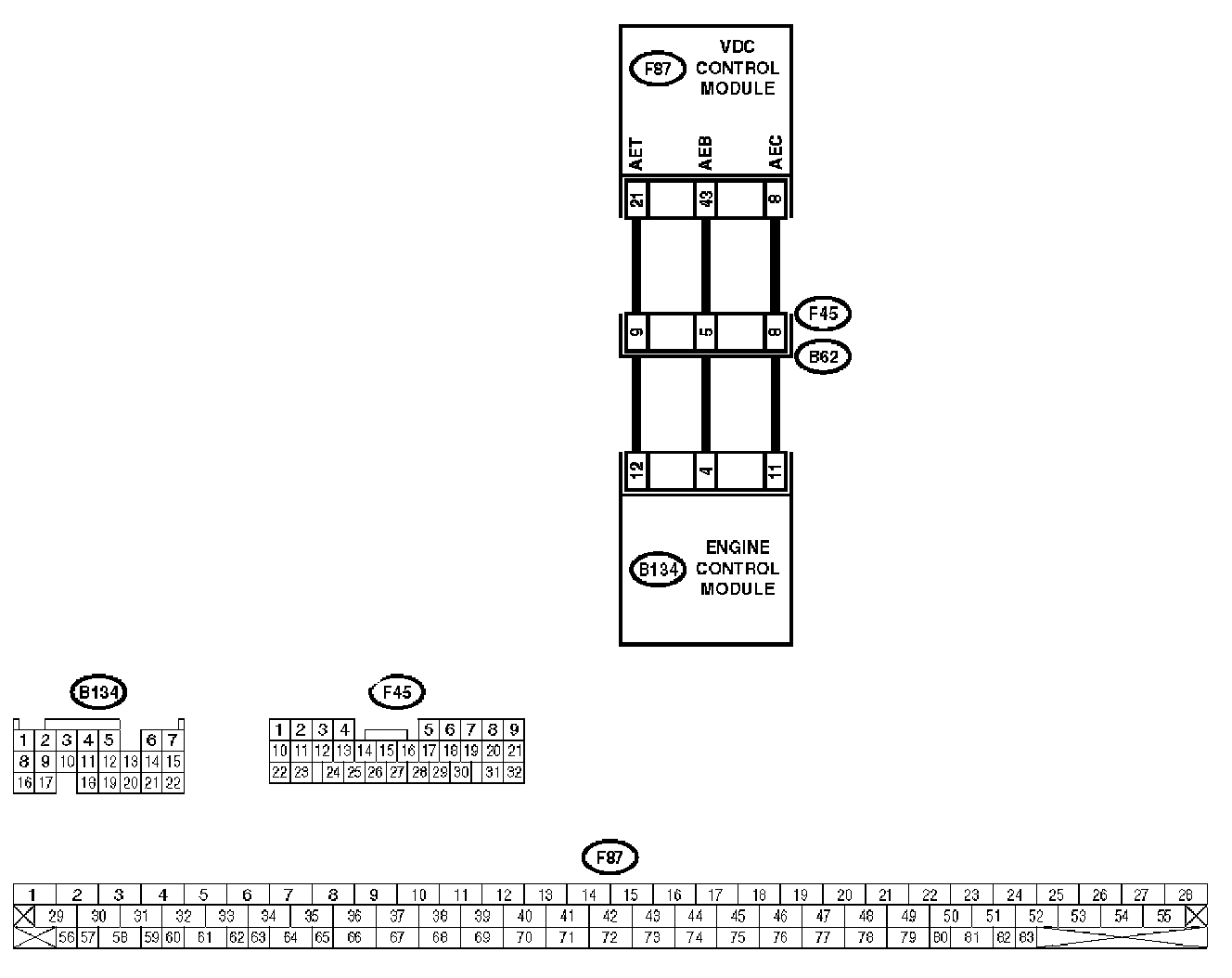

WIRING DIAGRAM
