Vdc System Trouble Code Charts For Warning Light Codes

DTC 41 ABNORMAL VDC CONTROL MODULE

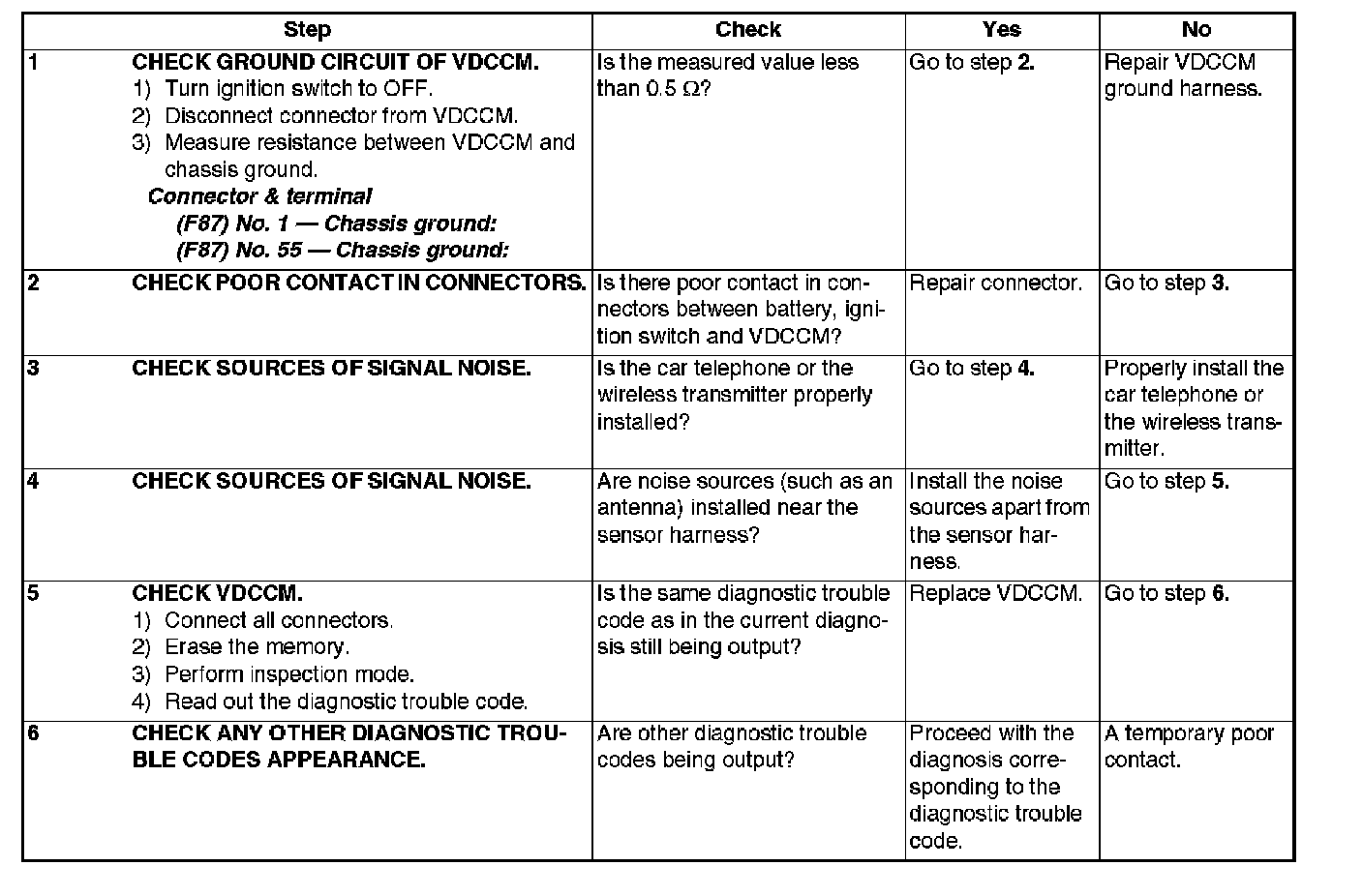

Steps 1-6:

DIAGNOSIS:
^ Faulty VDCCM TROUBLE SYMPTOM.
^ ABS does not operate.
^ VDC does not operate.

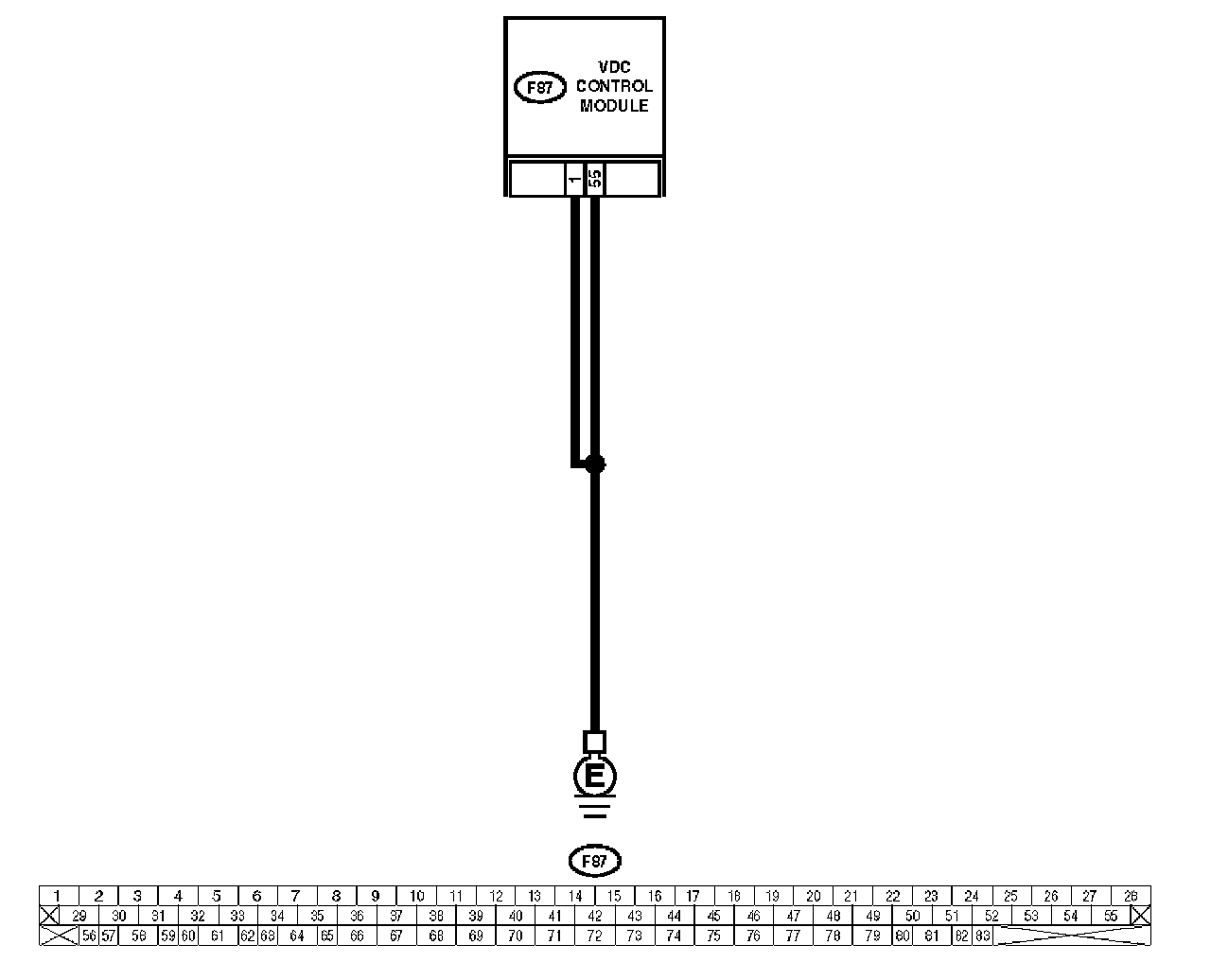

WIRING DIAGRAM
