ABS Trouble Code Charts For Select Monitor Results

DTC 41 ABS CONTROL MODULE MALFUNCTION

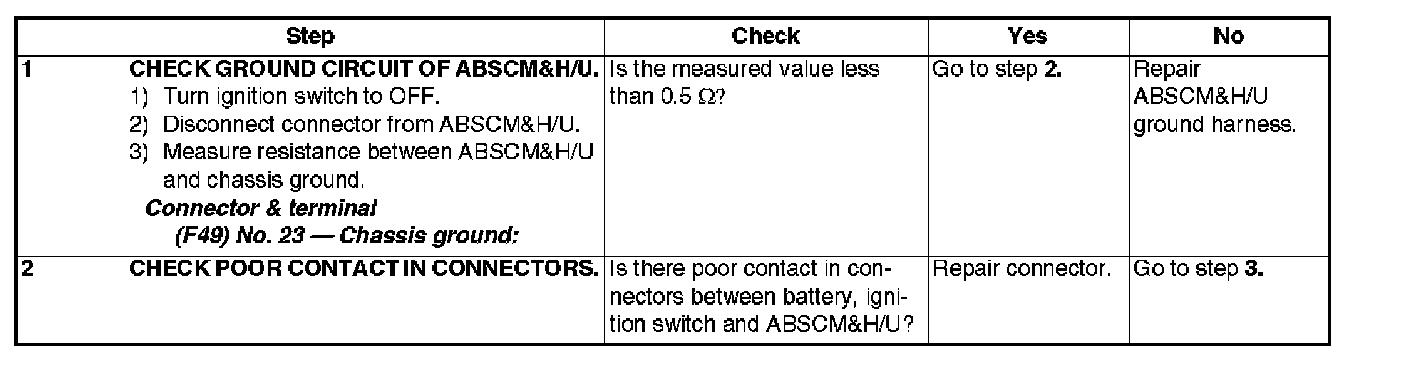

Steps 1 & 2:

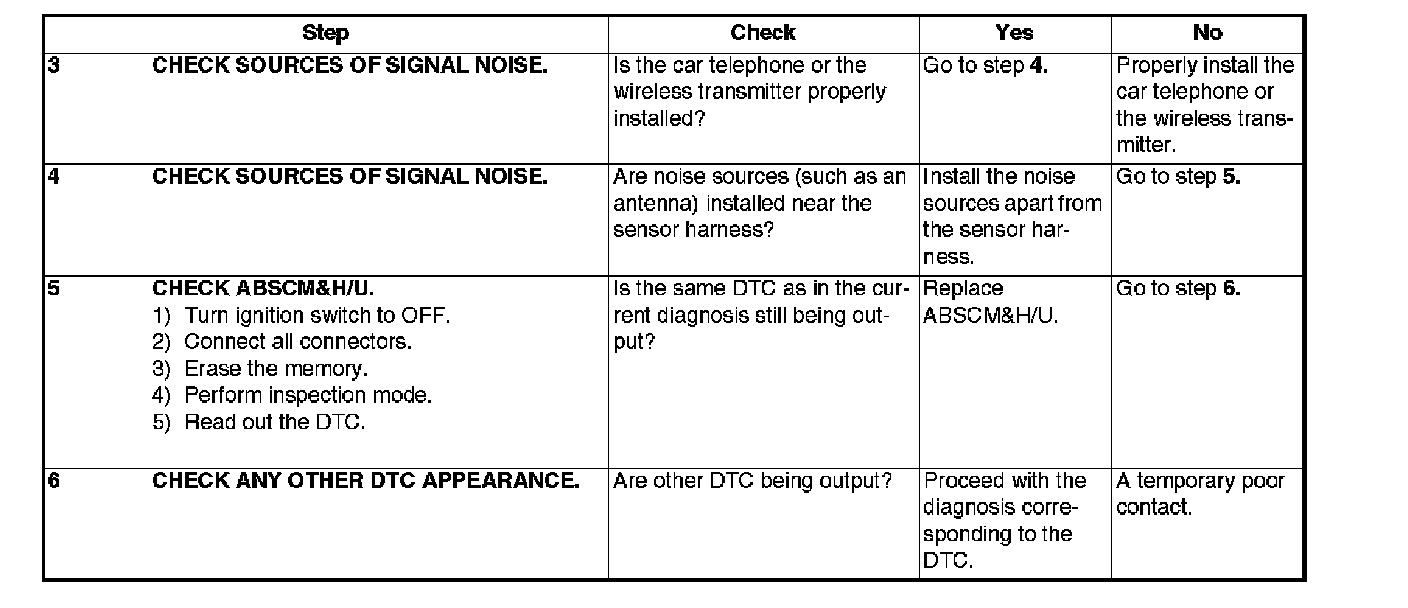

Steps 3-6:

DIAGNOSIS:
^ Faulty ABSCM&H/U

TROUBLE SYMPTOM:
^ ABS does not operate.

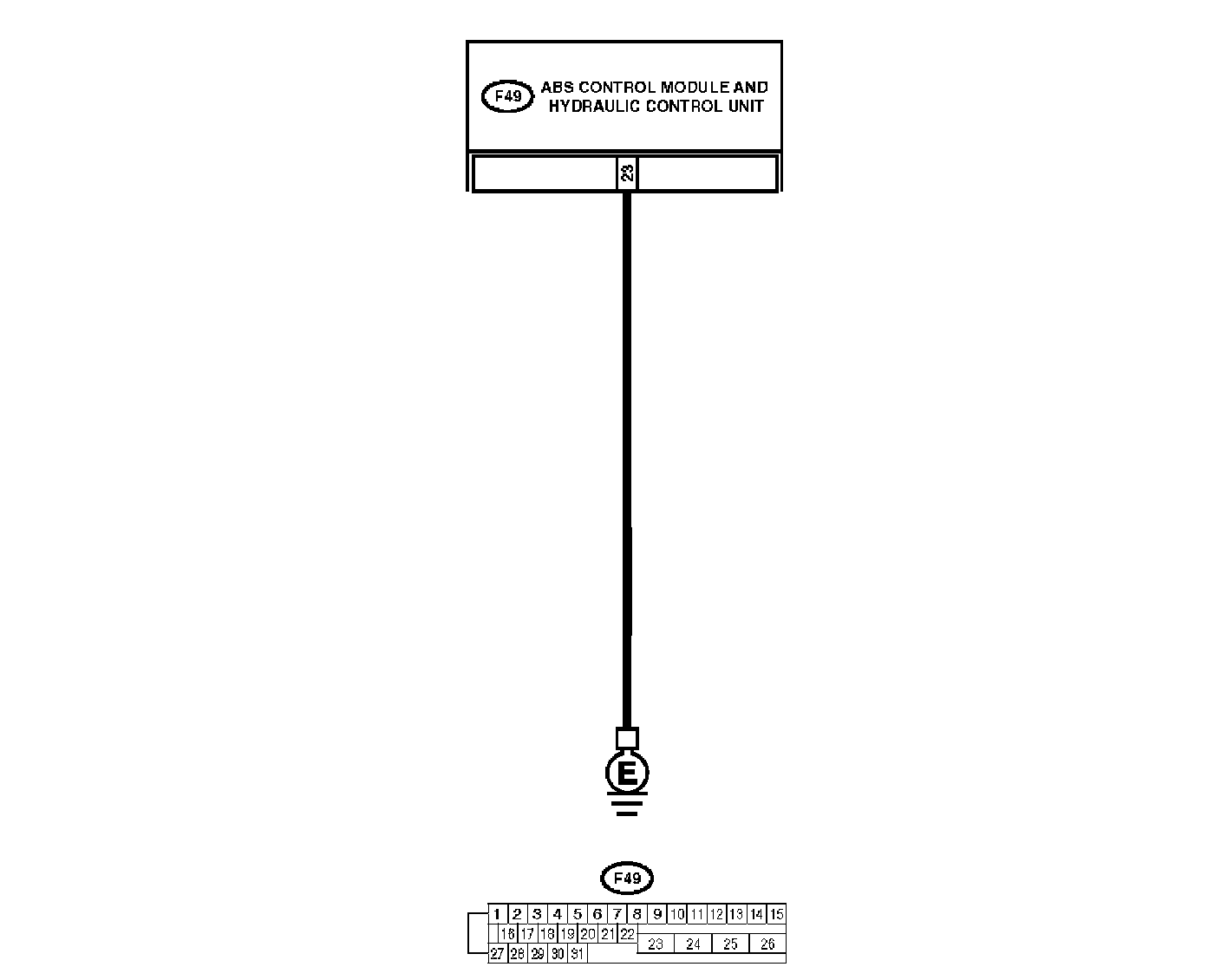

WIRING DIAGRAM
