Vdc System Trouble Code Charts For Warning Light Codes

DTC 29 ABNORMAL ABS SENSOR SIGNAL (ANY ONE OF FOUR)

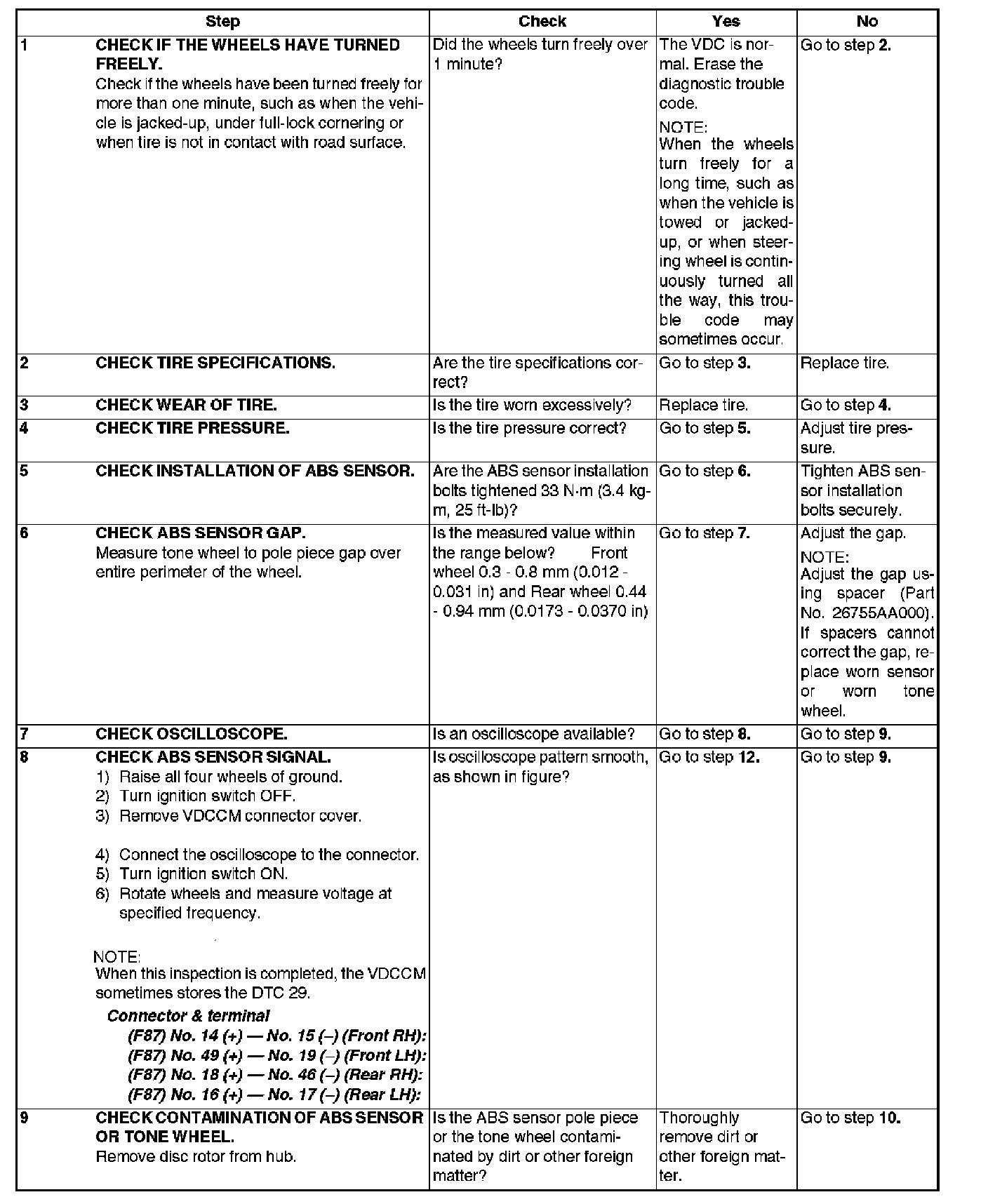

Steps 1-9:

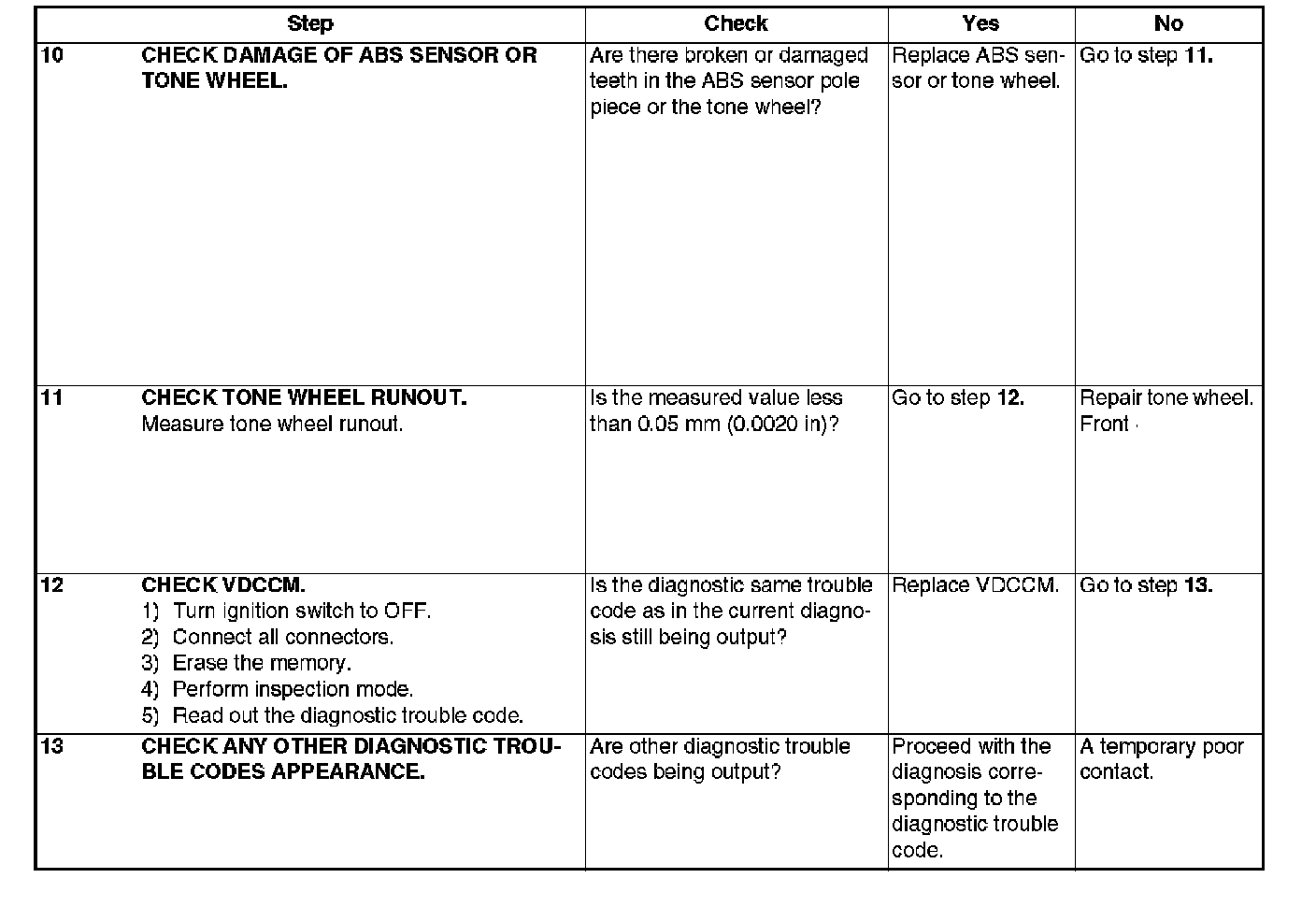

Steps 10-13:

DIAGNOSIS:
^ Faulty ABS sensor signal (noise, irregular signal, etc.)
^ Faulty tone wheel
^ Wheels turning freely for a long time

TROUBLE SYMPTOM:
^ ABS does not operate.
^ VDC does not operate.

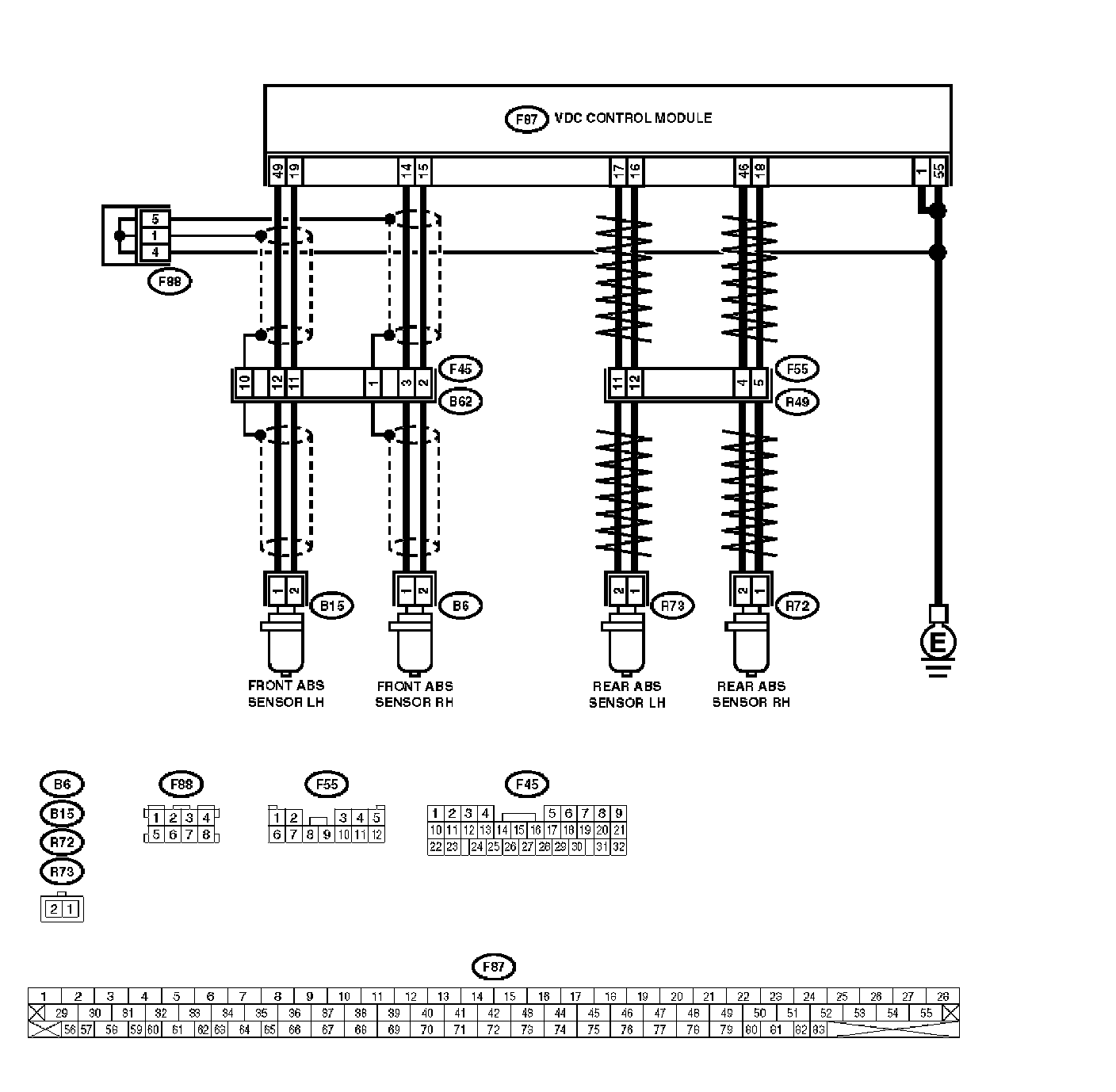

WIRING DIAGRAM
