ABS Trouble Code Charts For Select Monitor Results

DTC 29 ABNORMAL ABS SENSOR SIGNAL ON ANY ONE OF FOUR SENSOR

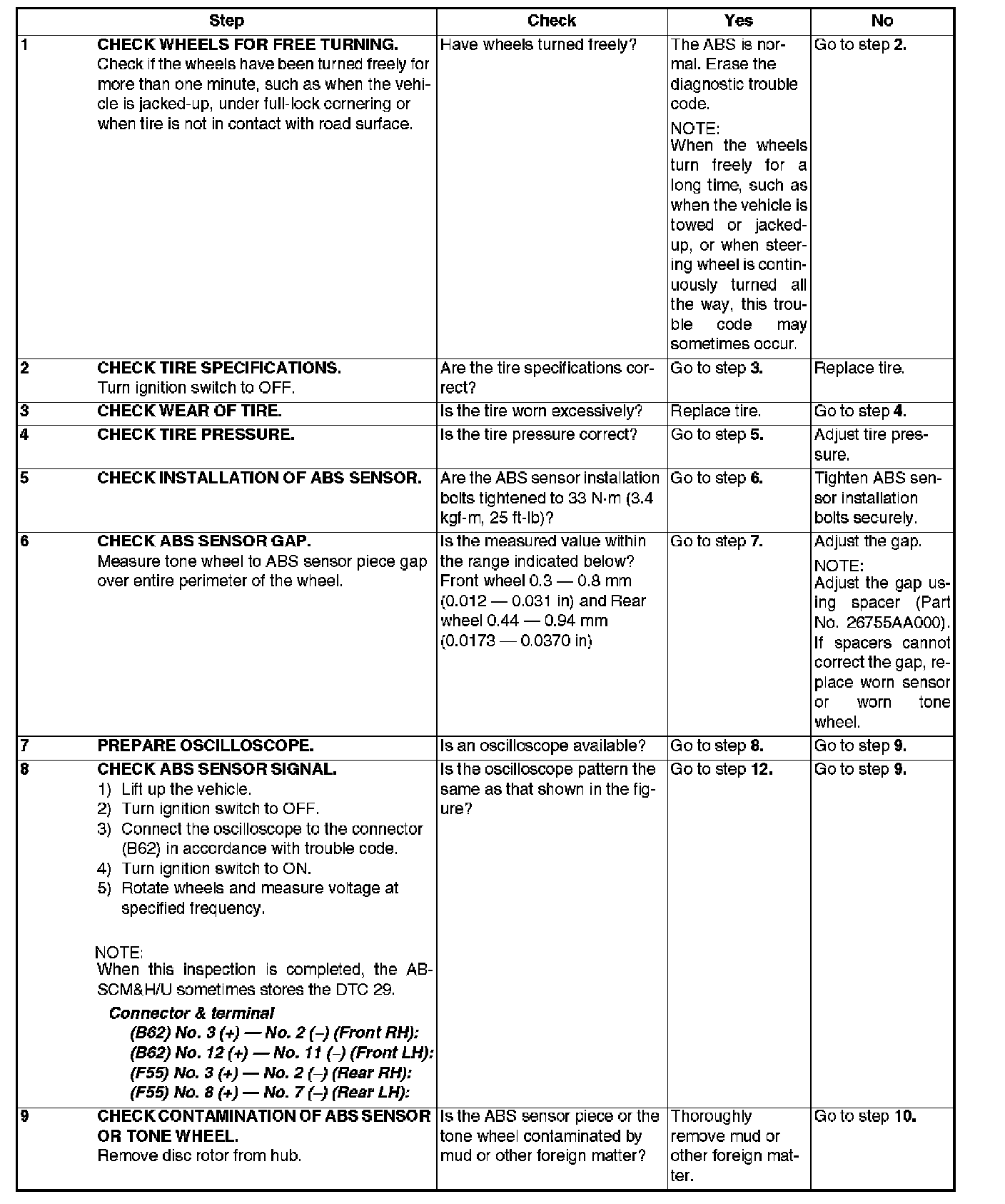

Steps 1-9:

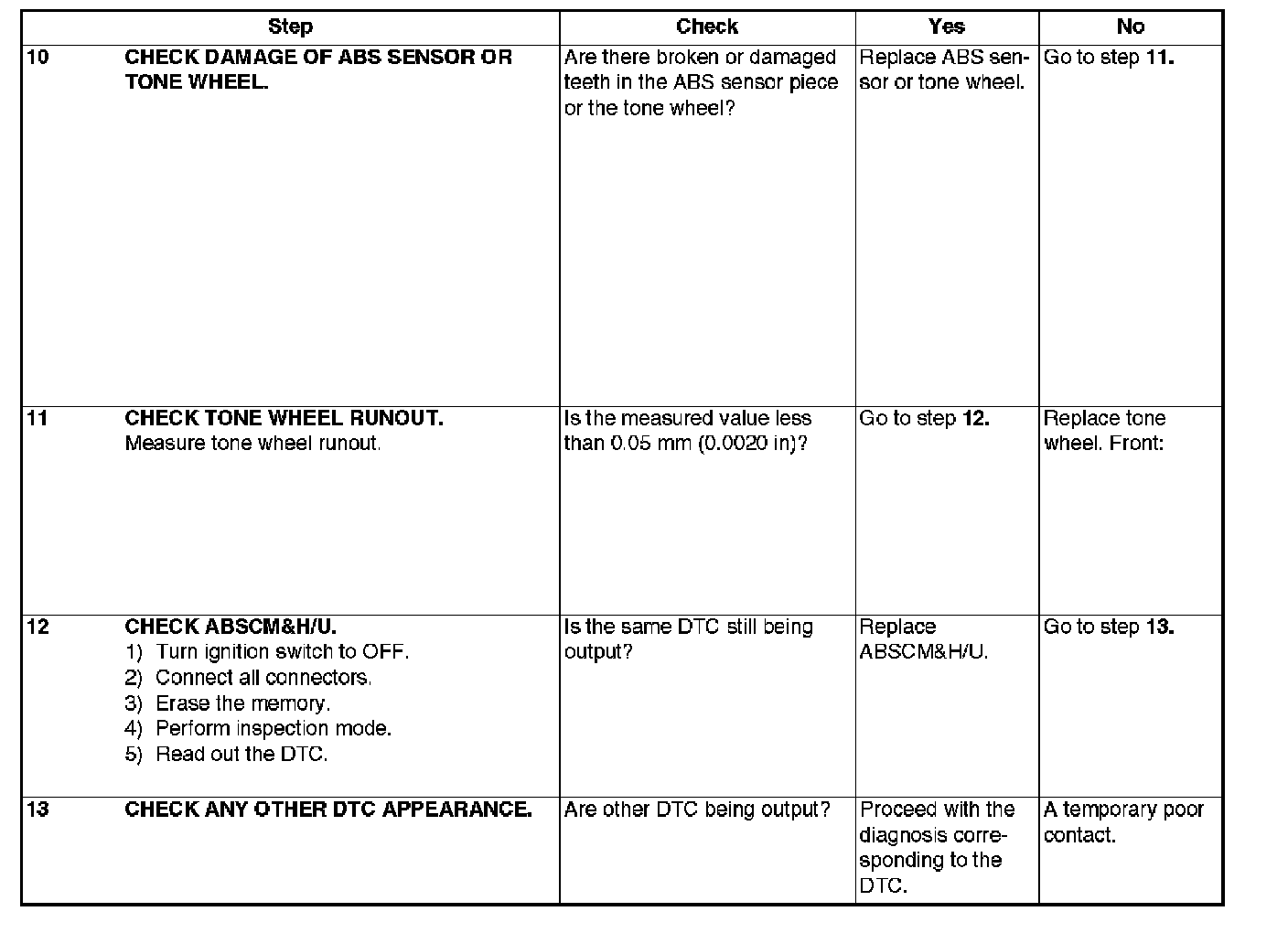

Steps 10-13:

DIAGNOSIS:
^ Faulty ABS sensor signal (noise, irregular signal, etc.)
^ Faulty tone wheel
^ Wheels turning freely for a long time

TROUBLE SYMPTOM:
^ ABS does not operate.

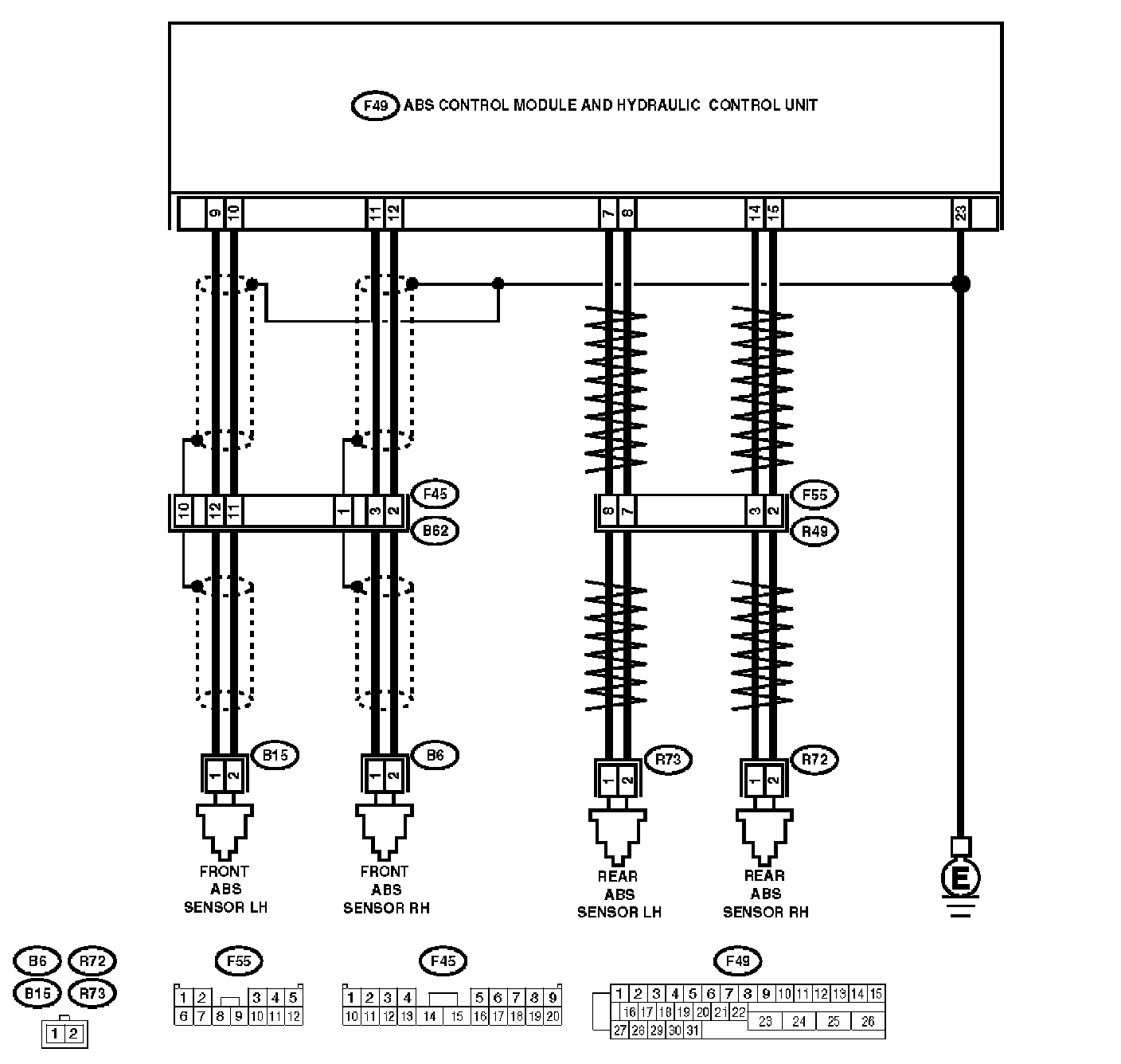

WIRING DIAGRAM
