Vdc System Trouble Code Charts For Select Monitor Results

DTC 28 REAR LEFT ABS SENSOR SIGNAL

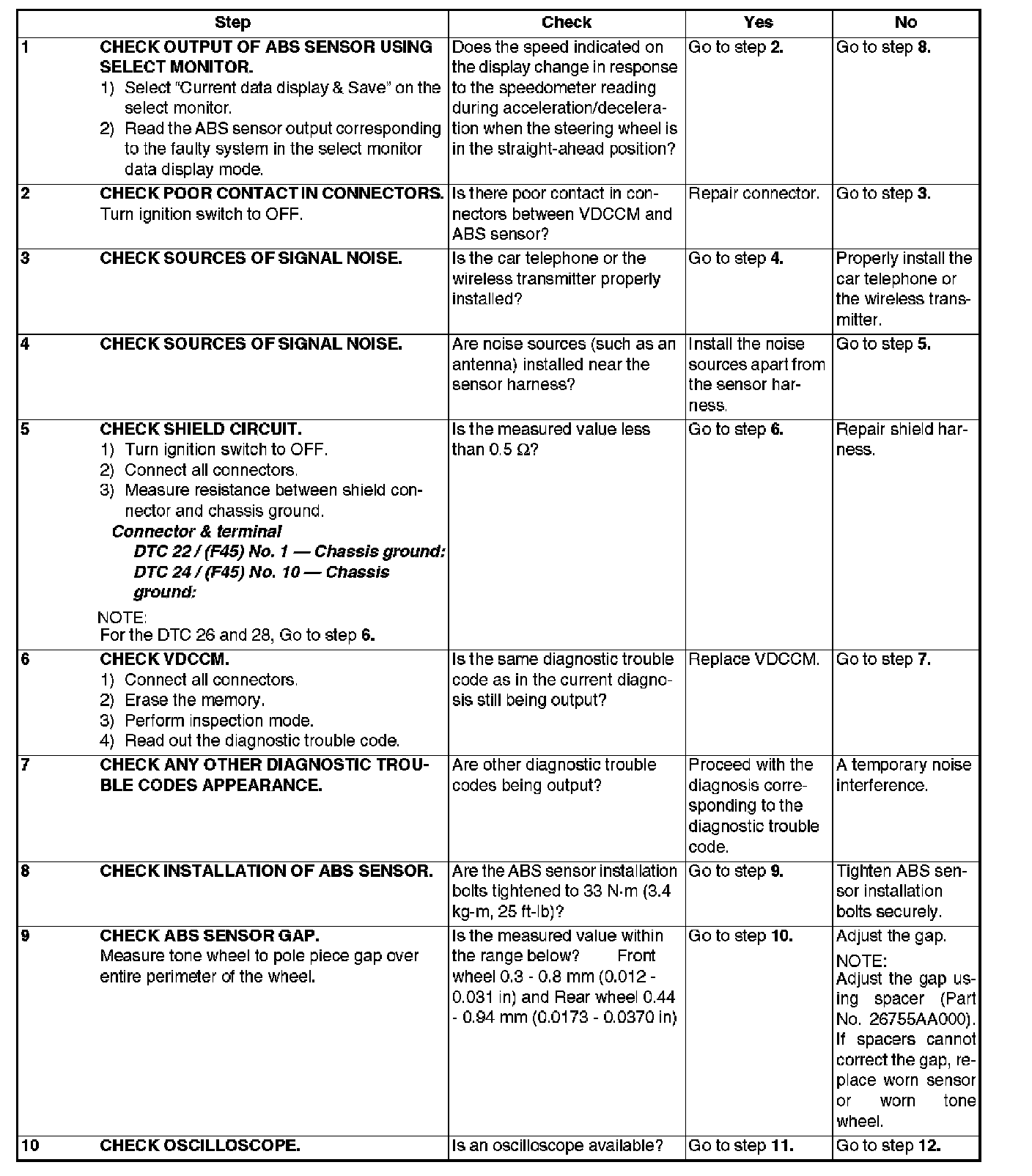

Steps 1-10:

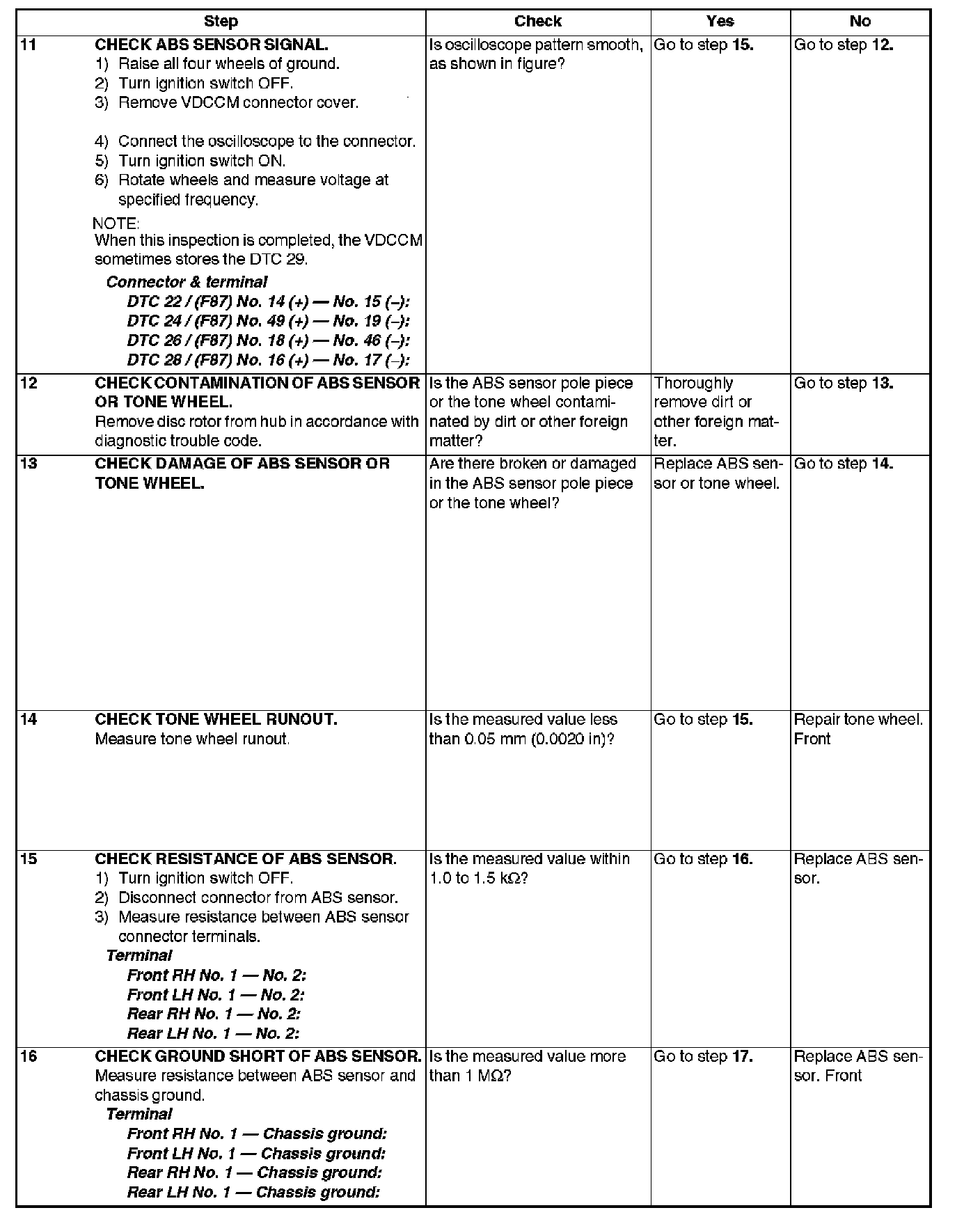

Steps 11-16:

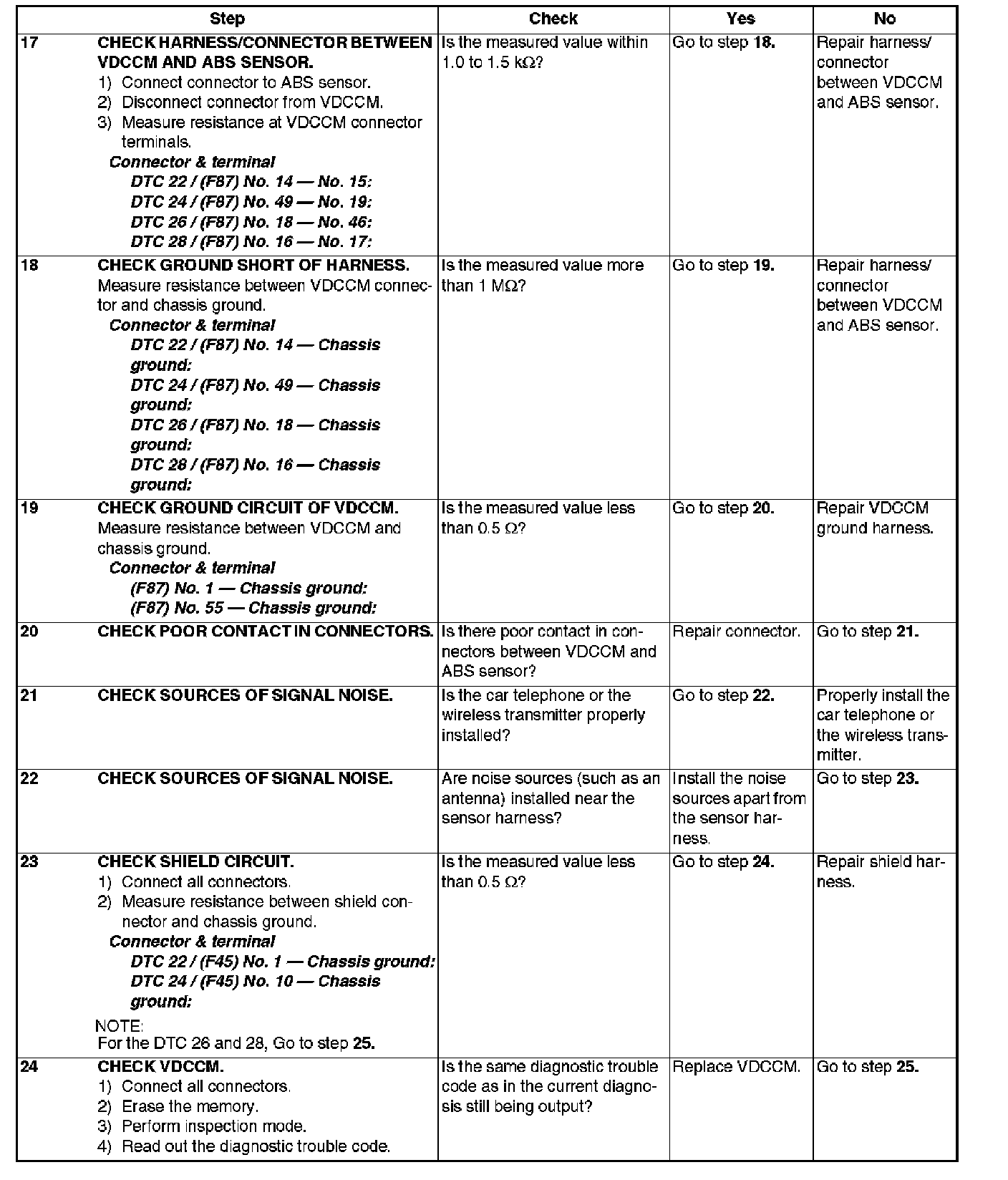

Steps 17-24:

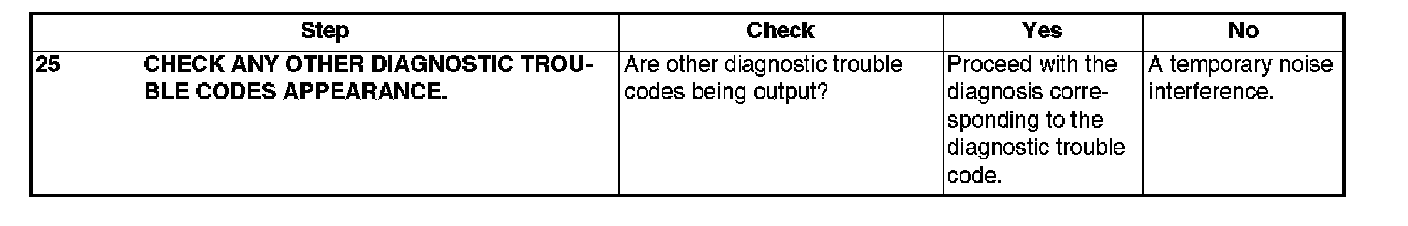

Step 25:

DIAGNOSIS:
^ Faulty ABS sensor signal (noise, irregular signal)
^ Faulty harness/connector

TROUBLE SYMPTOM:
^ ABS does not operate.
^ VDC does not operate.

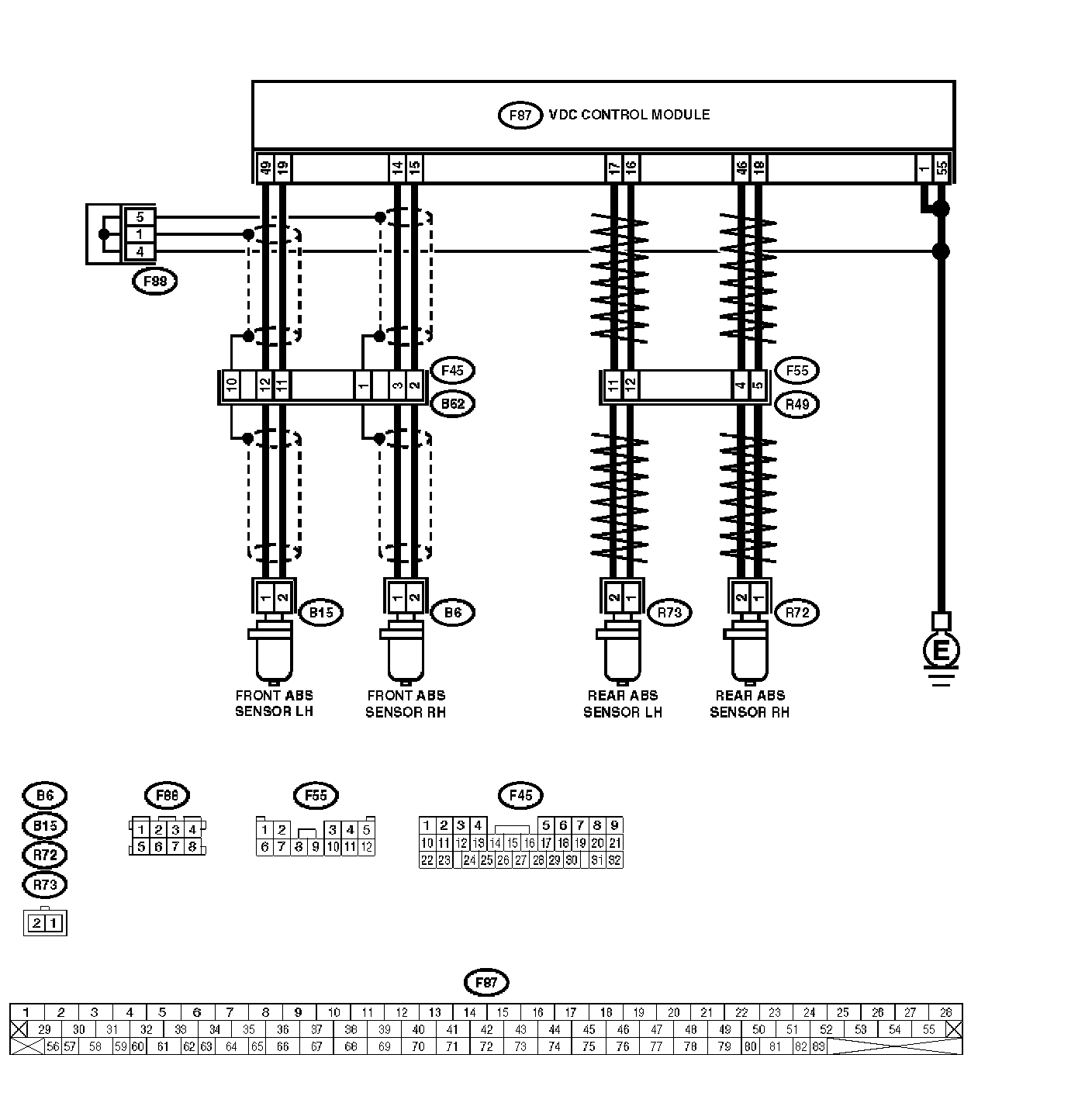

WIRING DIAGRAM
