ABS Trouble Code Charts For Warning Light Codes

DTC 28 ABNORMAL ABS SENSOR (REAR LH)

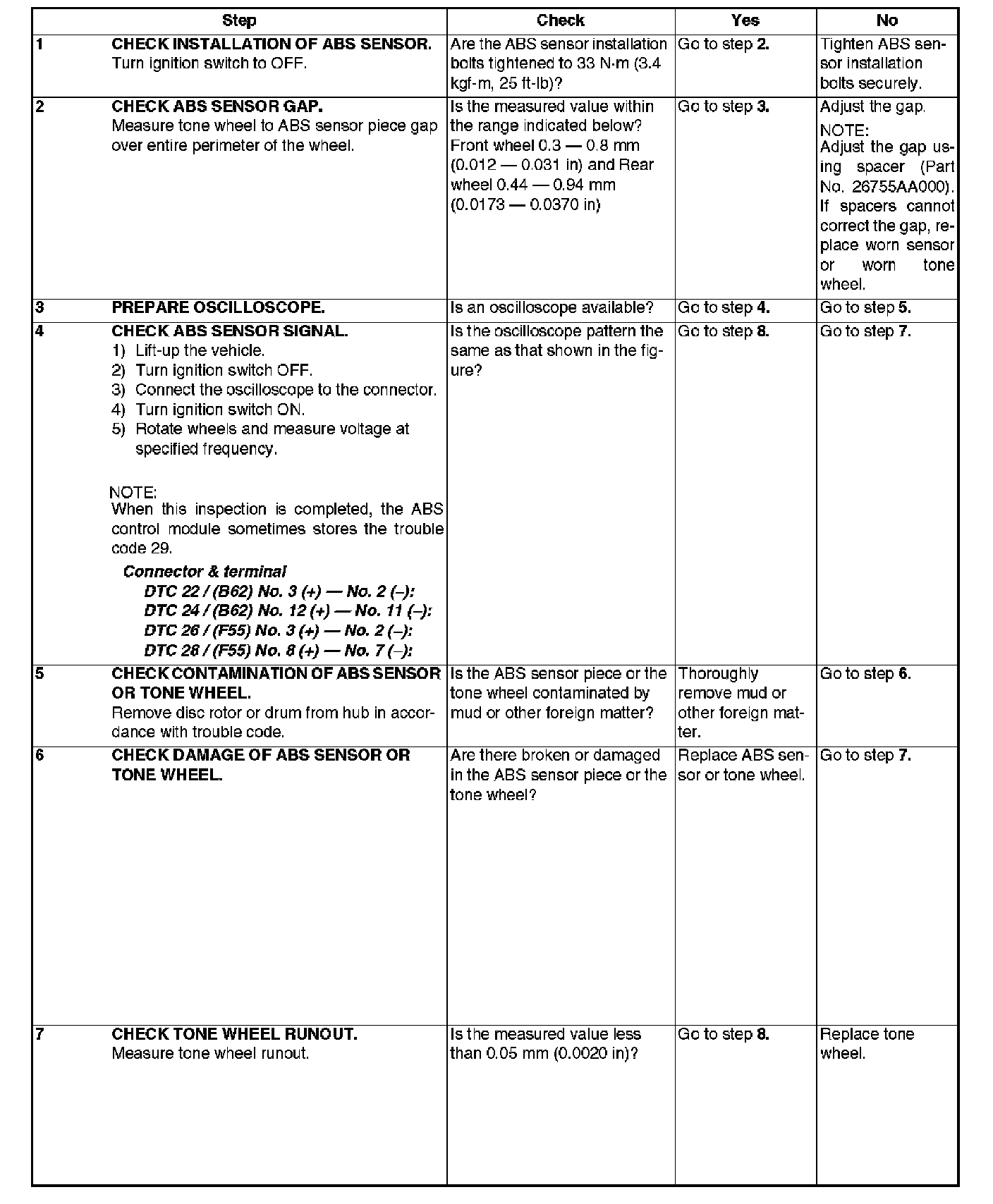

Steps 1-7:

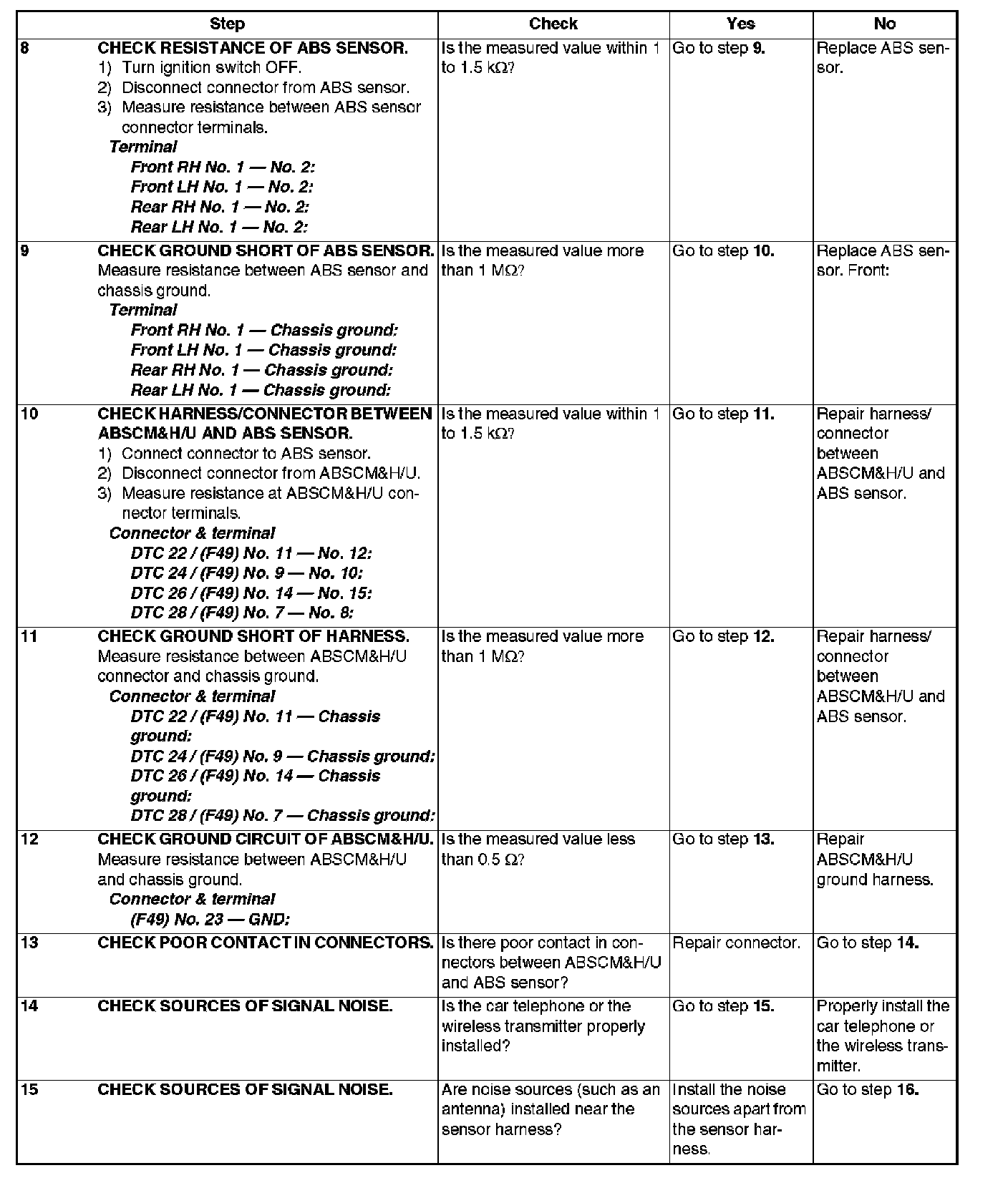

Steps 8-15:

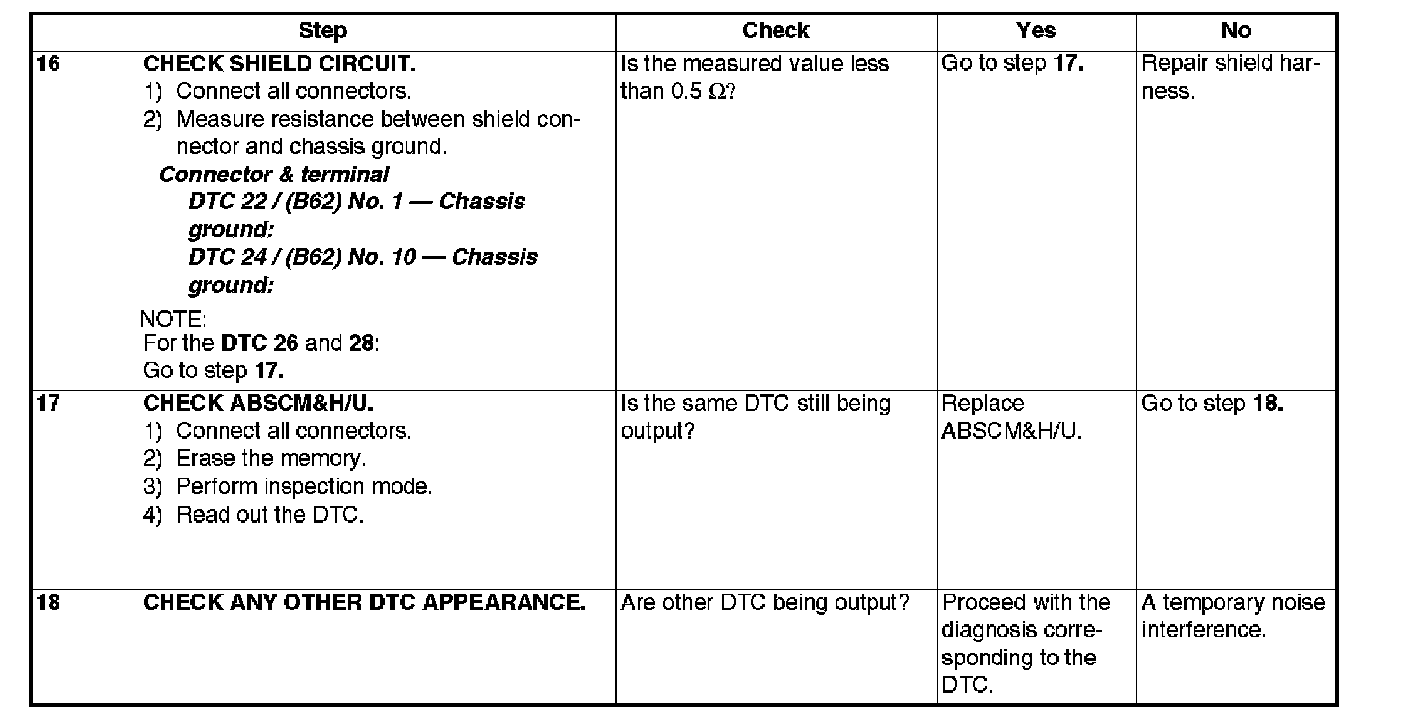

Steps 16-18:

DIAGNOSIS:
^ Faulty ABS sensor signal (noise, irregular signal, etc.)
^ Faulty harness/connector

TROUBLE SYMPTOM:
^ ABS does not operate.

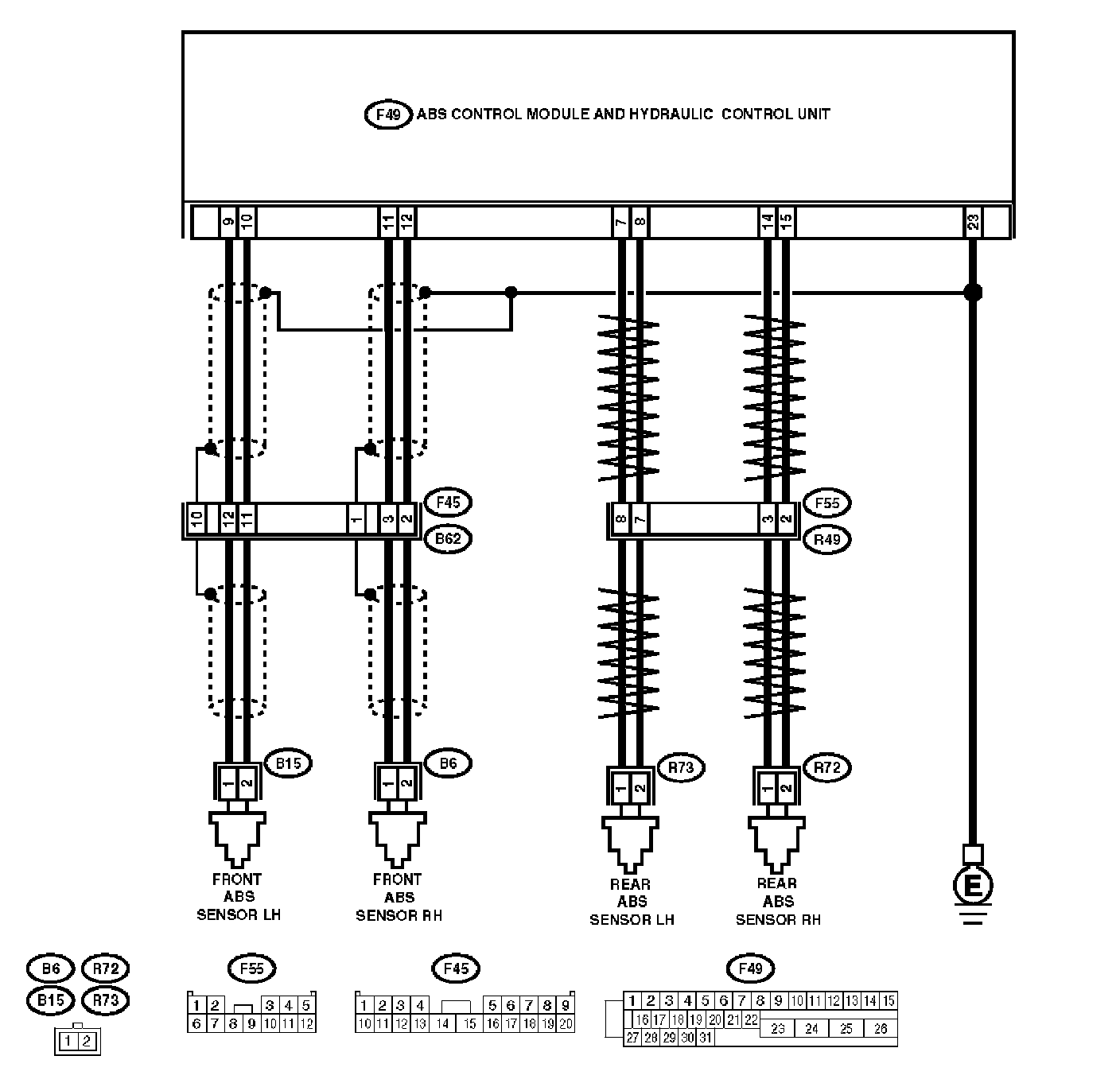

WIRING DIAGRAM
