ABS Trouble Code Charts For Select Monitor Results

DTC 28 REAR LEFT ABNORMAL ABS SENSOR SIGNAL

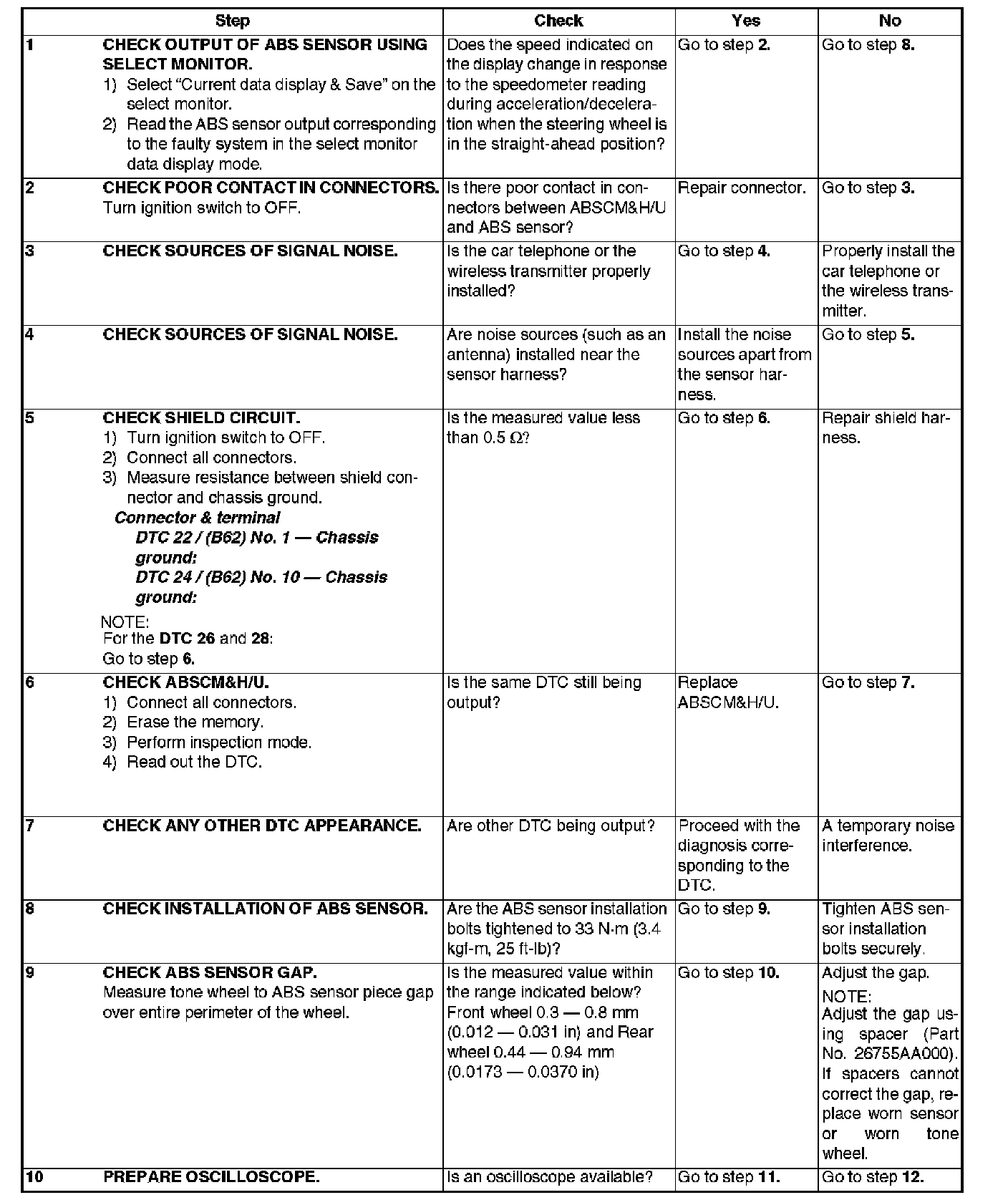

Steps 1-10:

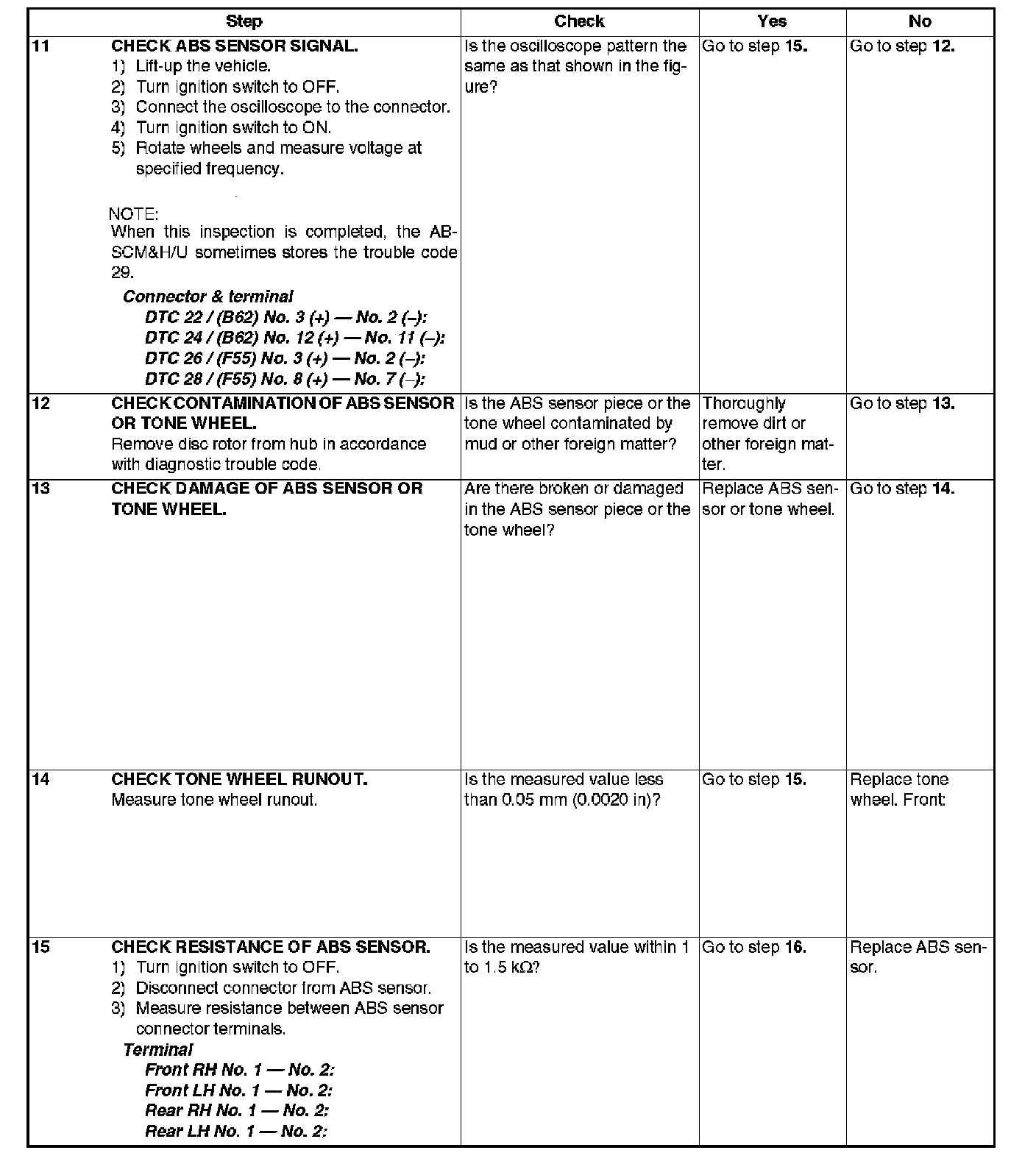

Steps 11-15:

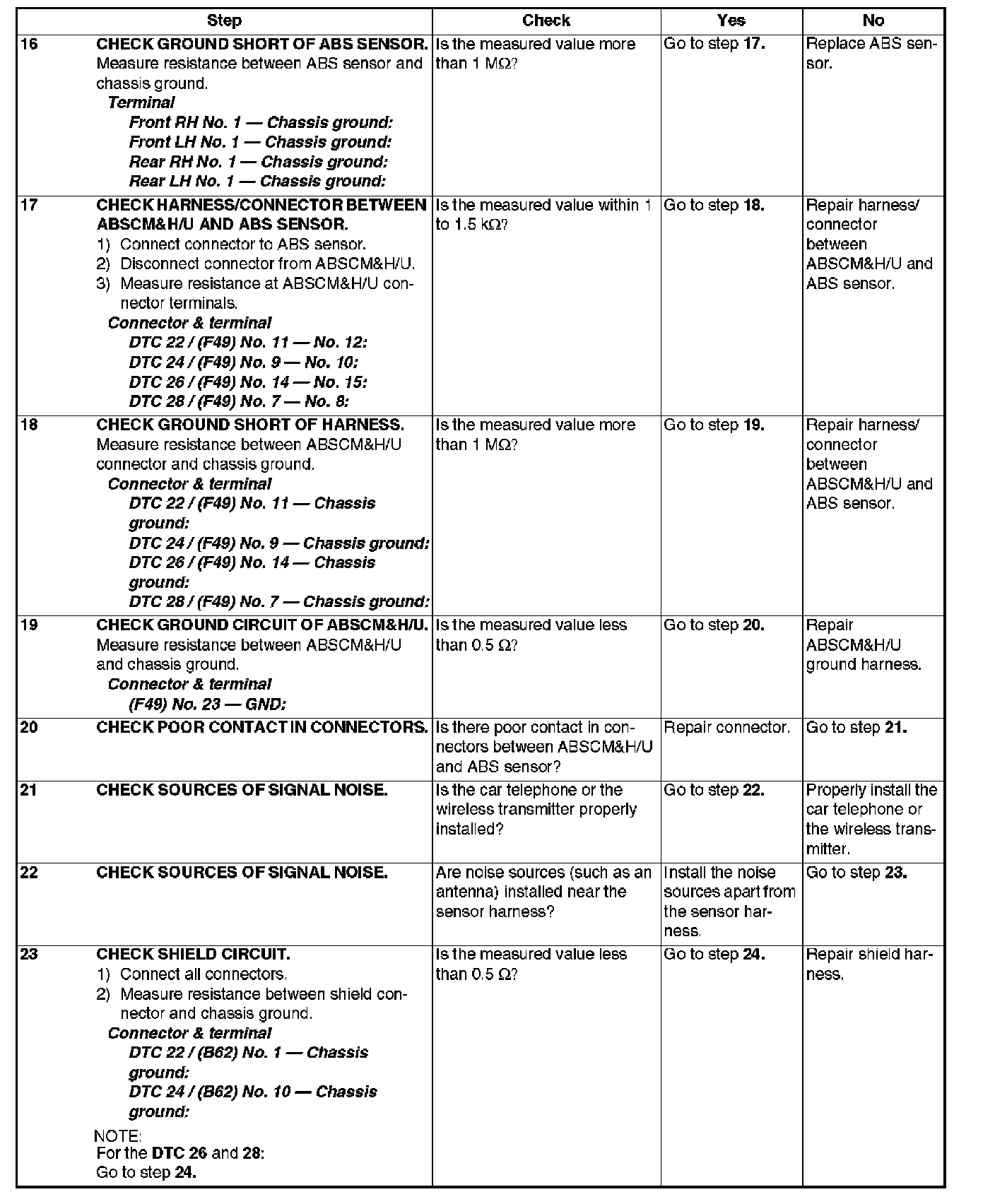

Steps 16-23:

Steps 24 & 25:

DIAGNOSIS:
^ Faulty ABS sensor signal (noise, irregular signal, etc.)
^ Faulty harness/connector

TROUBLE SYMPTOM:
^ ABS does not operate.

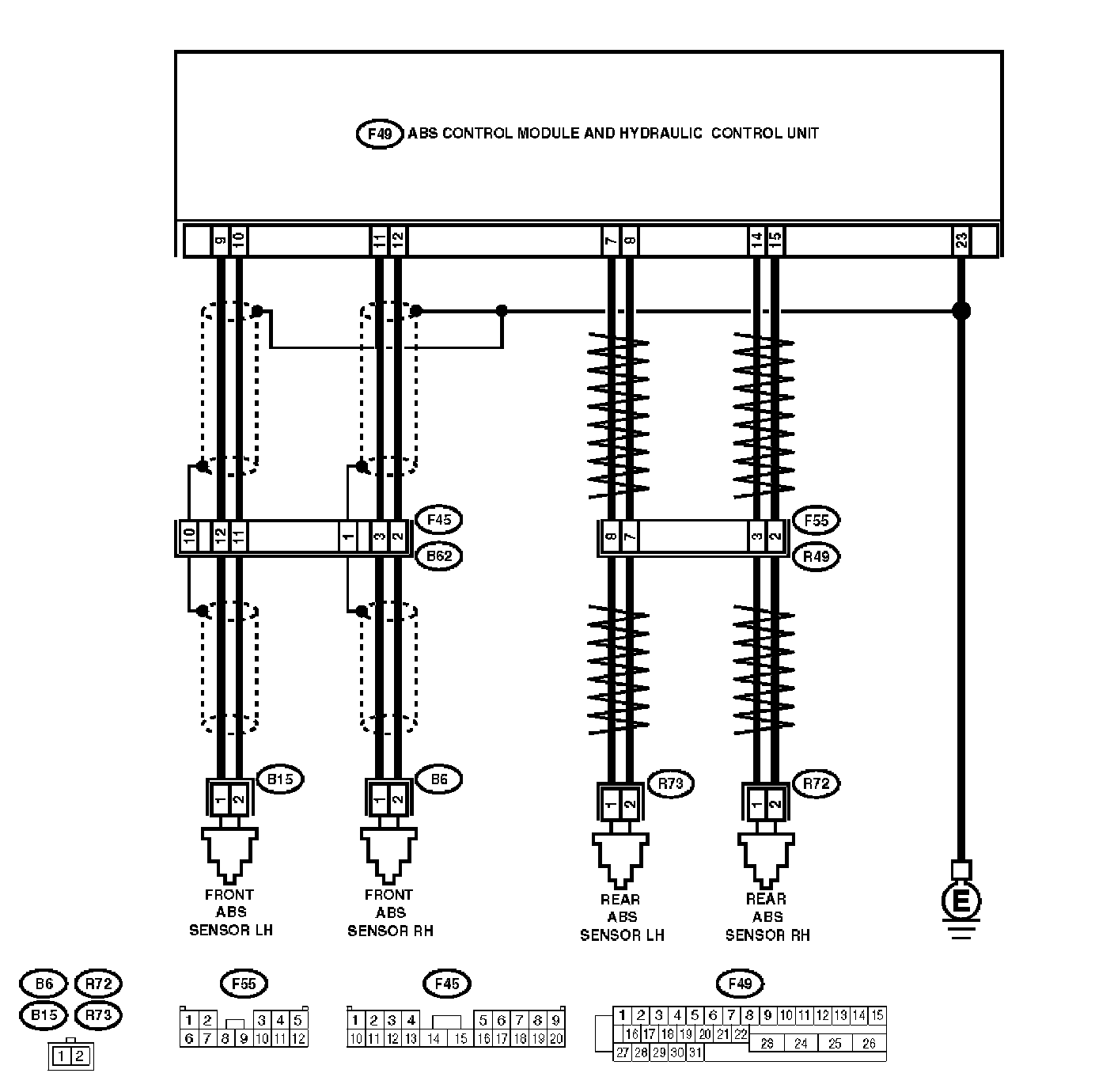

WIRING DIAGRAM
