Vdc System Trouble Code Charts For Warning Light Codes

DTC 27 ABNORMAL ABS SENSOR (OPEN CIRCUIT OR INPUT VOLTAGE TOO HIGH) (REAR LH)

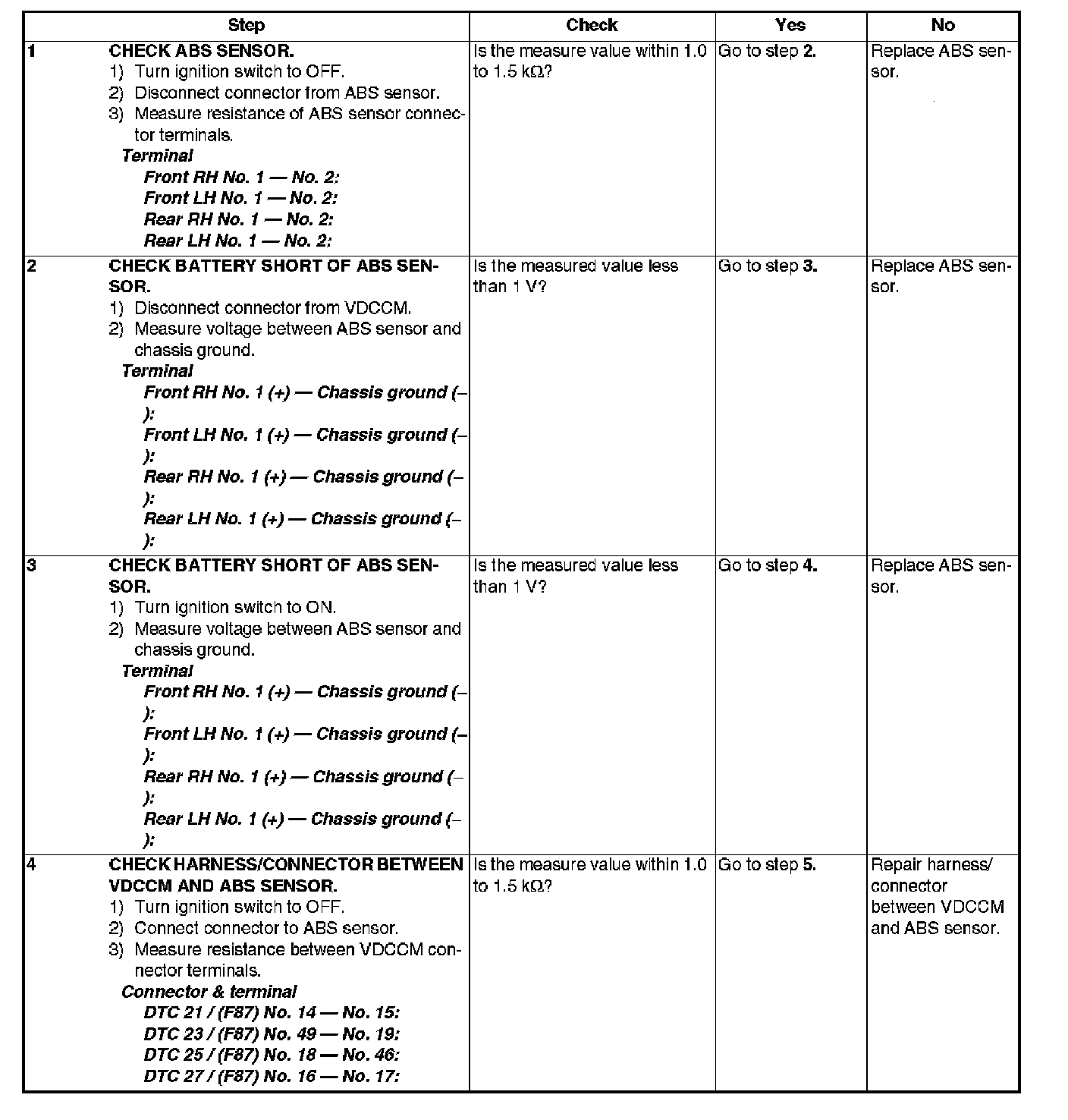

Steps 1-4:

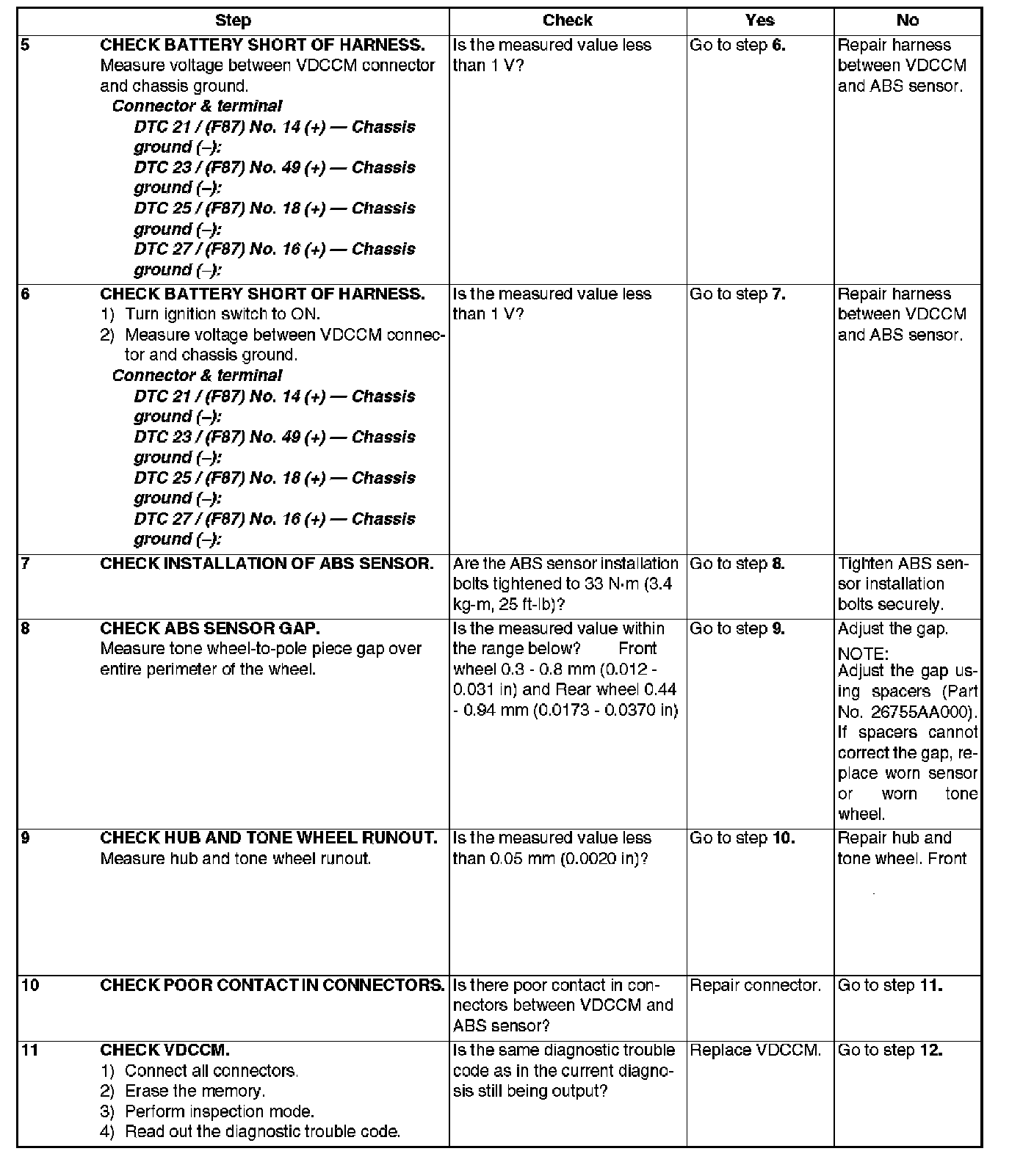

Steps 5-11:

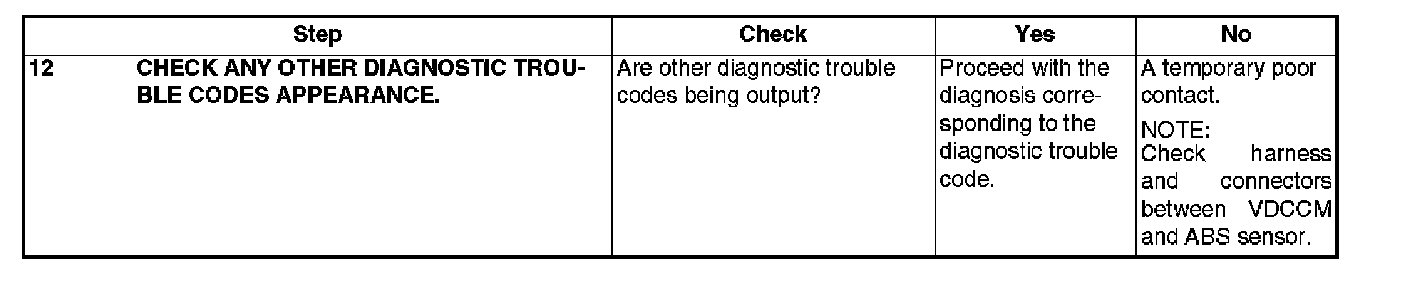

Step 12:

DIAGNOSIS:
^ Faulty ABS sensor (Broken wire, input voltage too high)
^ Faulty harness connector

TROUBLE SYMPTOM:
^ ABS does not operate.
^ VDC does not operate.

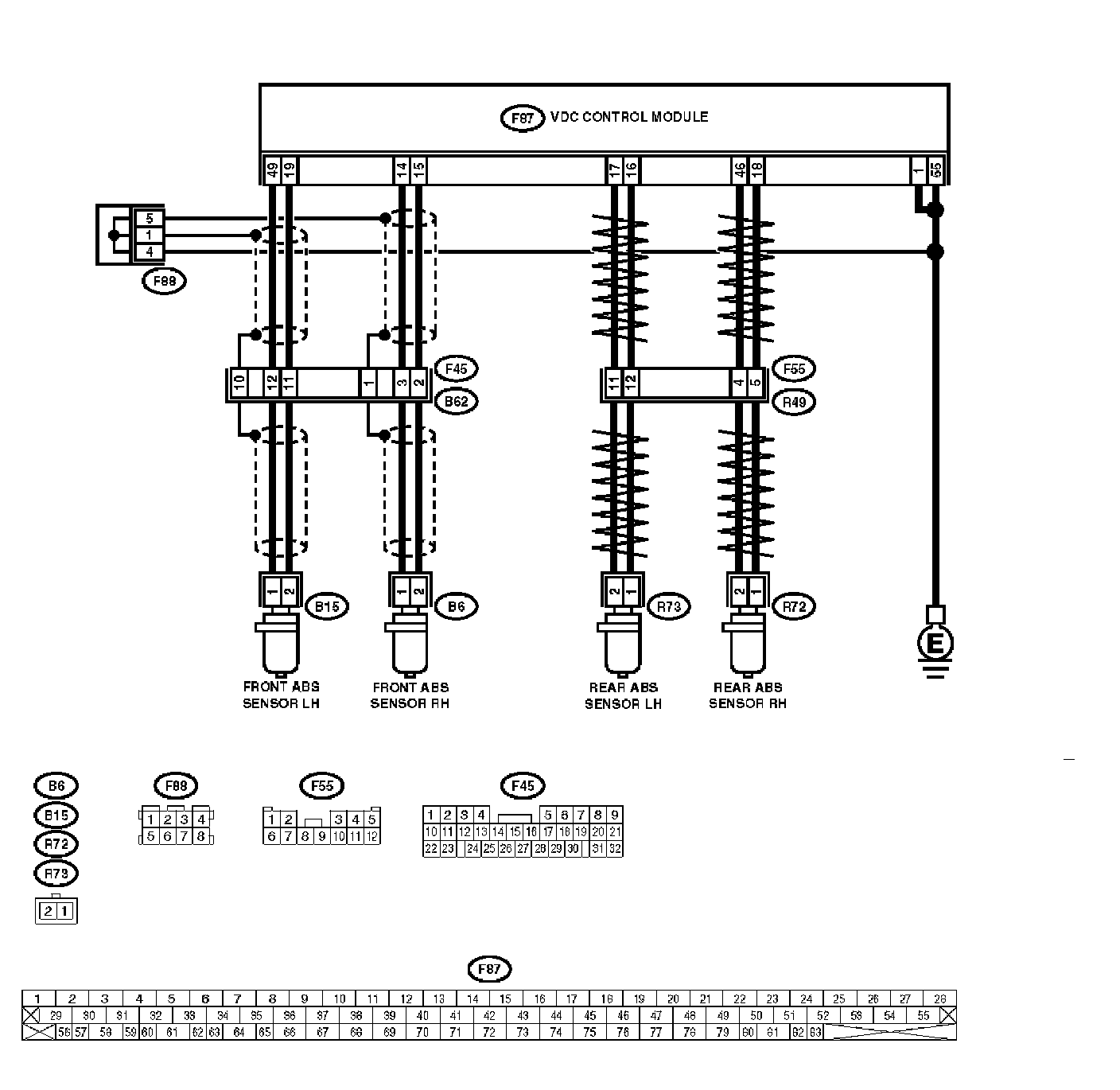

WIRING DIAGRAM
