ABS Trouble Code Charts For Select Monitor Results

DTC 27 OPEN OR SHORT CIRCUIT IN REAR LEFT ABS SENSOR CIRCUIT

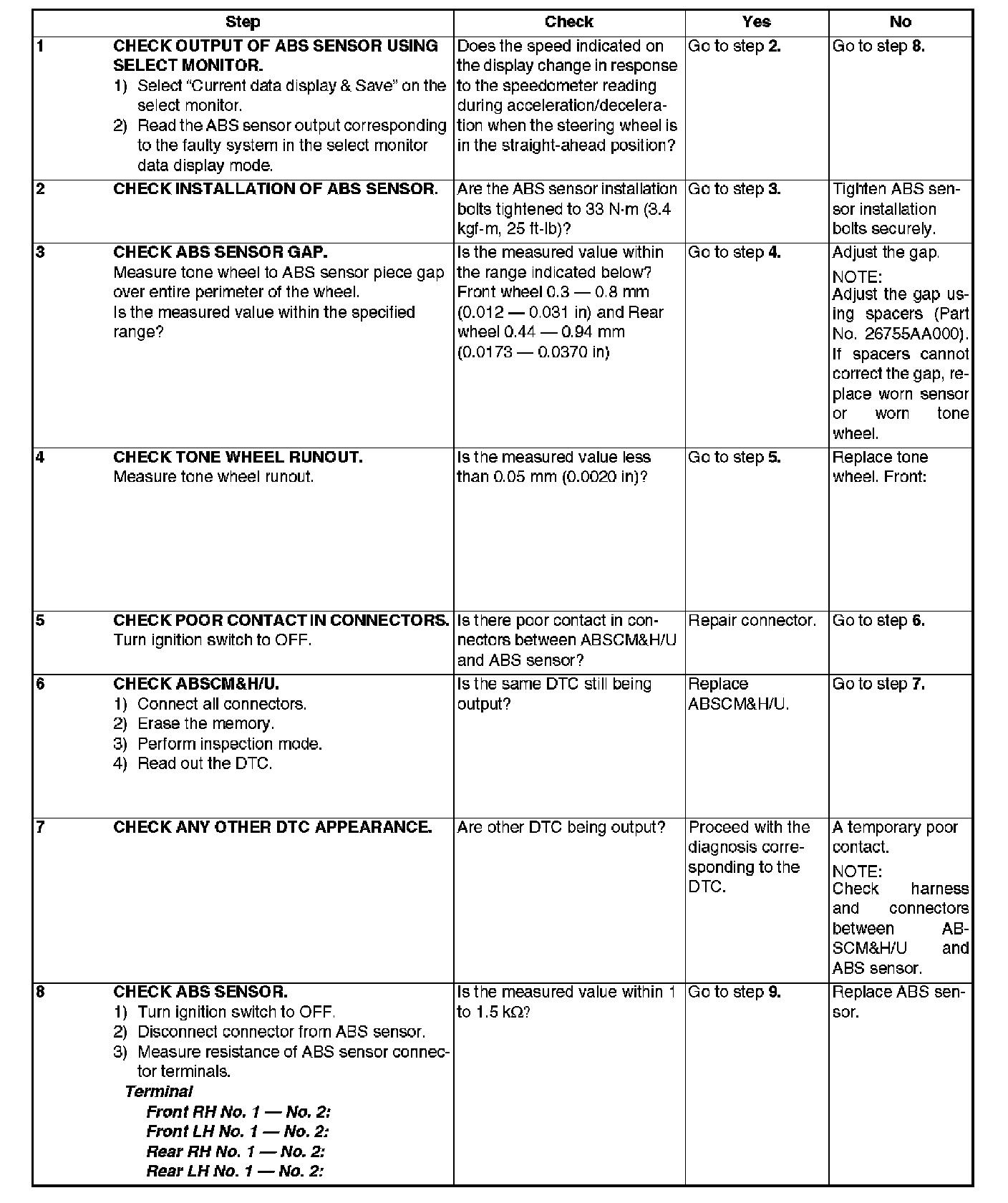

Steps 1-8:

Steps 9-12:

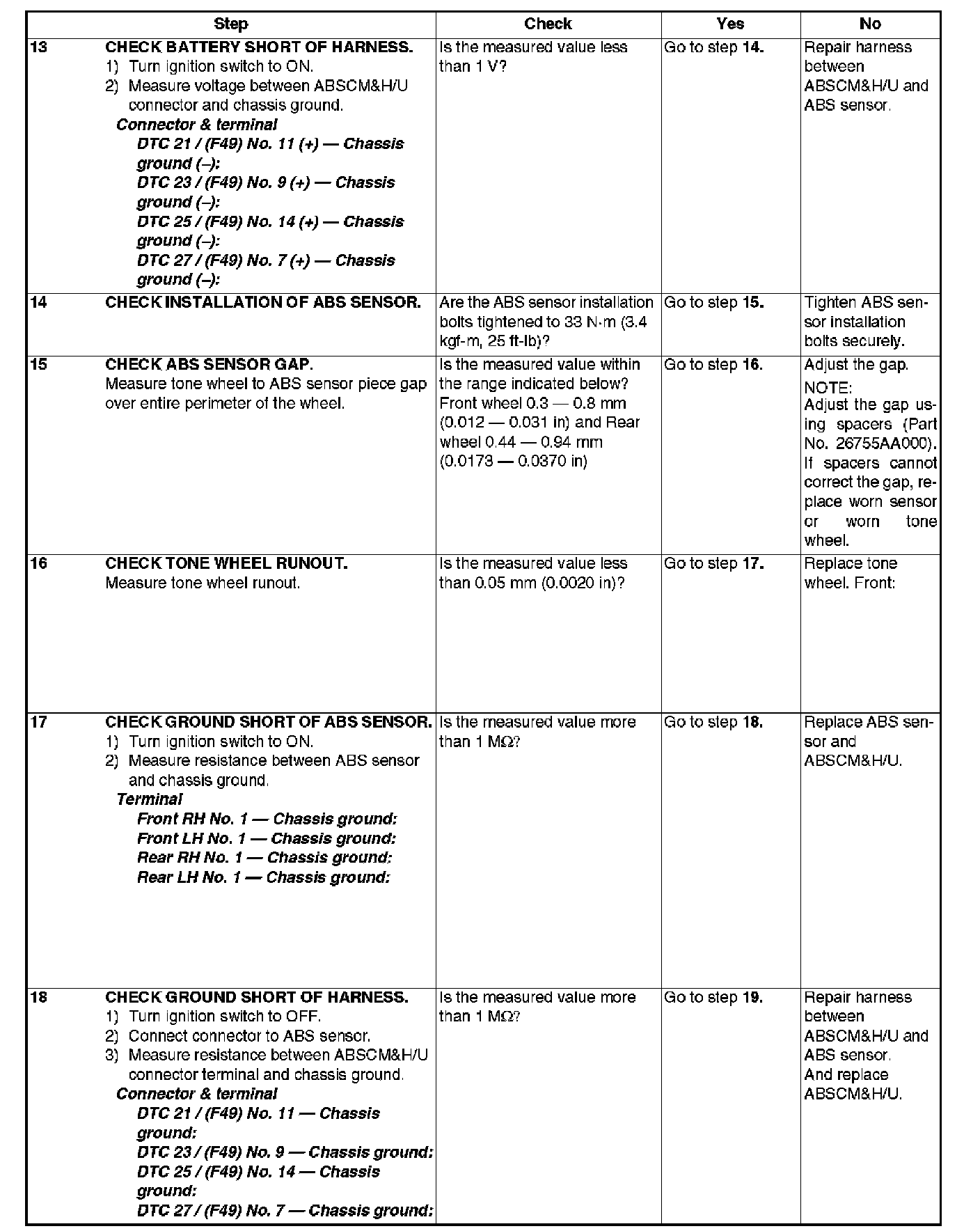

Steps 13-18:

Steps 19-21:

DIAGNOSIS:
^ Faulty ABS sensor (Broken wire, input voltage too high)
^ Faulty harness connector

TROUBLE SYMPTOM:
^ ABS does not operate.

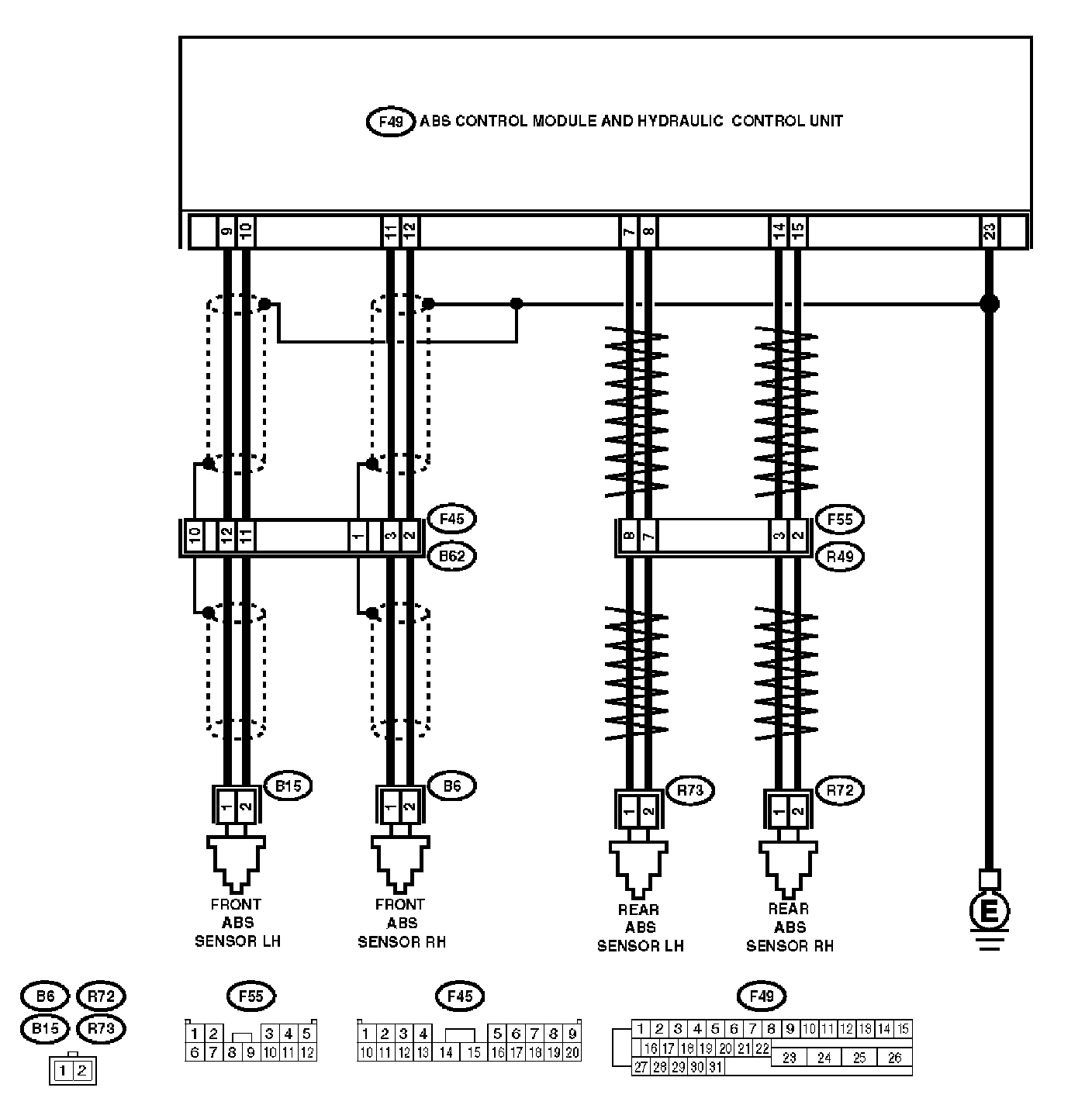

WIRING DIAGRAM
