Home >> Subaru >> 2004 >> Outback F6-3.0L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> DTC 01

DTC 01

DTC 1 - GPS SIGNAL ERROR -

DIAGNOSIS:
Trouble of GPS Signal

SYMPTOM:
- Red LED illuminates
- OnStar (R) does not operate.

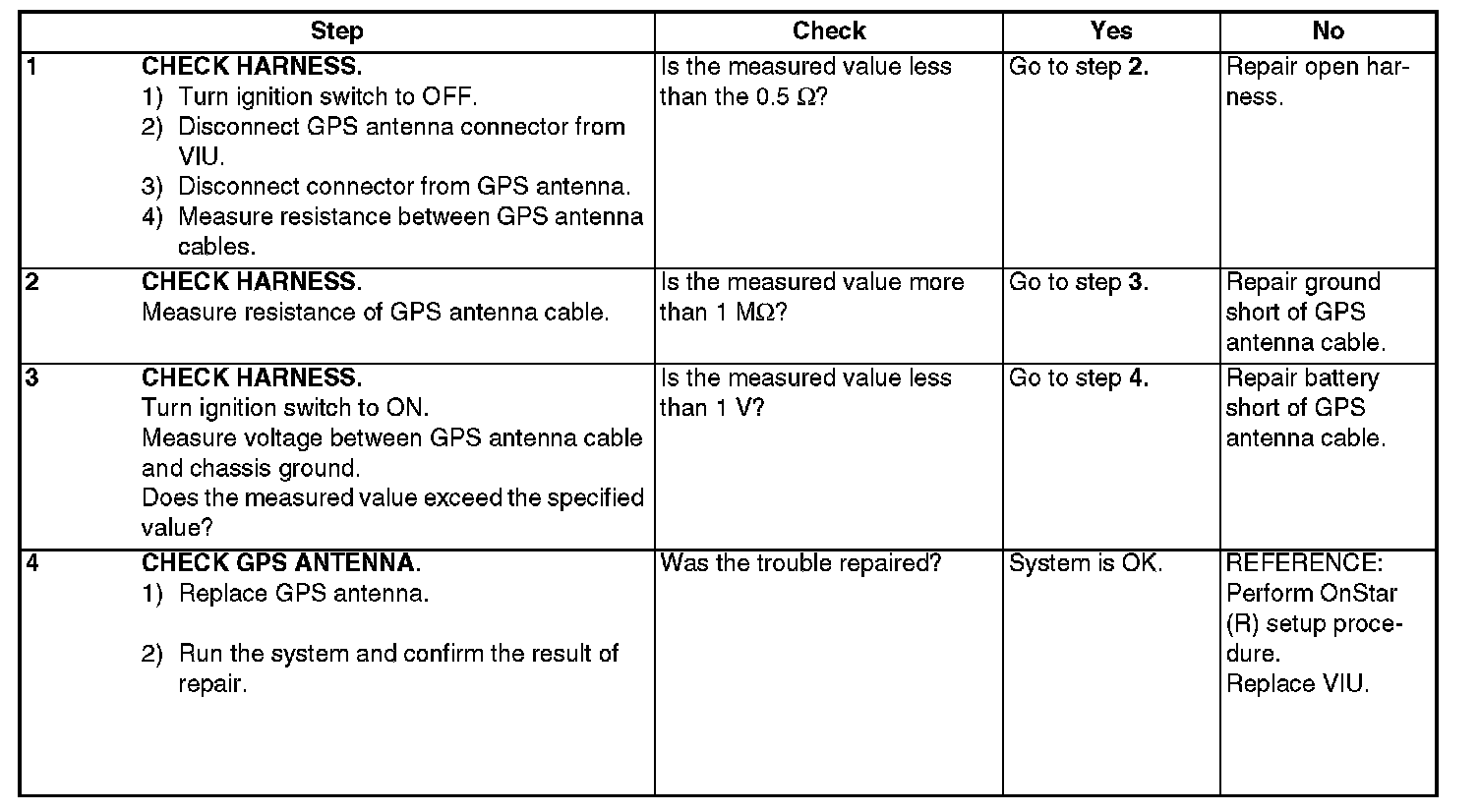

Step 1 - 4:
