P1698

DTC P1698 - ENGINE TORQUE CONTROL CUT SIGNAL CIRCUIT MALFUNCTION (LOW INPUT)

OUTLINE OF DIAGNOSIS
Judge NG when the ECM output level is different from the actual terminal level.




ENABLE CONDITION

GENERAL DRIVING CYCLE
Always perform the diagnosis continuously.

DIAGNOSTIC METHOD

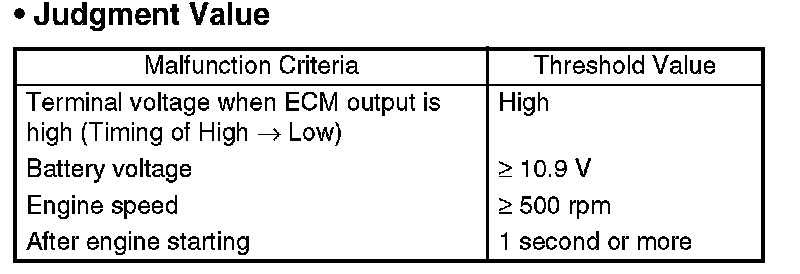

- Abnormality Judgment
Judge NG when the cumulative time of completing the malfunction criteria becomes more than 2.5 seconds.

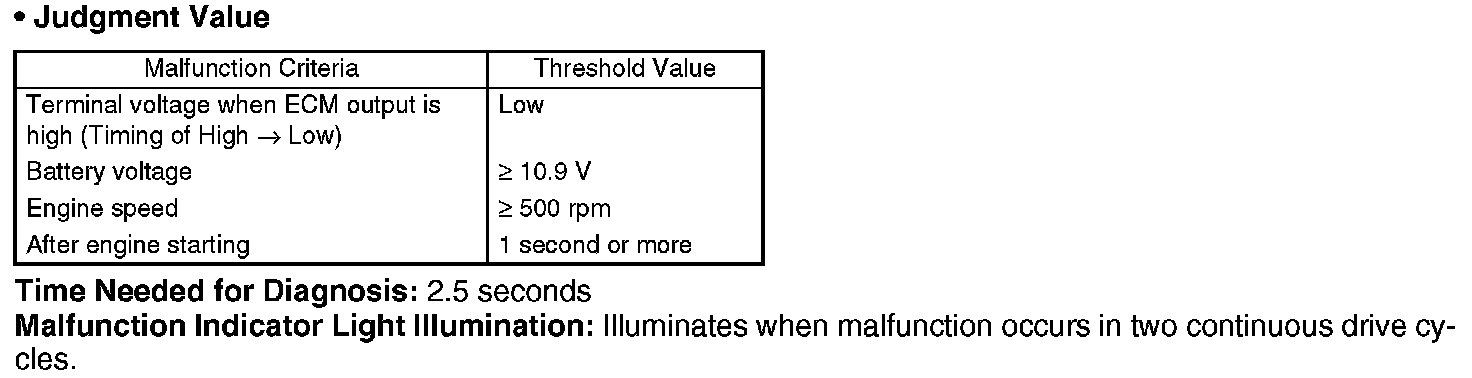

- Normality Judgment
Judge OK and clear NG when the malfunction criteria is completed.

DTC CLEAR CONDITION
- When the OK idling cycle was completed 40 times in a row
- When " Clear Memory " was performed

MALFUNCTION INDICATOR LIGHT CLEAR CONDITION
- When the OK driving cycle was completed 3 times in a row
- When " Clear Memory " was performed
FAIL SAFE
AT torque down control is not allowed.

ECM OPERATION AT DTC SETTING
Memorize the freeze frame data. (For test mode $02)
