P1560

DTC P1560 - BACK-UP VOLTAGE CIRCUIT MALFUNCTION

OUTLINE OF DIAGNOSIS
Detect open or short circuit of the back-up voltage circuit.
Judge NG when the voltage of back-up power becomes small.

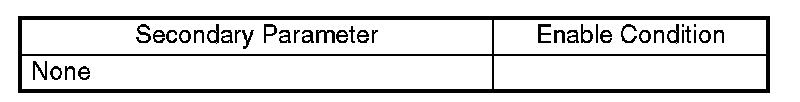

ENABLE CONDITION

GENERAL DRIVING CYCLE
Always perform the diagnosis continuously.

DIAGNOSTIC METHOD




- Abnormality Judgment

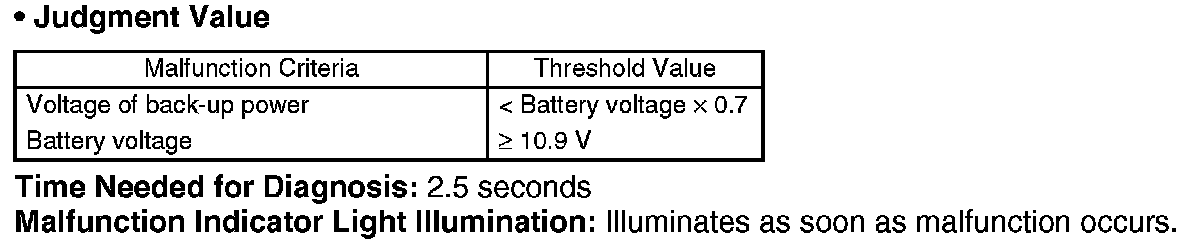

Judge NG when the continuous time of completing the malfunction criteria becomes more than 2.5 seconds.




- Normality Judgment

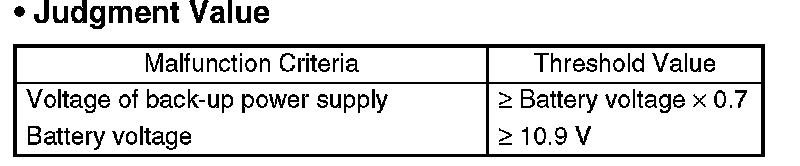

Judge OK and clear NG when the malfunction criteria is completed.

DTC CLEAR CONDITION
- When the OK idling cycle was completed 40 times in a row
- When " Clear Memory " was performed

MALFUNCTION INDICATOR LIGHT CLEAR CONDITION
- When the OK driving cycle was completed 3 times in a row
- When " Clear Memory " was performed

FAIL SAFE
None

ECM OPERATION AT DTC SETTING
Memorize the freeze frame data. (For test mode $02)
