P1518
DTC P1518 - STARTER SWITCH CIRCUIT LOW INPUTOUTLINE OF DIAGNOSIS
Detect the open or short circuit of starter SW.
Judge OFF NG when the engine starts without starter ON experience.
ENABLE CONDITION
GENERAL DRIVING CYCLE
Always perform the diagnosis continuously.
DIAGNOSTIC METHOD
- Abnormality Judgment

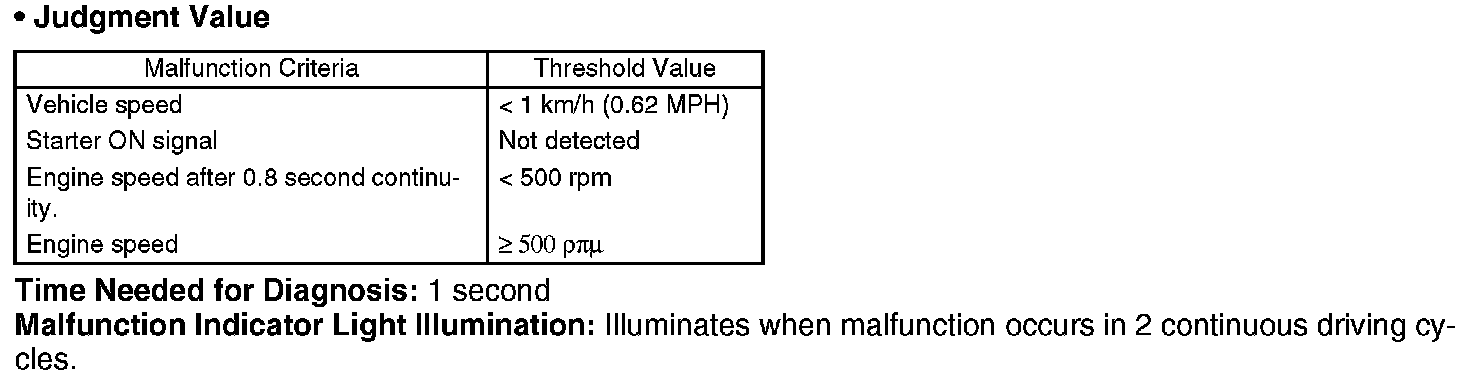

Judge OFF NG when the malfunction criteria are completed.
- Normality Judgment

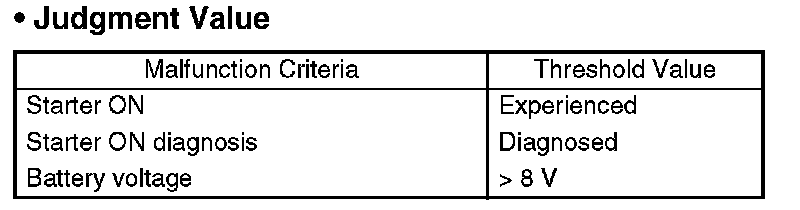

Judge OFF OK and clear the NG when the malfunction criteria are completed.
DTC CLEAR CONDITION
- When the OK idling cycle was completed 40 times in a row
- When " Clear Memory " was performed
MALFUNCTION INDICATOR LIGHT CLEAR CONDITION
- When the OK driving cycle was completed 3 times in a row
- When " Clear Memory " was performed
FAIL SAFE
None
ECM OPERATION AT DTC SETTING
Memorize the freeze frame data. (For test mode $02)
