P0733

DTC P0733 - GEAR 3 INCORRECT RATIO

OUTLINE OF DIAGNOSIS
Judge NG when the expected present gear is different from the actual gear.




ENABLE CONDITION

GENERAL DRIVING CYCLE
Always perform the diagnosis with less than 10 km/h (6 MPH) vehicle speeds.

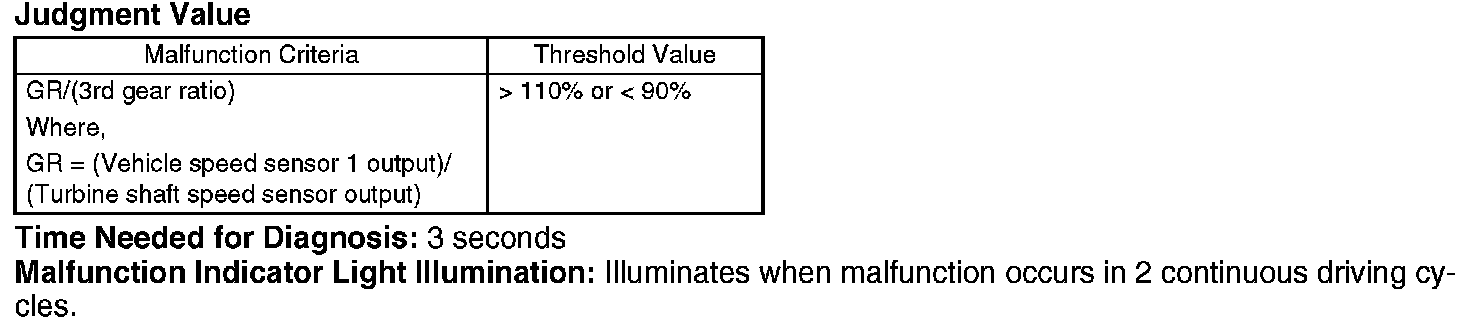

DIAGNOSTIC METHOD




Perform the diagnosis when the conditions below are not completed for more than 40 milliseconds on normal control.
1.Vehicle speed is more than 10 km/h (6 MPH).
2.Throttle sensor is more than a certain angle.
3.Shifted to " D ", " 3 ", " 2 " or " 1 " range, and range signal is normal.
4.More than 1 second passed after shift change finished.

DTC CLEAR CONDITION
- When the OK idling cycle was completed 40 times in a row
- When " Clear Memory " was performed

MALFUNCTION INDICATOR LIGHT CLEAR CONDITION
- When the OK driving cycle was completed 3 times in a row
- When " Clear Memory " was performed

FAIL SAFE
None

ECM OPERATION AT DTC SETTING
Memorize the freeze frame data. (For test mode $02)
