P0716

DTC P0716 - INPUT/TURBINE SPEED SENSOR CIRCUIT RANGE/PERFORMANCE

OUTLINE OF DIAGNOSIS
Judge NG when the turbine speed signal is not transmitted for some reasons.

COMPONENT DESCRIPTION
Torque converter turbine speed sensor (output shaft speed sensor) is installed to the outside of transmission case. This sensor detects the turbine speed of torque converter by the peripheral speed of high clutch drum connected to input shaft. And then it transmits the sine wave signal (32 pulses per rev.) to TCM. TCM calculates the ratio of the input shaft speed to vehicle speed, and then makes a judgment whether to shift or not.

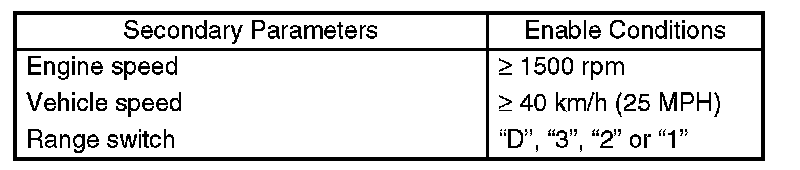

ENABLE CONDITION

GENERAL DRIVING CYCLE
Always perform the diagnosis continuously.

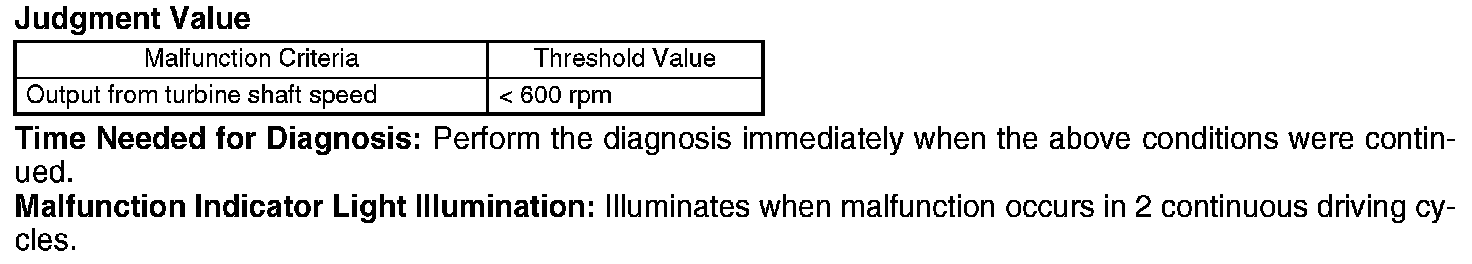

DIAGNOSTIC METHOD
Perform the diagnosis when the conditions below were continued.
1. Except " P ", " N ", " R " ranges and inhibitor switch is normal.
2. Engine speed is more than 3000 rpm.
3. Vehicle speed is 30 km/h (19 MPH) and vehicle speed sensor is normal.




4. Turbine speed is more than 600 rpm.

DTC CLEAR CONDITION
- When the OK idling cycle was completed 40 times in a row
- When " Clear Memory " was performed

MALFUNCTION INDICATOR LIGHT CLEAR CONDITION
- When the OK driving cycle was completed 3 times in a row
- When " Clear Memory " was performed

FAIL SAFE
None

ECM OPERATION AT DTC SETTING
Memorize the freeze frame data. (For test mode $02)
