P0703

DTC P0703 - TORQUE CONVERTER/BRAKE SWITCH " B " CIRCUIT

OUTLINE OF DIAGNOSIS
Judge NG when the AT brake switch circuit becomes battery short, ground short or open circuit.

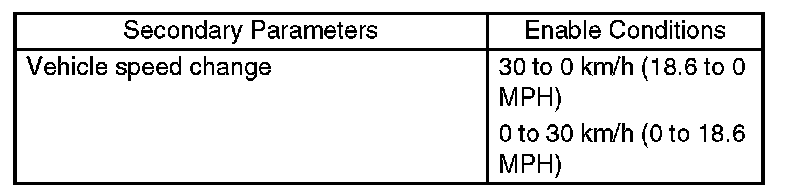

ENABLE CONDITION

GENERAL DRIVING CYCLE
Always perform the diagnosis continuously.

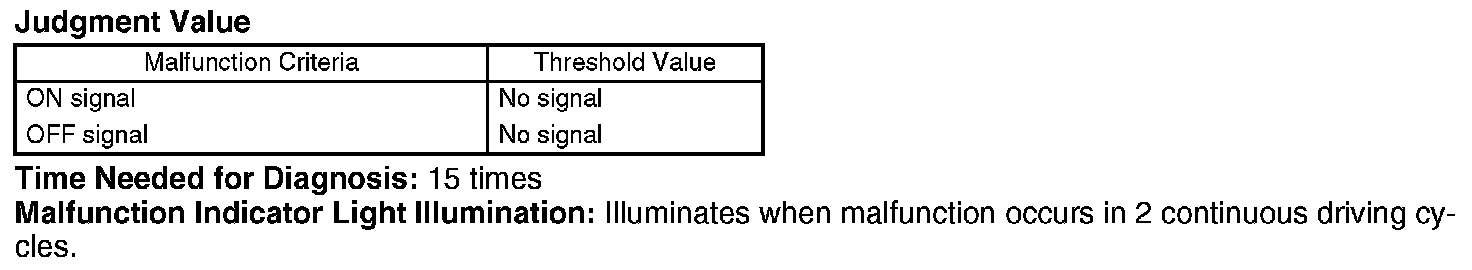

DIAGNOSTIC METHOD

DTC CLEAR CONDITION
- When the OK idling cycle was completed 40 times in a row
- When " Clear Memory " was performed

MALFUNCTION INDICATOR LIGHT CLEAR CONDITION
- When the OK driving cycle was completed 3 times in a row
- When " Clear Memory " was performed

FAIL SAFE
None

ECM OPERATION AT DTC SETTING
Memorize the freeze frame data. (For test mode $02)
