P0691

DTC P0691 - COOLING FAN 1 CONTROL CIRCUIT LOW

OUTLINE OF DIAGNOSIS
Detect the open or short circuit of the radiator fan circuit.
Judge NG when the ECM output level differs from the actual terminal level.




ENABLE CONDITION

GENERAL DRIVING CYCLE
Always perform the diagnosis continuously.

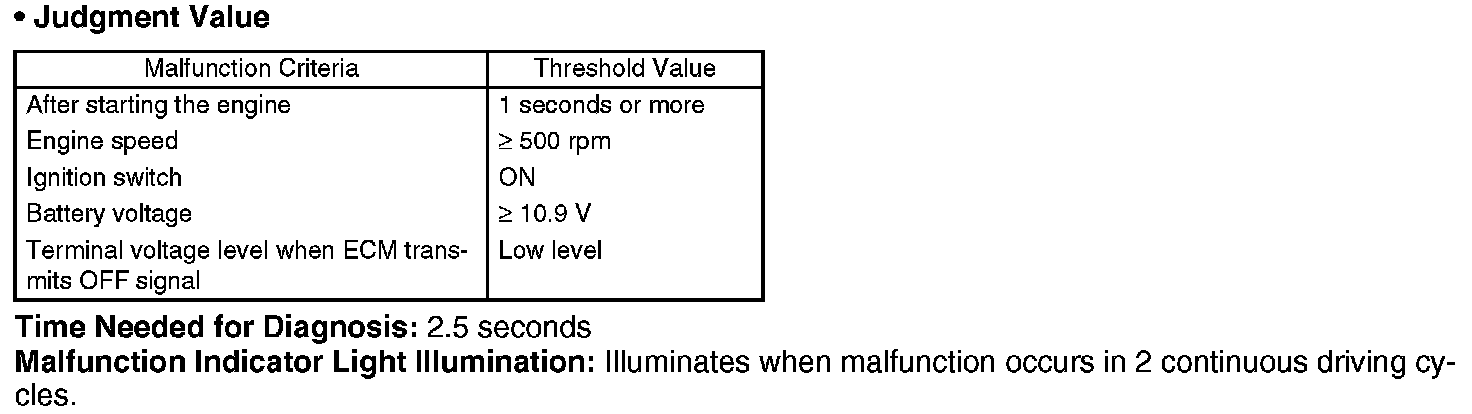

DIAGNOSTIC METHOD




- Abnormality Judgment
Judge NG when the cumulative time of completing the malfunction criteria becomes more than 2.5 seconds.




- Normality Judgment
Judge OK and clear NG when the malfunction criteria are completed.

DTC CLEAR CONDITION
- When the OK idling cycle was completed 40 times in a row
- When " Clear Memory " was performed

MALFUNCTION INDICATOR LIGHT CLEAR CONDITION
- When the OK driving cycle was completed 3 times in a row
- When " Clear Memory " was performed

FAIL SAFE
None

ECM OPERATION AT DTC SETTING
Memorize the freeze frame data. (For test mode $02)
