P0565

DTC P0565 - CRUISE CONTROL ON SIGNAL

OUTLINE OF DIAGNOSIS
Judge NG when the cruise control set signal is continued to be ON for a certain period of time at the vehicle speed less than 20 km/h (12 MPH).




ENABLE CONDITION

GENERAL DRIVING CYCLE
Always perform diagnosis at vehicle speed 20 km/h (12.4 MPH) or less.

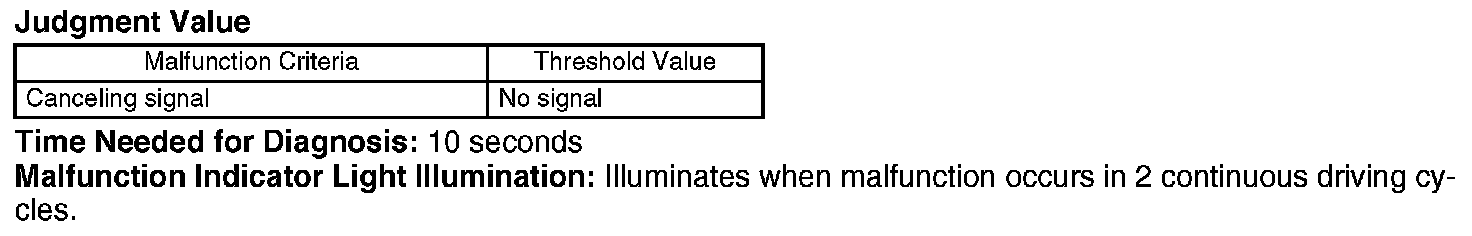

DIAGNOSTIC METHOD

DTC CLEAR CONDITION
- When the OK idling cycle was completed 40 times in a row
- When " Clear Memory " was performed

MALFUNCTION INDICATOR LIGHT CLEAR CONDITION
- When the OK driving cycle was completed 3 times in a row
- When " Clear Memory " was performed

FAIL SAFE
None

ECM OPERATION AT DTC SETTING
Memorize the freeze frame data. (For test mode $02)
