P0458

DTC P0458 - EVAPORATIVE EMISSION CONTROL SYSTEM PURGE CONTROL VALVE CIRCUIT LOW

OUTLINE OF DIAGNOSIS
Detect open or short circuit of purge control solenoid valve.
Judge NG when ECM output level is different from actual terminal level.

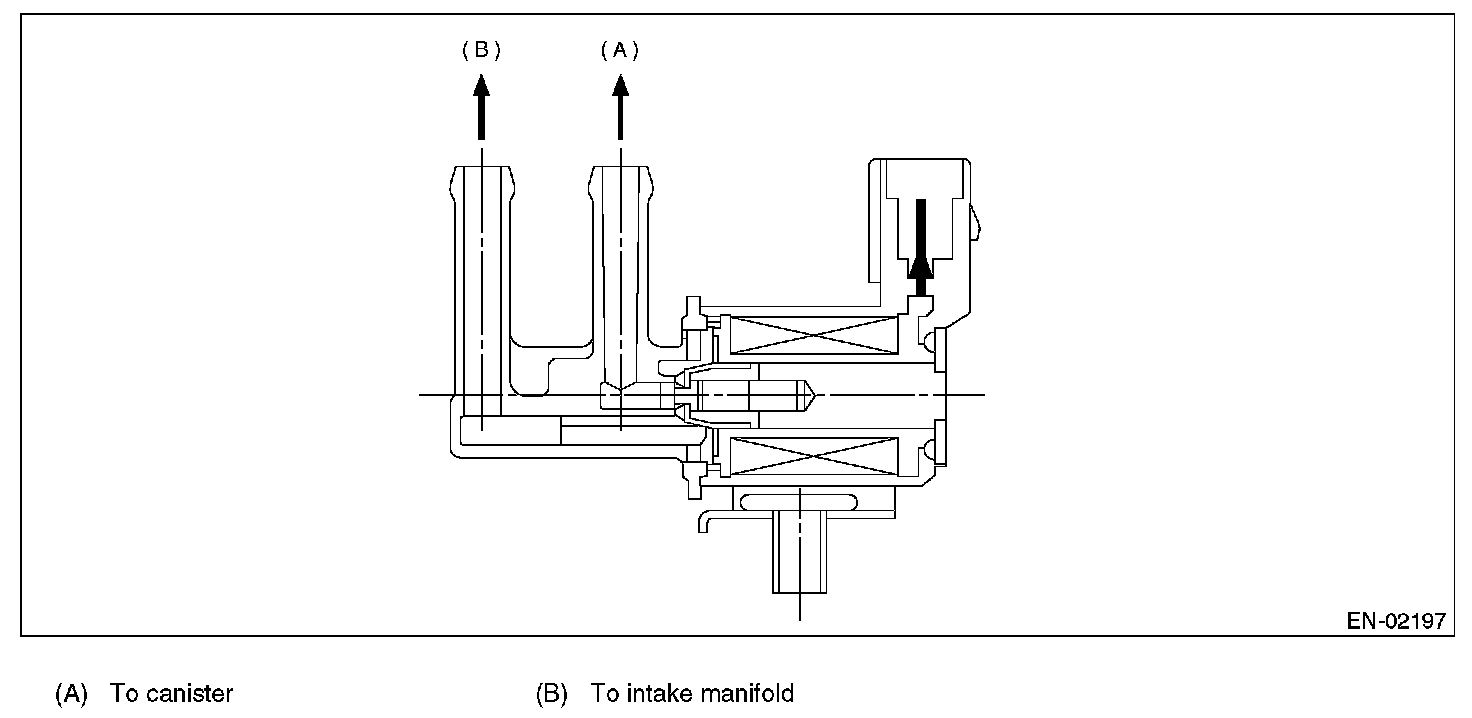

COMPONENT DESCRIPTION

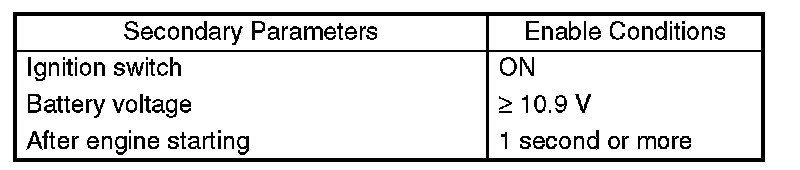

ENABLE CONDITION

GENERAL DRIVING CYCLE
Always perform the diagnosis after starting the engine.

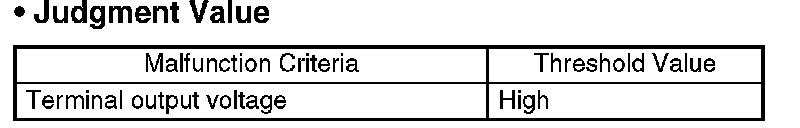

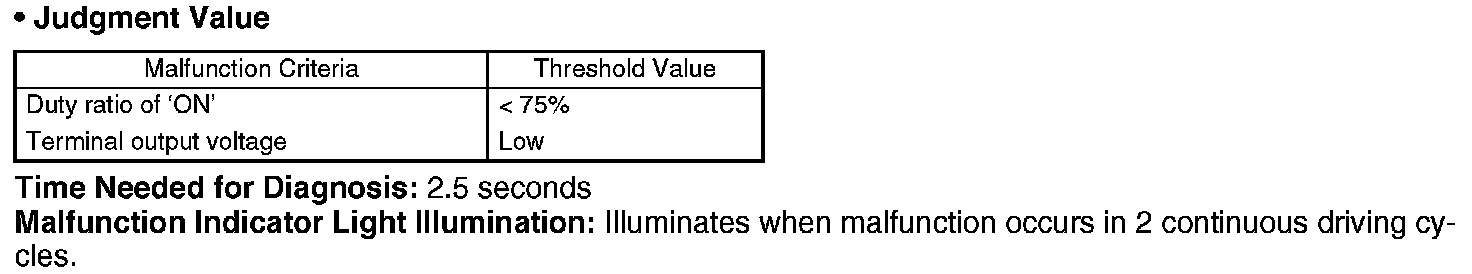

DIAGNOSTIC METHOD




- Abnormality Judgment
Judge NG when the malfunction criteria becomes.




- Normality Judgment
Judge OK and clear NG when the malfunction criterion is completed.

DTC CLEAR CONDITION
- When the OK idling cycle was completed 40 times in a row
- When " Clear Memory " was performed

MALFUNCTION INDICATOR LIGHT CLEAR CONDITION
- When the OK driving cycle was completed 3 times in a row
- When " Clear Memory " was performed

FAIL SAFE
None

ECM OPERATION AT DTC SETTING
Memorize the freeze frame data. (For test mode $02)
