P0230

DTC P0230 - FUEL PUMP PRIMARY CIRCUIT

OUTLINE OF DIAGNOSIS
Detect the malfunction of fuel pump control unit. Judge NG when the NG signal is sent through a diagnostic line coming from the fuel pump control unit. Fuel pump control unit detects the open or short circuit malfunction for each line, and then sends NG signals if one of them is found NG.

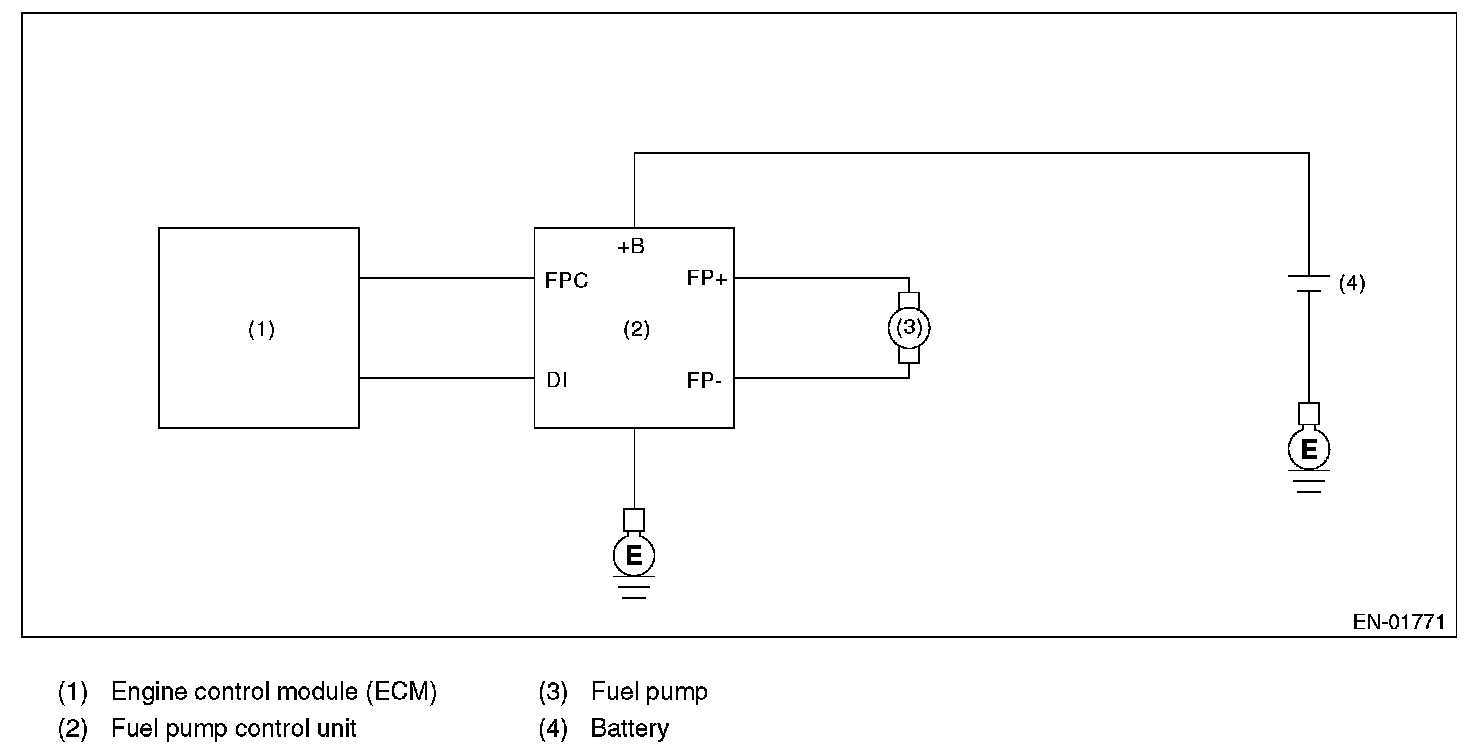

COMPONENT DESCRIPTION




ENABLE CONDITION

GENERAL DRIVING CYCLE
Always perform the diagnosis continuously.

DIAGNOSTIC METHOD

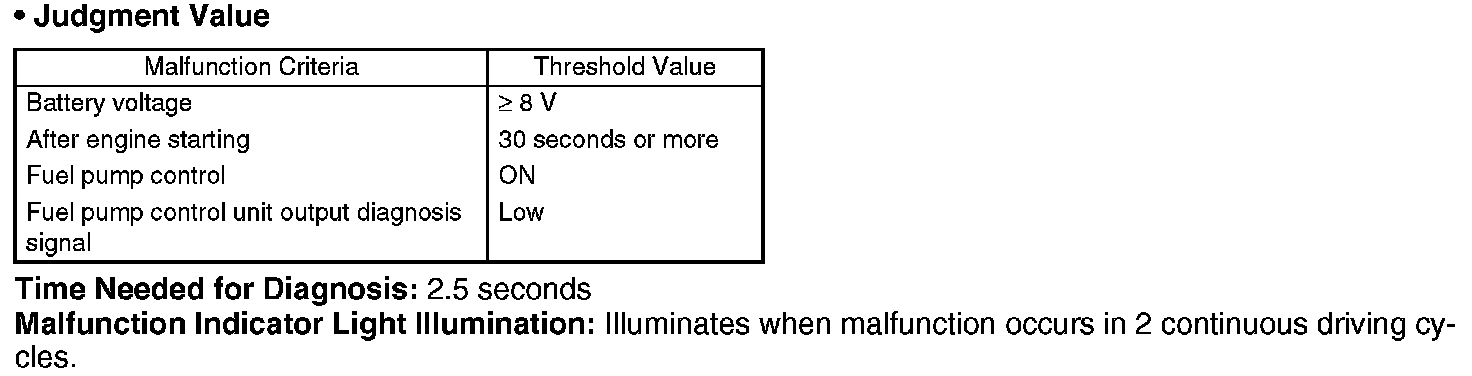

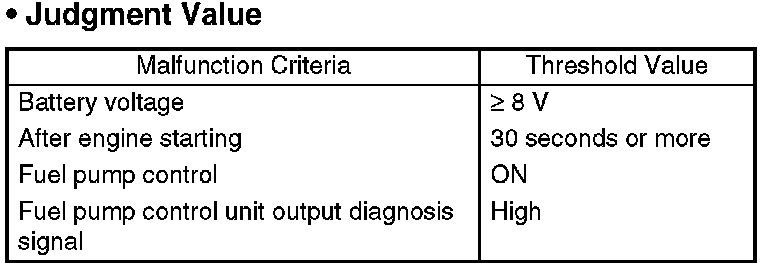

- Abnormality Judgment
Judge NG when the continuous time of completing the malfunction criteria becomes more than 2.5 seconds.




- Normality Judgment
Judge OK and clear the NG when the malfunction criteria are completed.

DTC CLEAR CONDITION
- When the OK idling cycle was completed 40 times in a row
- When "Clear Memory" was performed

MALFUNCTION INDICATOR LIGHT CLEAR CONDITION
- When the OK driving cycle was completed 3 times in a row
- When "Clear Memory" was performed

FAIL SAFE
OFF setting may be needed depending on the NG portion.

ECM OPERATING AT DTC SETTING
Memorize the freeze frame data. (For test mode $02)
