P0112

DTC P0112 - INTAKE AIR TEMPERATURE CIRCUIT LOW INPUT

OUTLINE OF DIAGNOSIS
Detect the open or short circuit of intake air temperature sensor. Judge NG when out of the standard value.

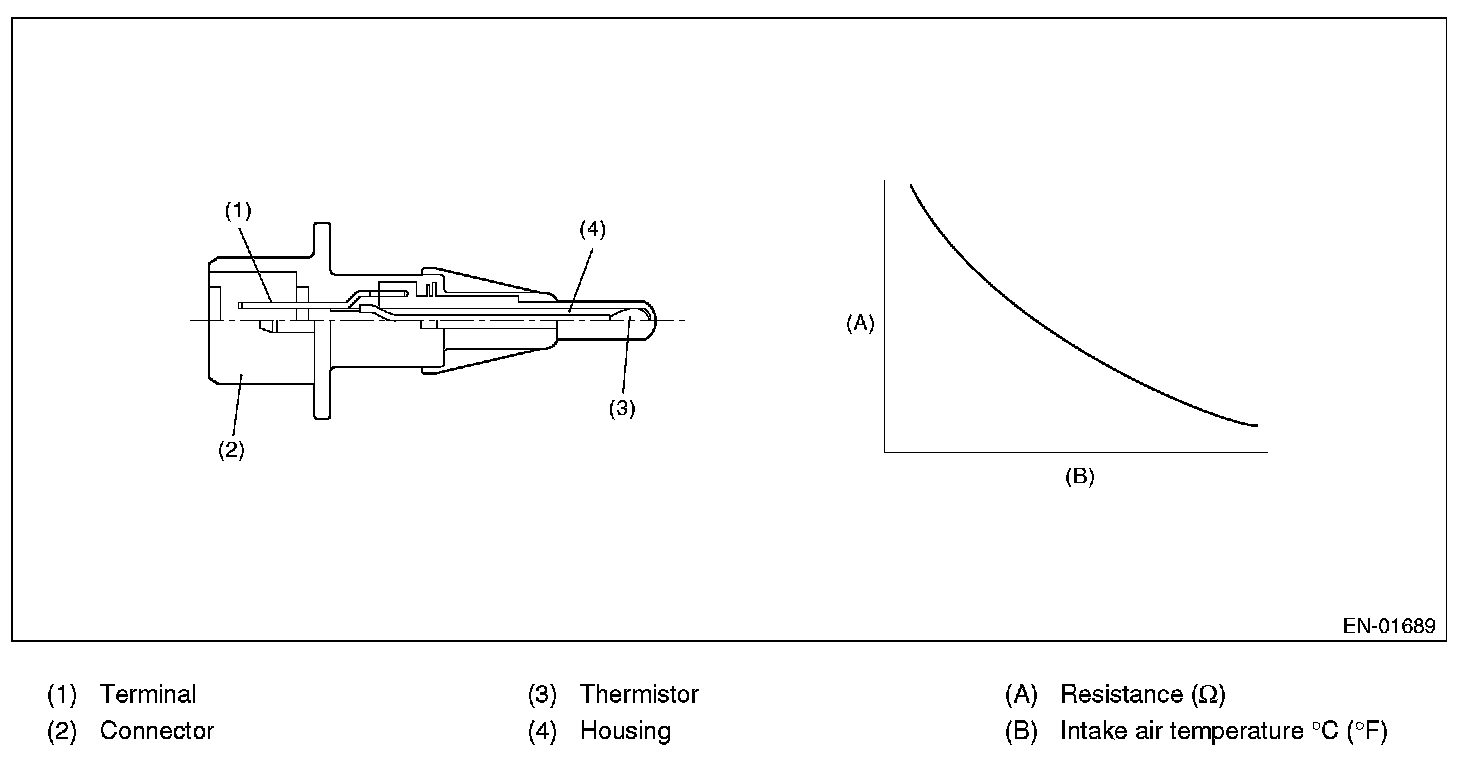

COMPONENT DESCRIPTION

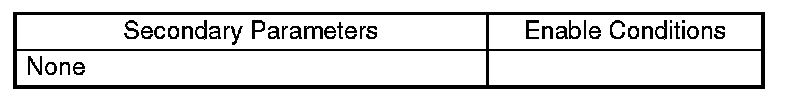

ENABLE CONDITION

GENERAL DRIVING CYCLE
Always perform the diagnosis continuously.

DIAGNOSTIC METHOD

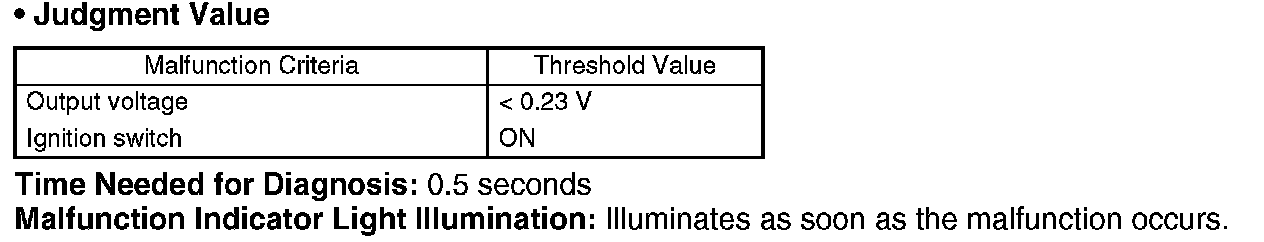

- Abnormality Judgment
Judge NG when the continuous time of completing the malfunction criteria becomes more than 0.5 seconds.

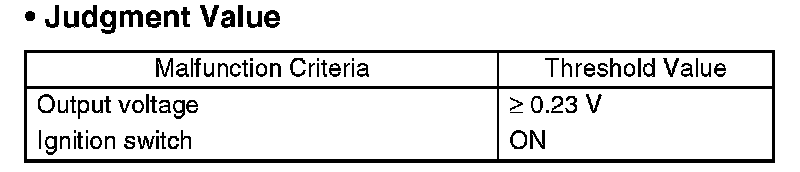

- Normality Judgment
Judge OK and clear the NG when the malfunction criteria are completed.

DTC CLEAR CONDITION
- When the OK idling cycle was completed 40 times in a row
- When "Clear Memory" was performed

MALFUNCTION INDICATOR LIGHT CLEAR CONDITION
- When the OK driving cycle was completed 3 times in a row
- When "Clear Memory" was performed

FAIL SAFE
Intake air temperature sensor process: Intake air temperature is fixed at 20 ° (68 °F).

ECM OPERATING AT DTC SETTING
Memorize the freeze frame data. (For test mode $02)
