Locations
>>
Connector Locations
>>
B30-B333
B30-B333
BULKHEAD WIRING HARNESS (IN COMPARTMENT)

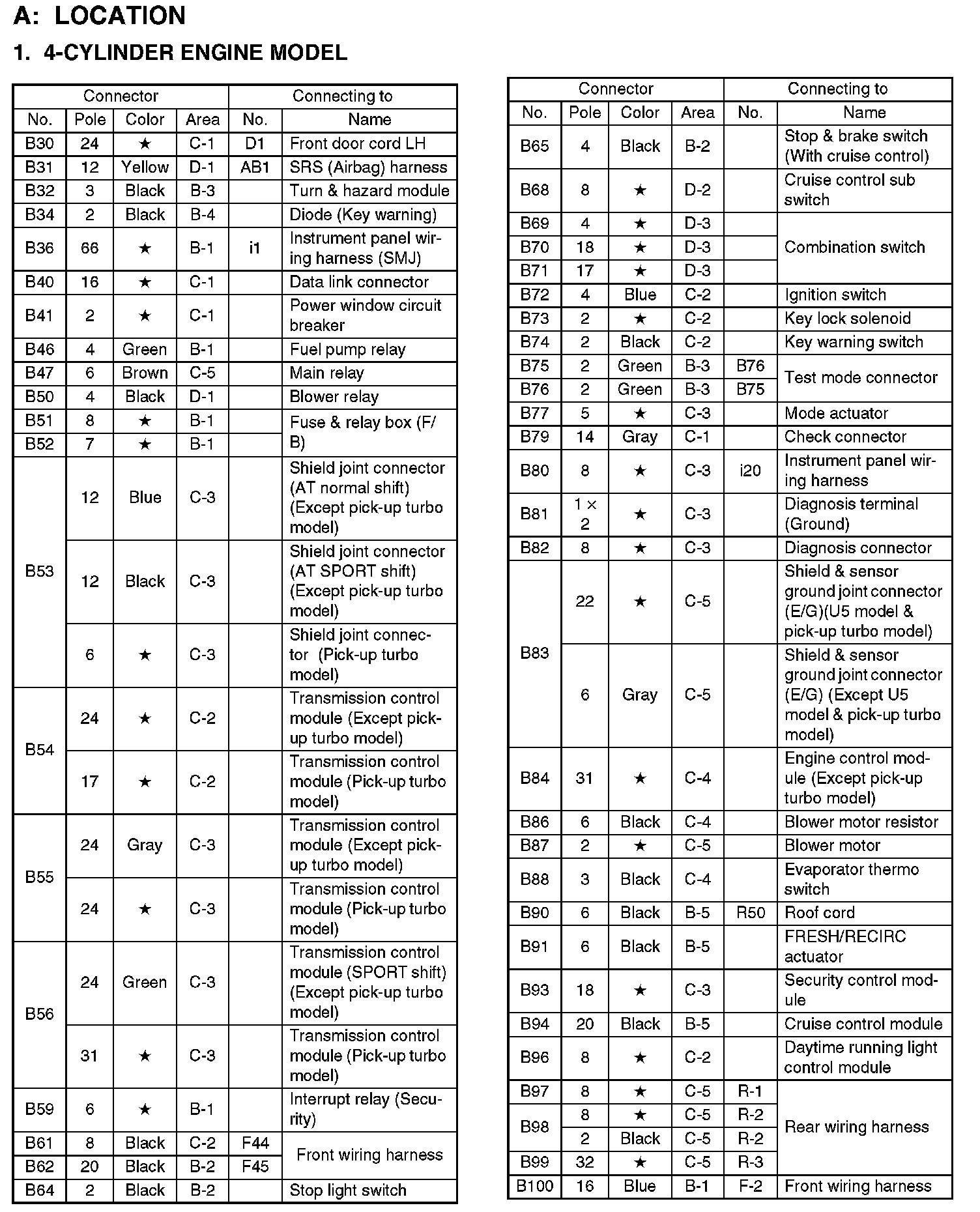

B30-B100:

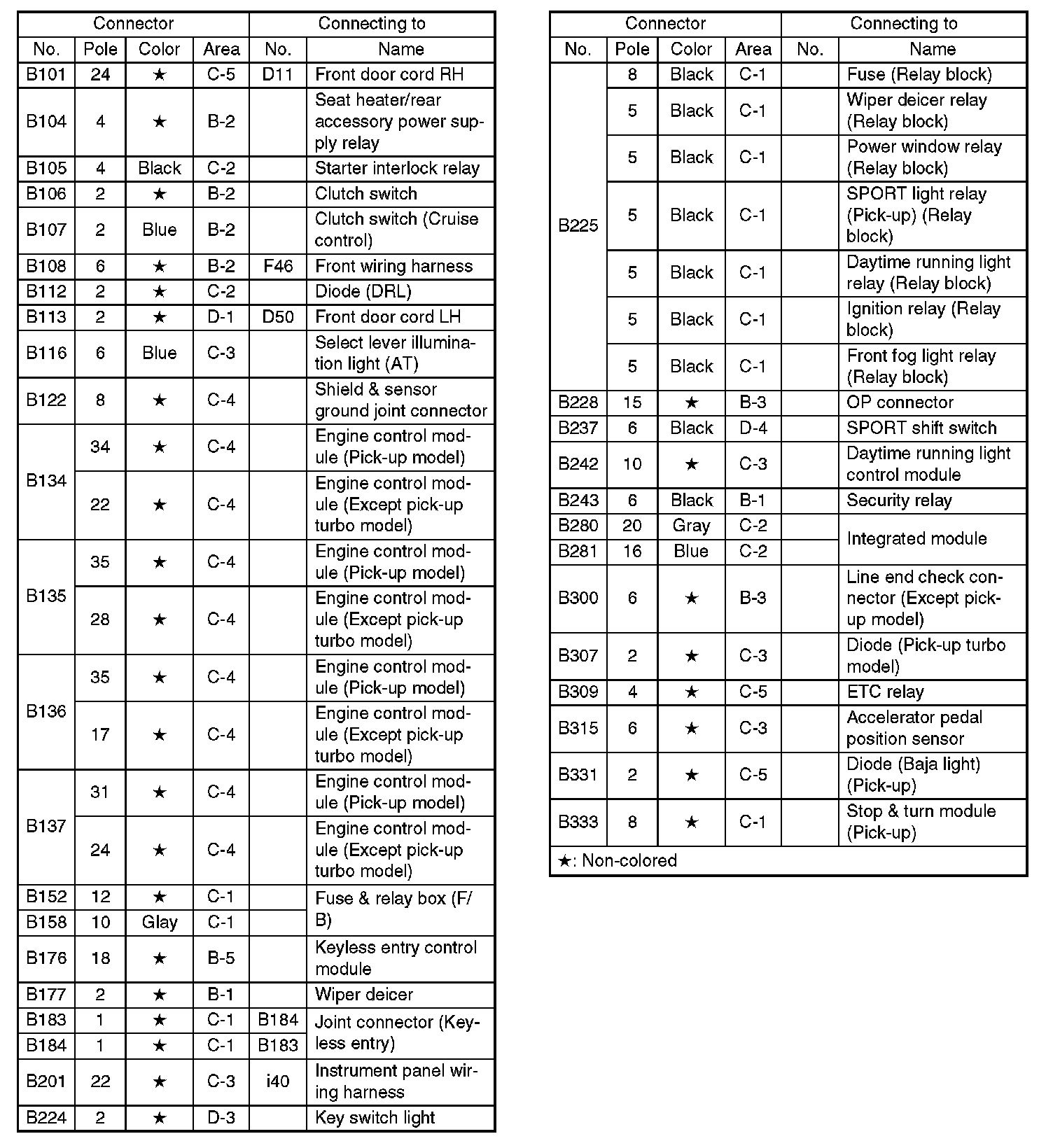

B101-B333:
Area View:
