Locations
>>
Connector Locations
>>
B3-B328
B3-B328
BULKHEAD WIRING HARNESS (IN ENGINE ROOM)

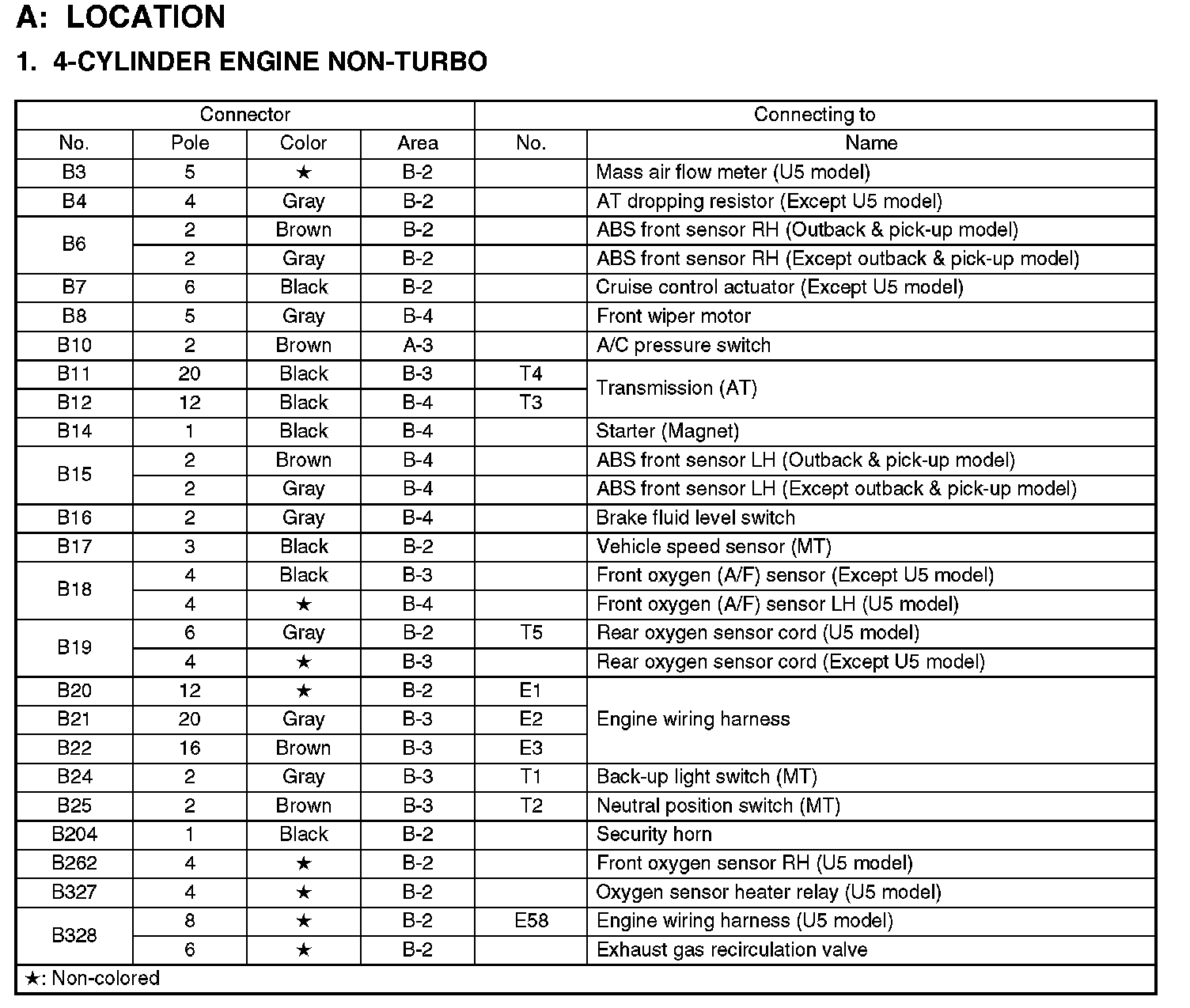

B3-B328:

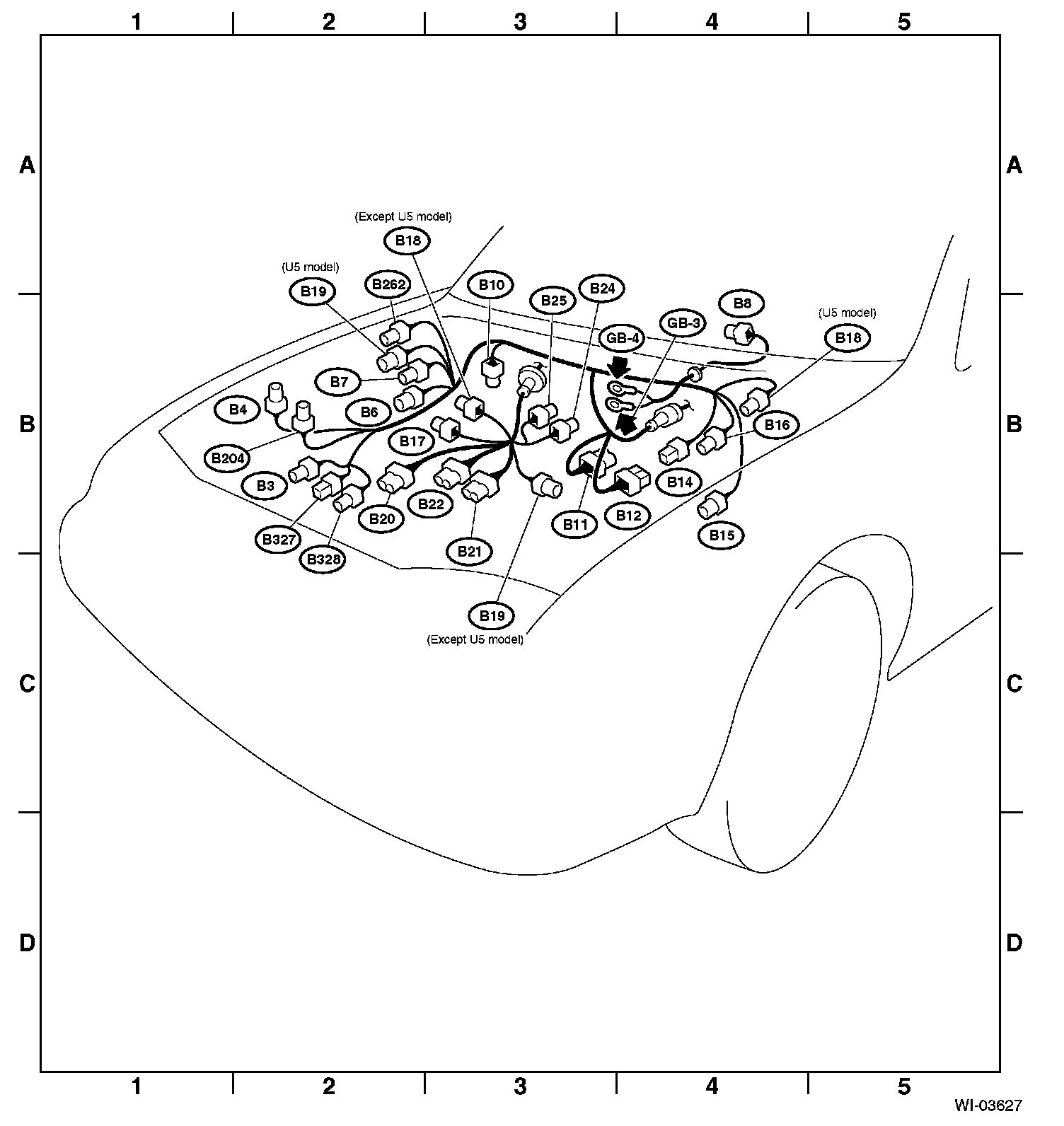

Area View:
