Computers and Control Systems: Locations

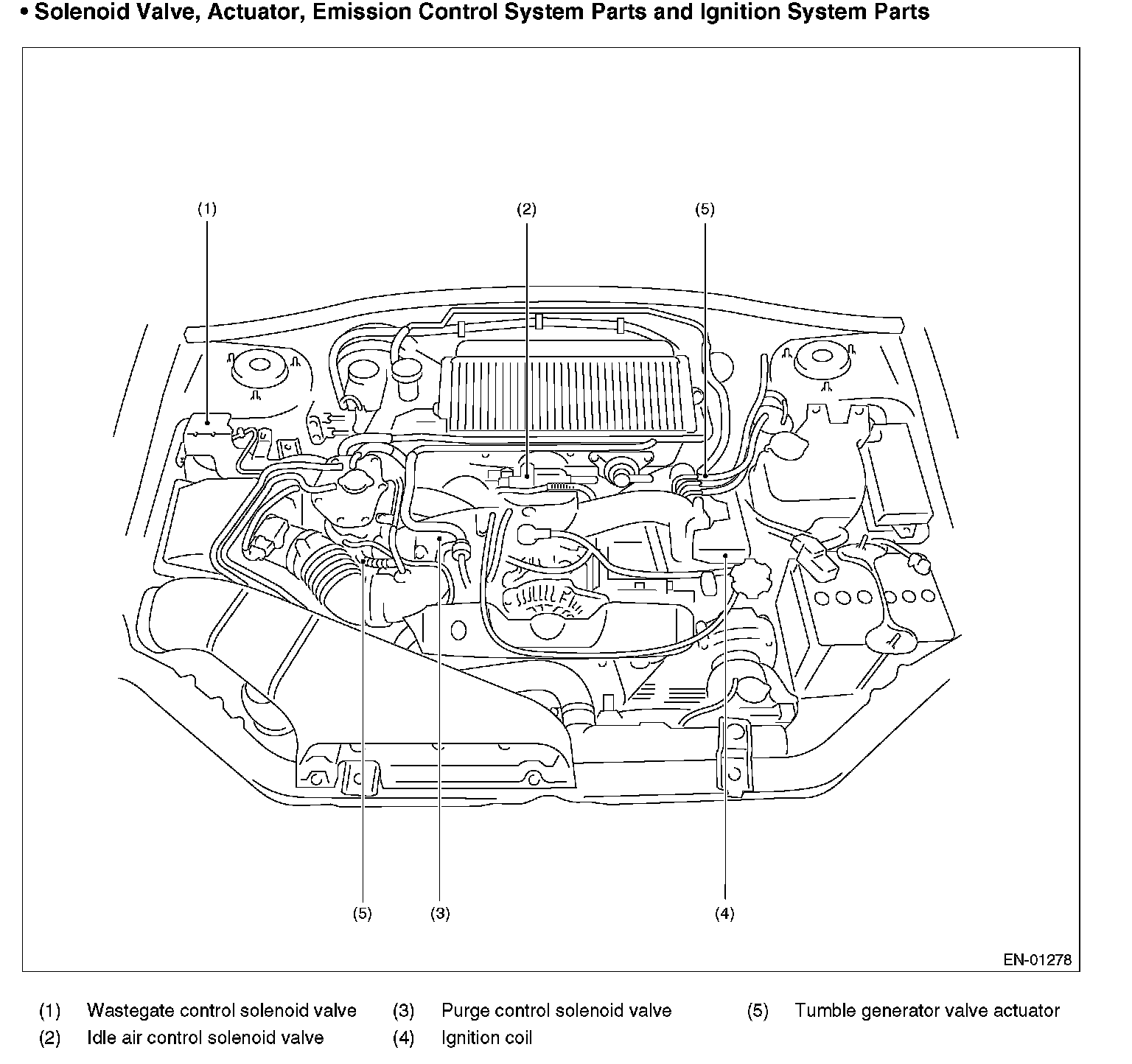

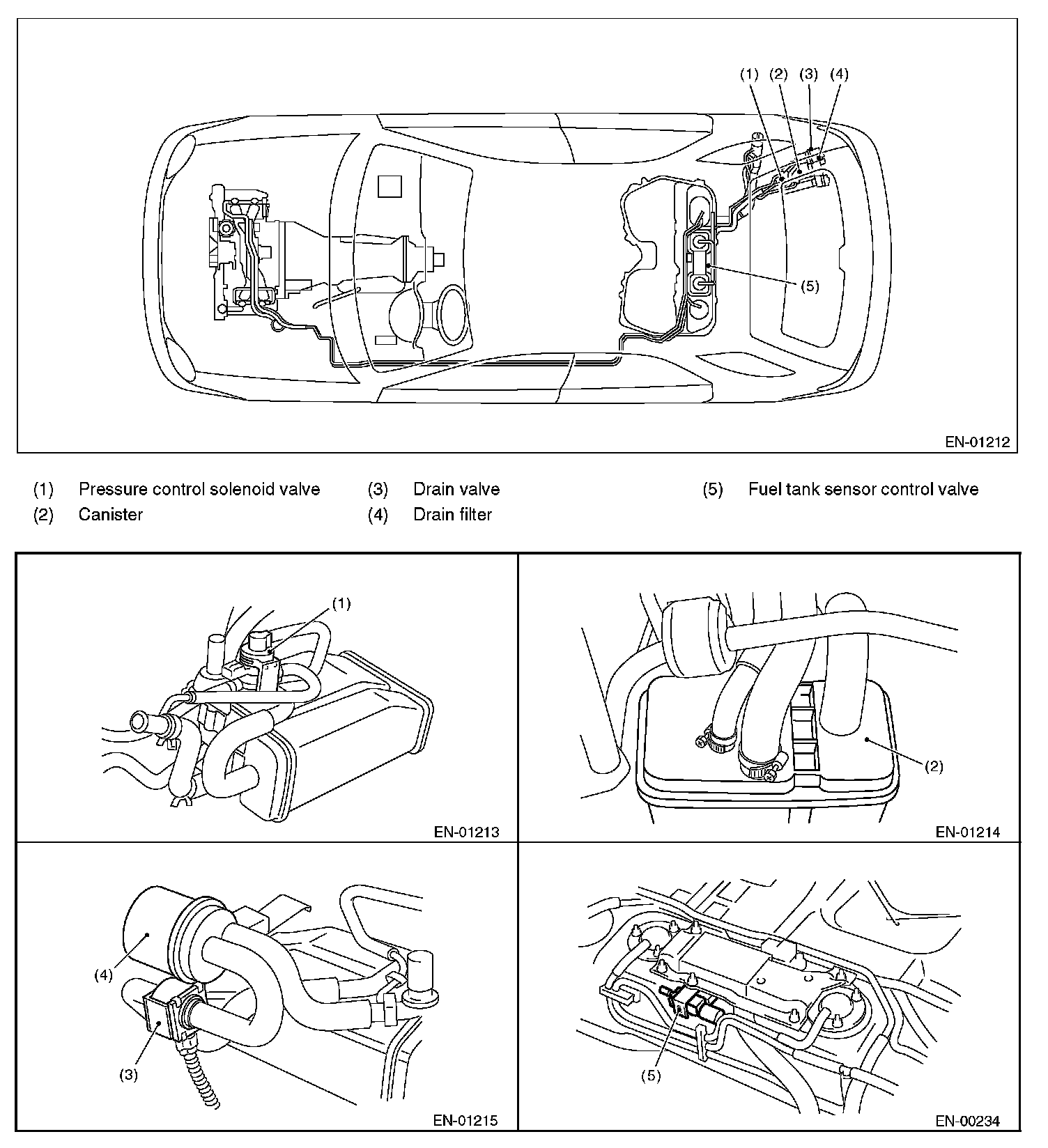

Electrical Component Location - Module:

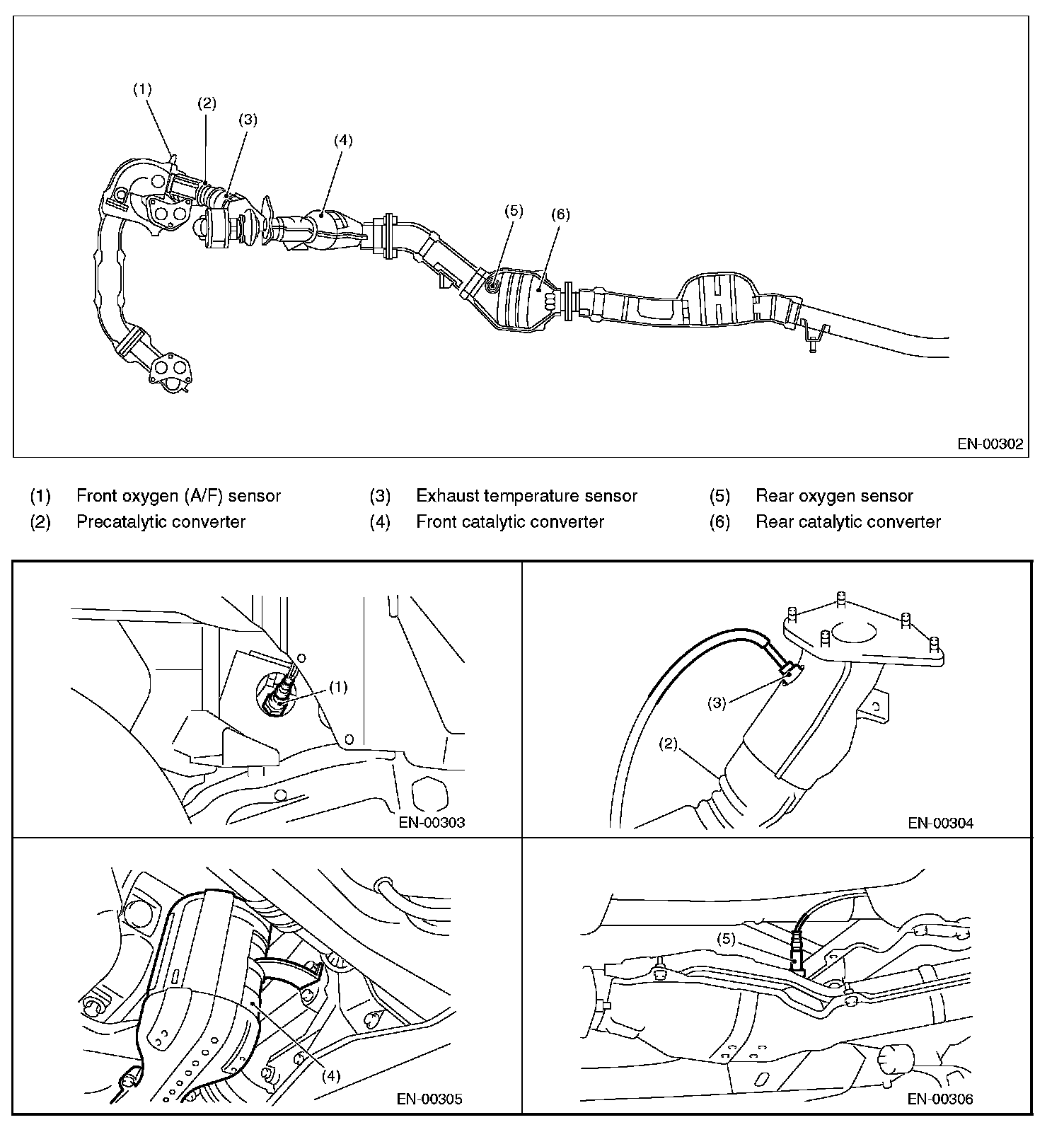

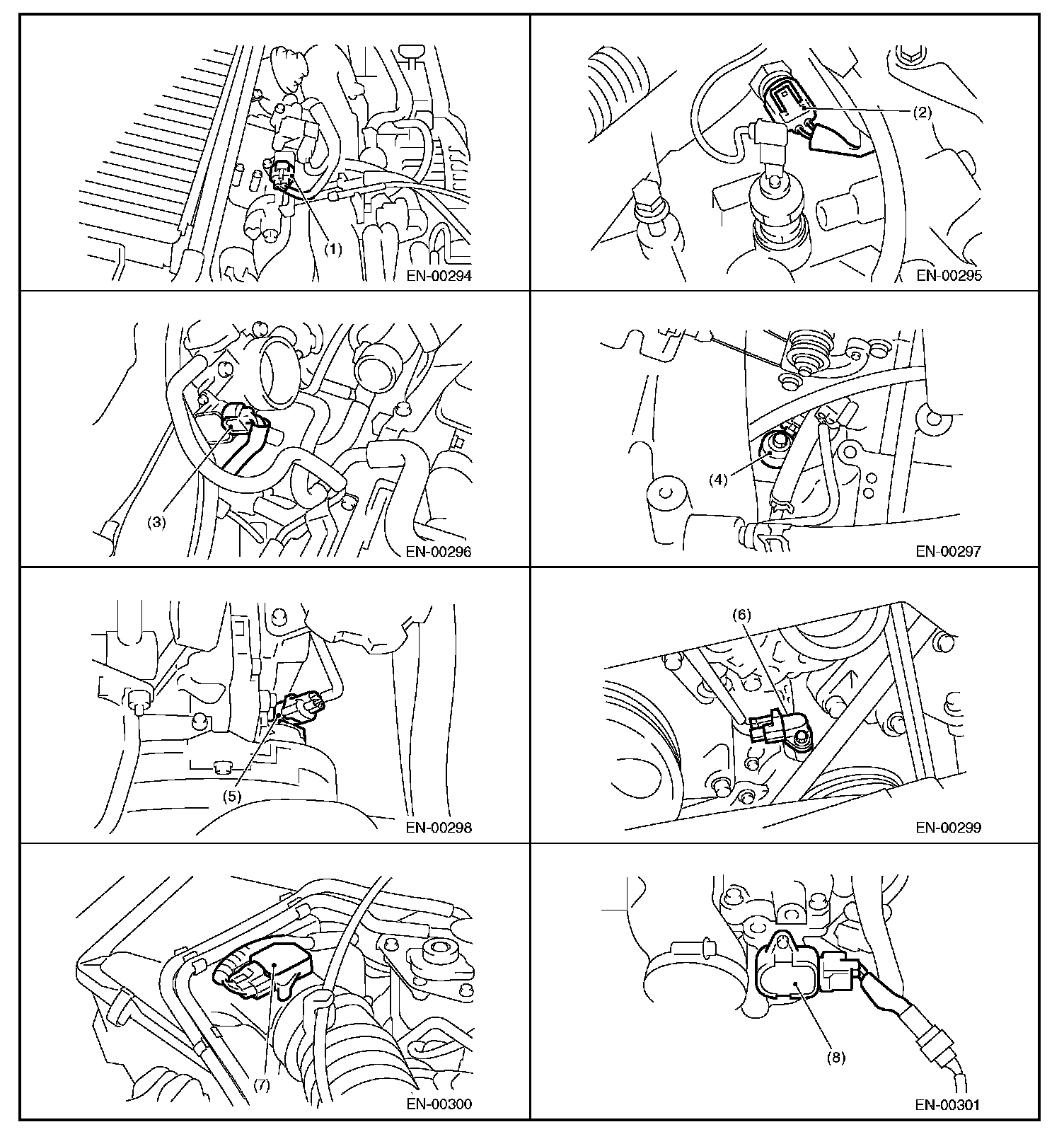

Electrical Component Location - Sensor:
