Subaru
>>
2004
>>
Impreza F4-2.5L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>

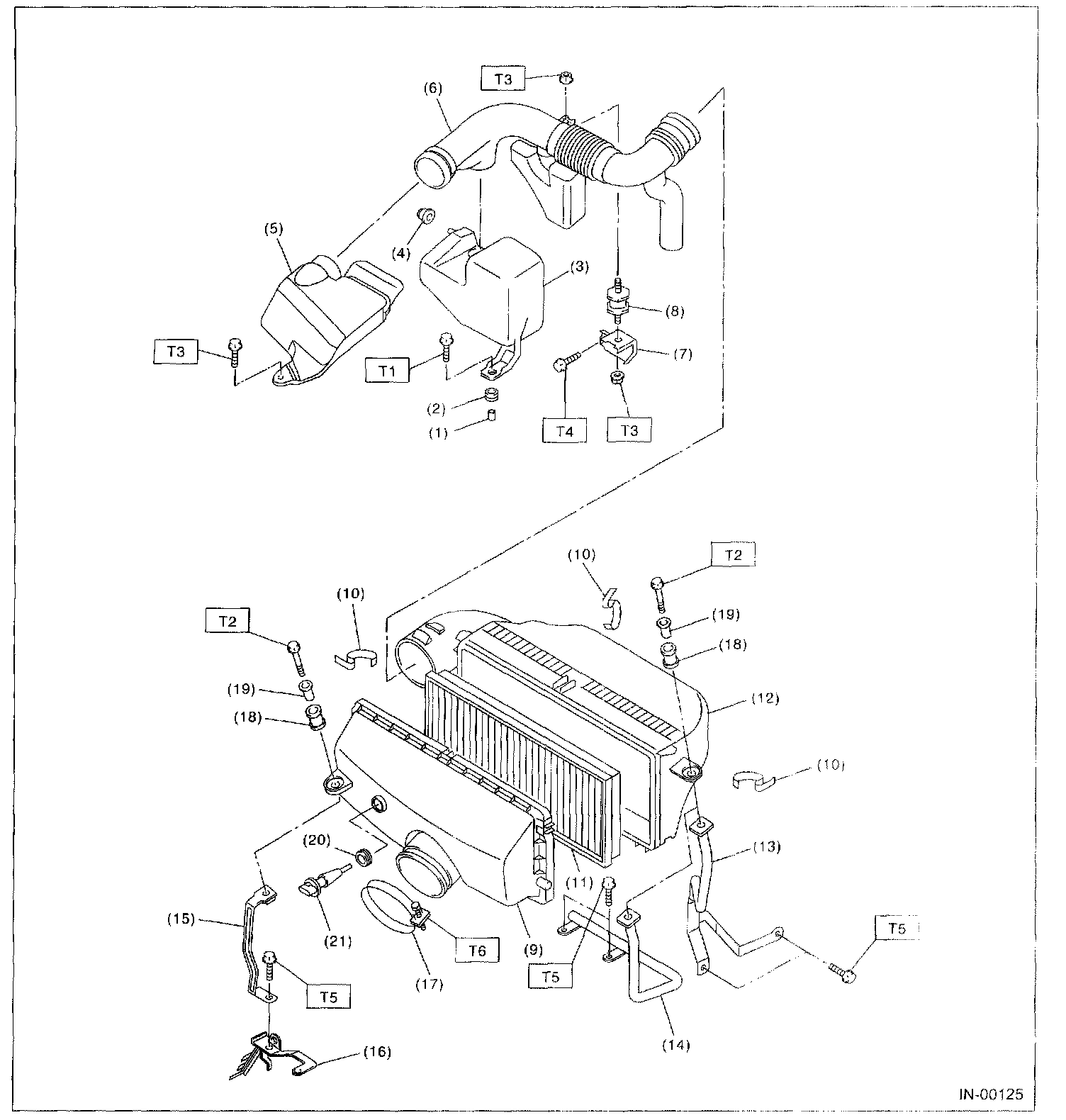

Intake Air Duct
Intake Air Duct

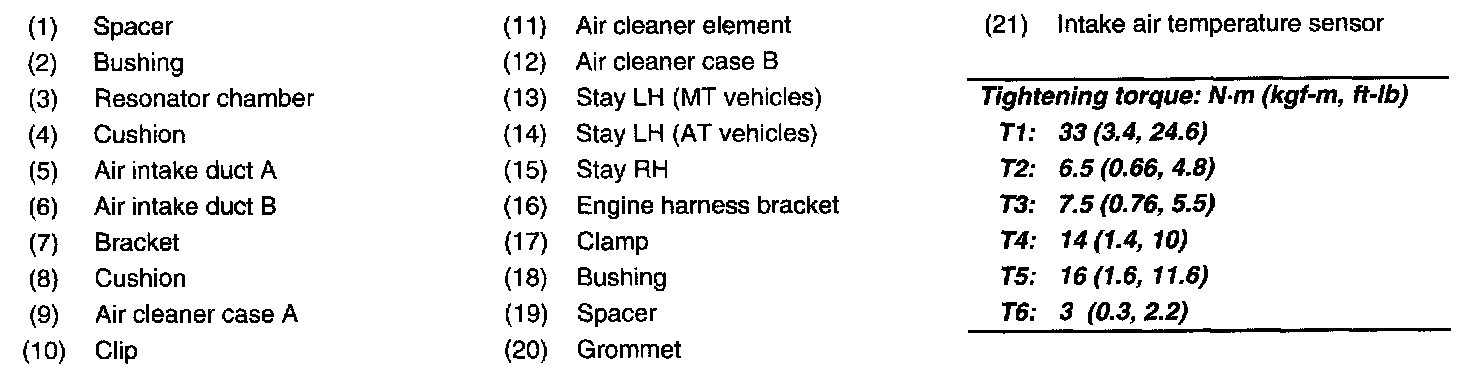

General Description Part No. 1:
General Description Part No. 2:
