Cruise Control Servo: Testing and Inspection

Actuator

INSPECTION

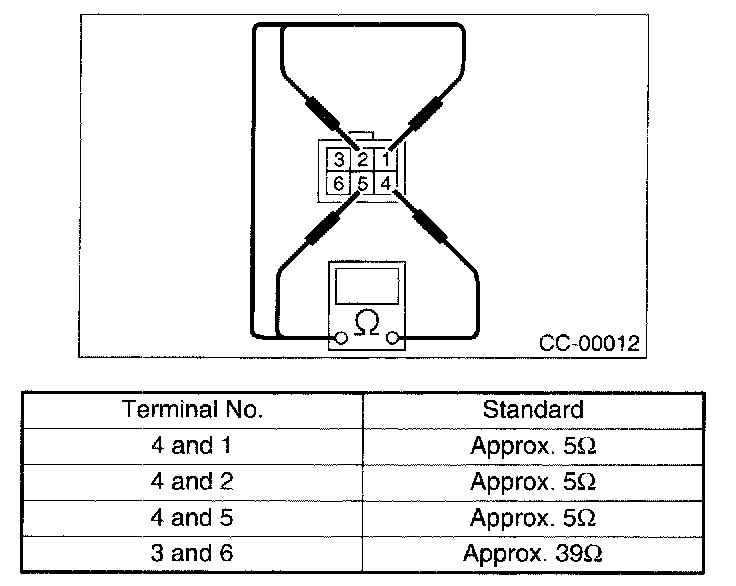

Measure the cruise control actuator resistance.
If NG, replace cruise control actuator.
