Brake Switch (Cruise Control): Testing and Inspection
Stop and Brake Switch
INSPECTION

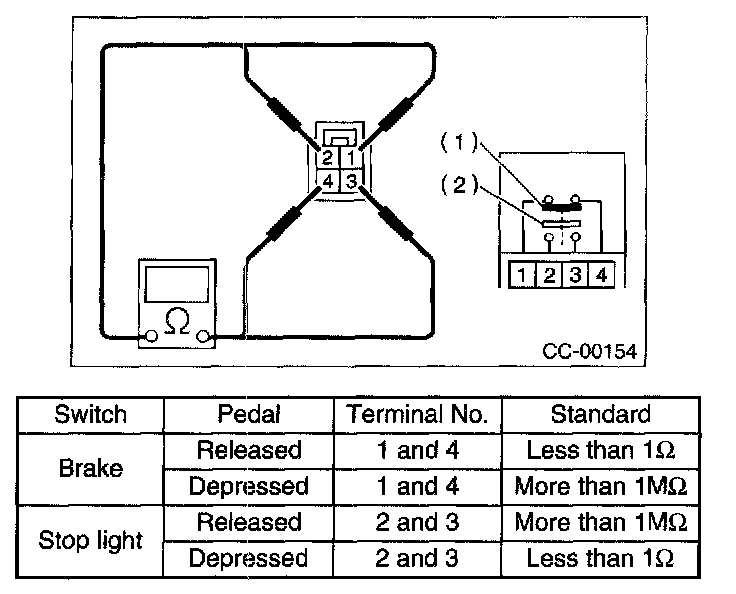

Measure the brake switch (1) and stop light switch (2) resistance.
If NG, replace the stop and brake switch.
