Subaru
>>
2004
>>
Forester F4-2.5L SOHC
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>

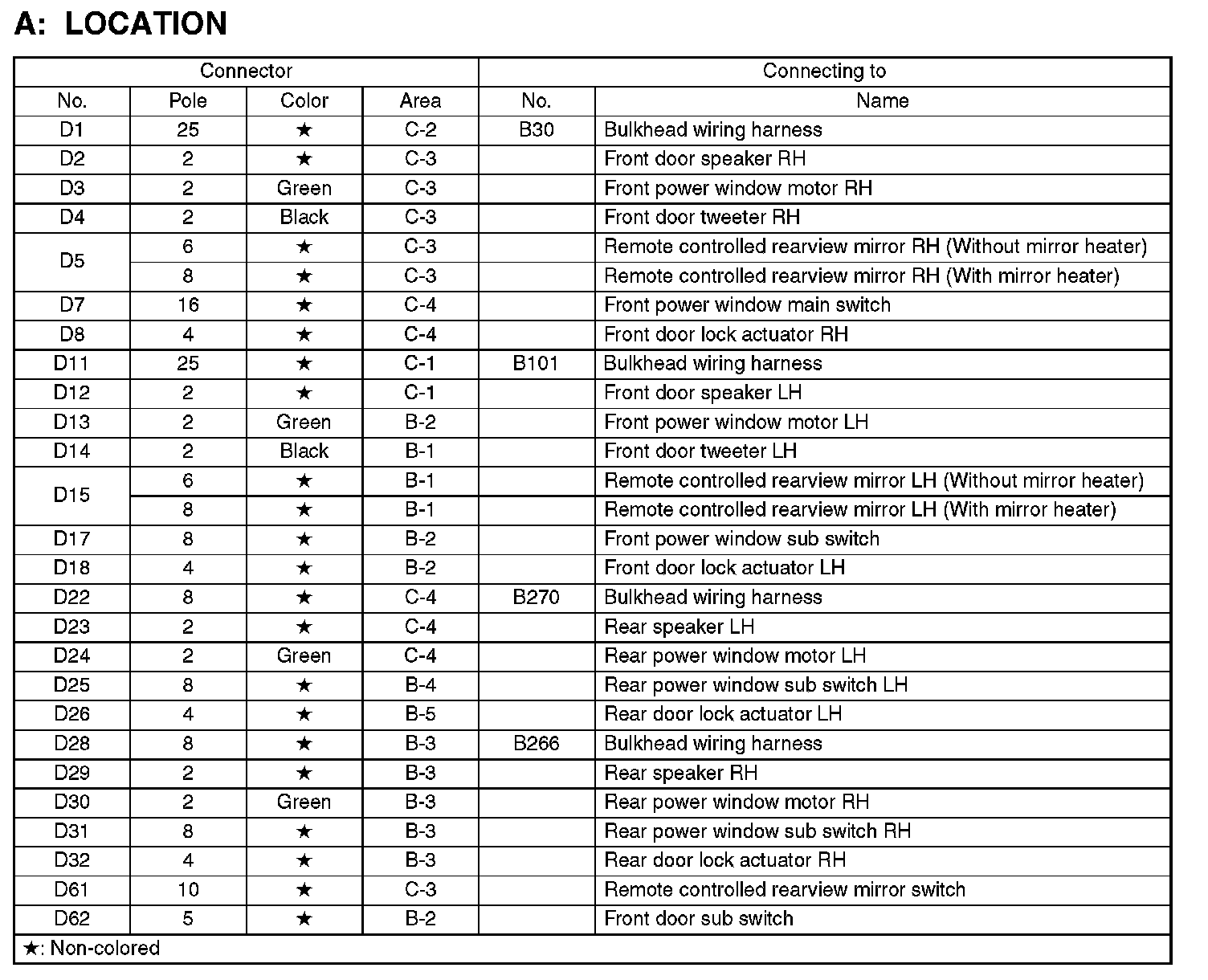

D1-D62
D1-D62
DOOR CORD
D1-D62:

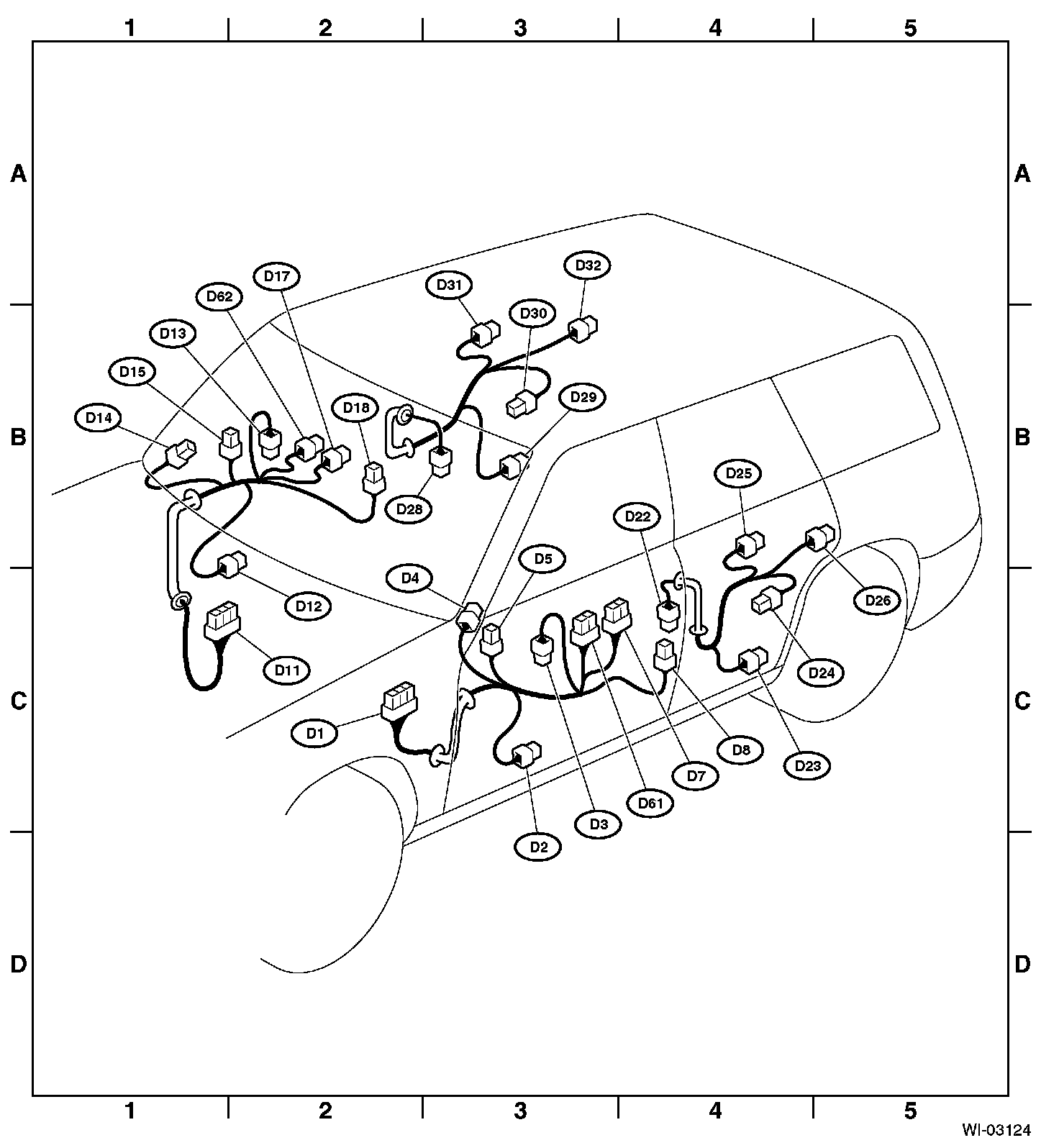

Area View:
