Outer Mirror Assembly

INSPECTION

Check to ensure that the rearview mirror moves properly when battery voltage is applied to terminals.

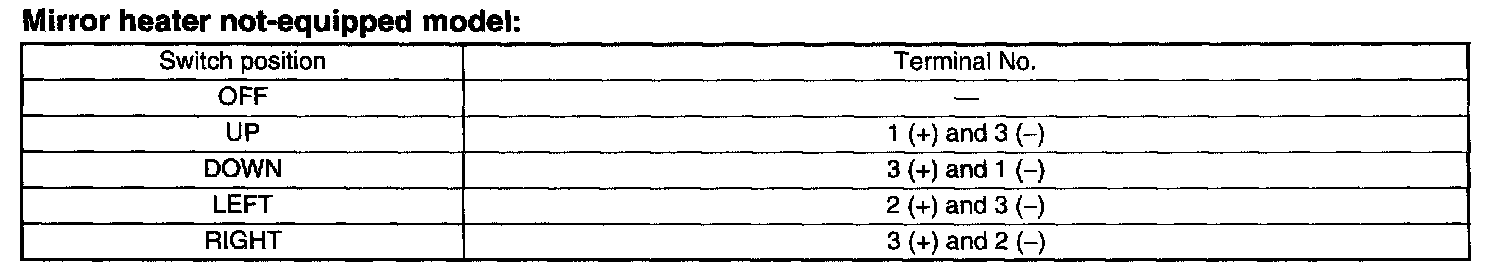

Mirror heater not-equipped model:
If NG, replace the mirror.

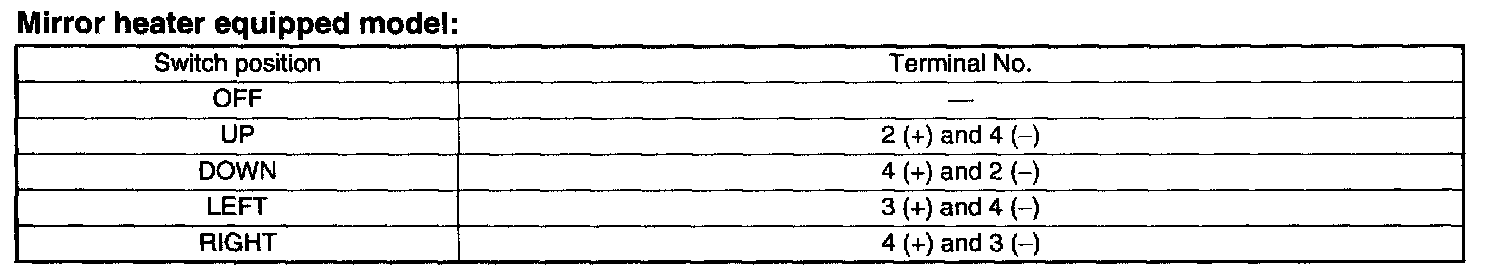

Mirror heater equipped model:
If NG, replace the mirror.
