Home >> Subaru >> 2004 >> Forester F4-2.5L SOHC >> Repair and Diagnosis >> Body and Frame >> Locks >> Keyless Entry >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptom Chart

Symptom Chart

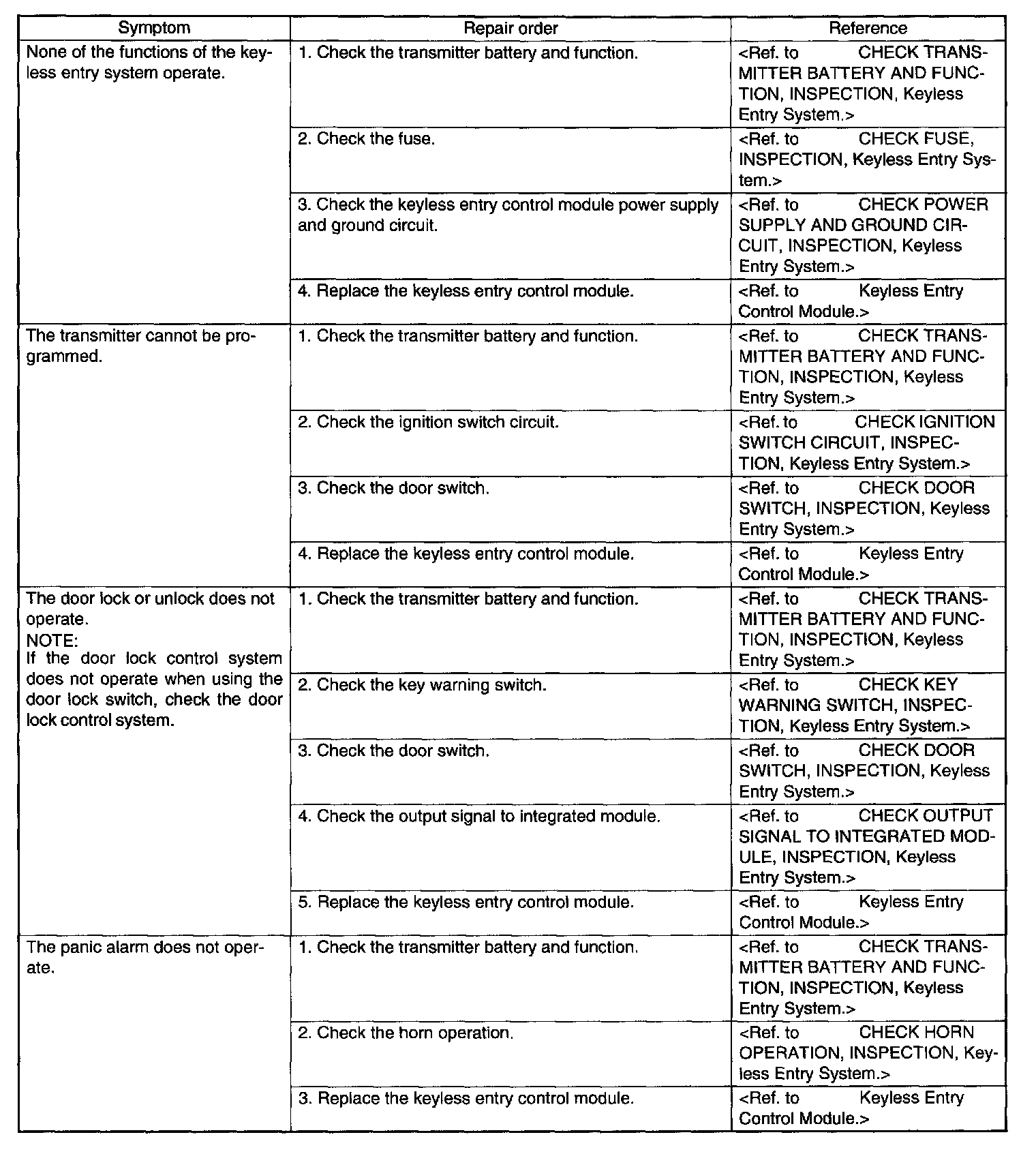

Symptom Chart part 1:

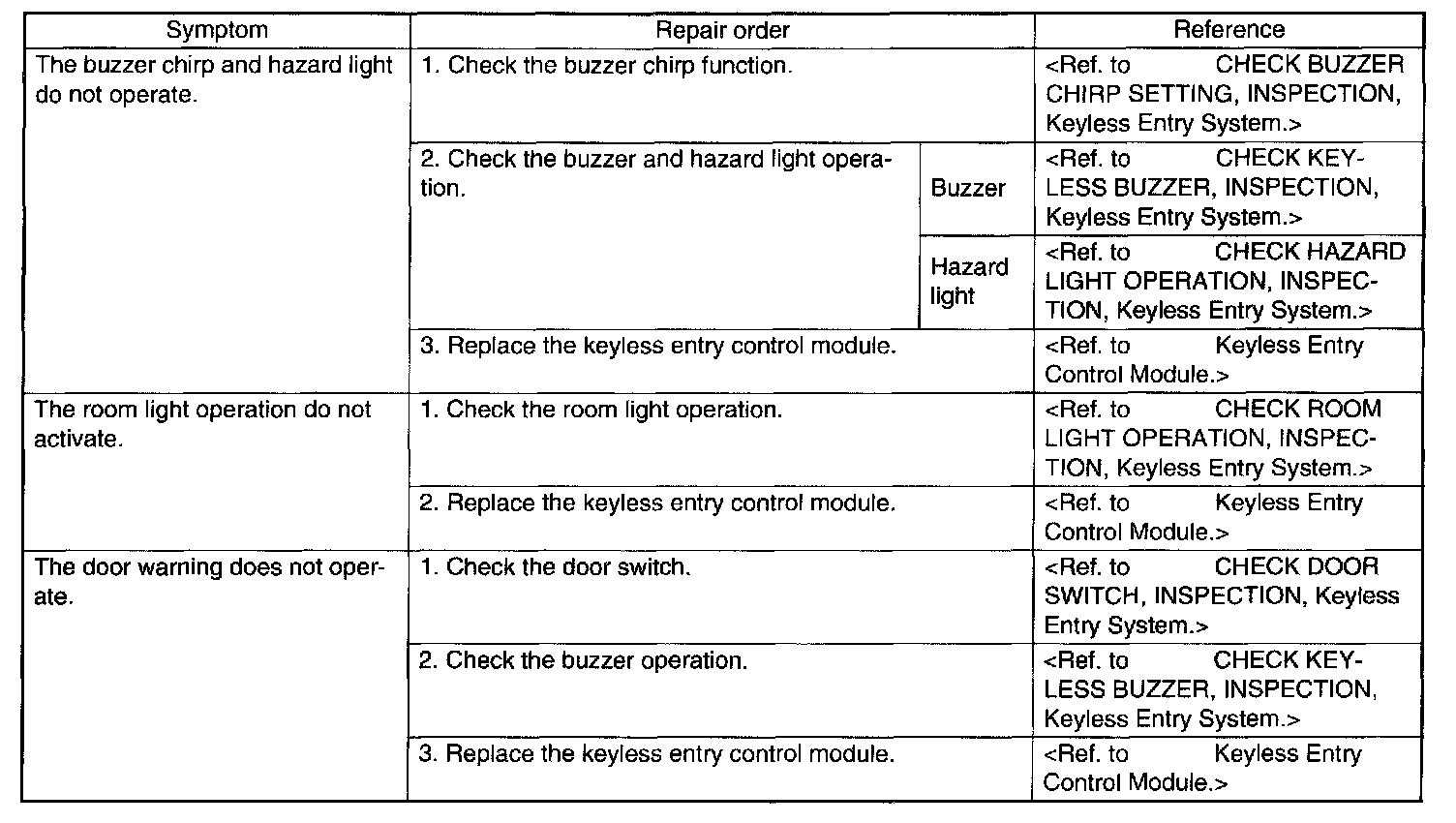

Symptom Chart part 2:
