Pinout Values and Diagnostic Parameters

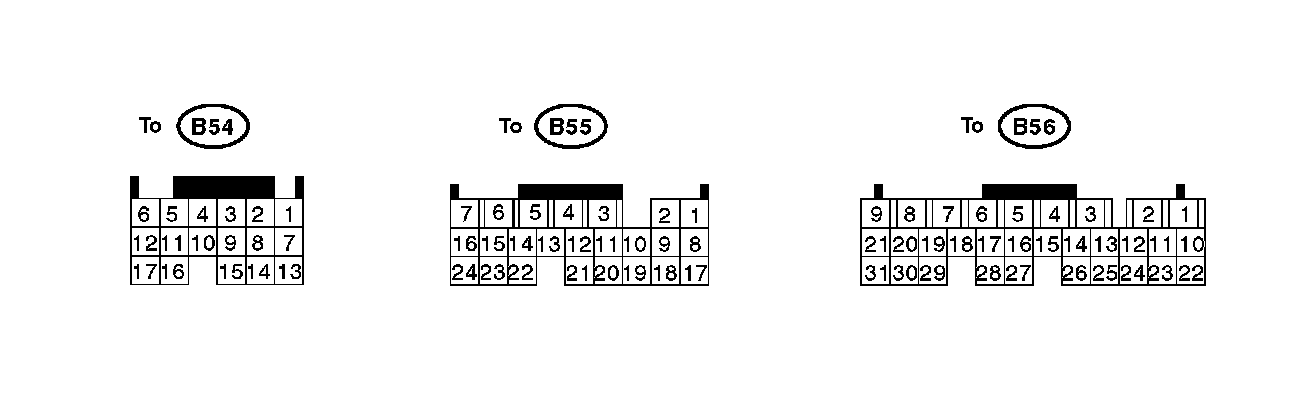

Transmission Control Module (TOM) I/O Signal

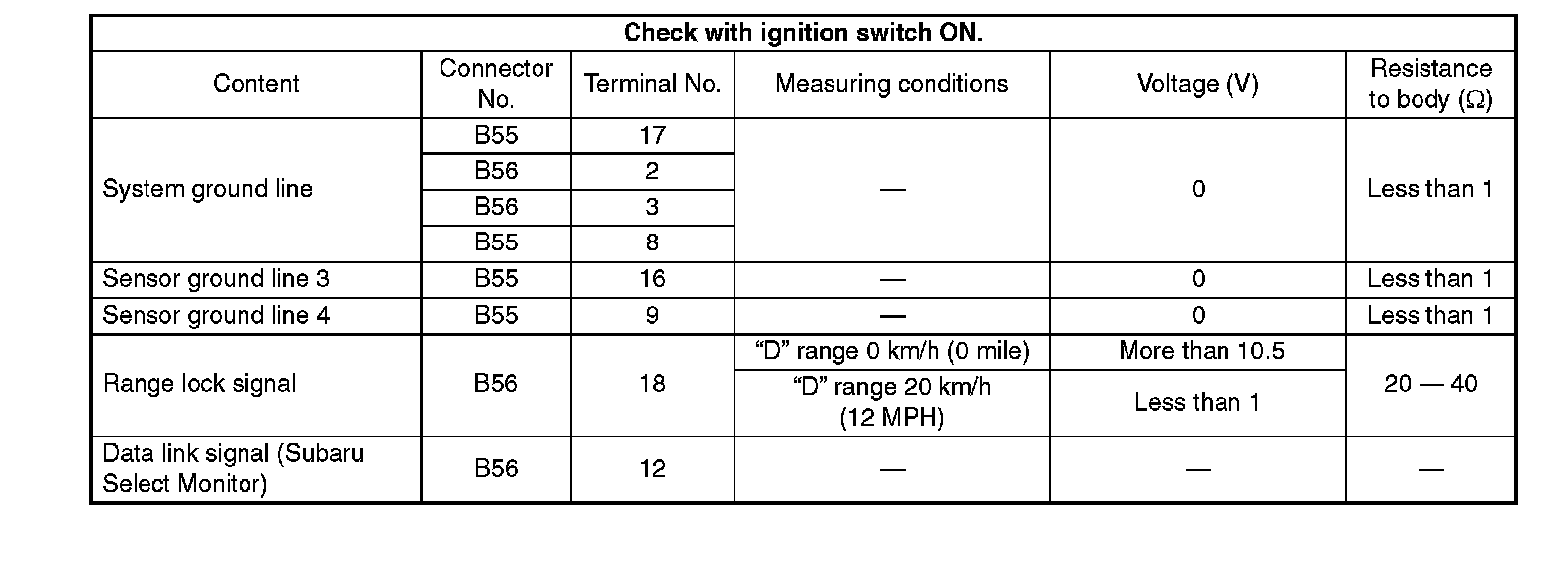

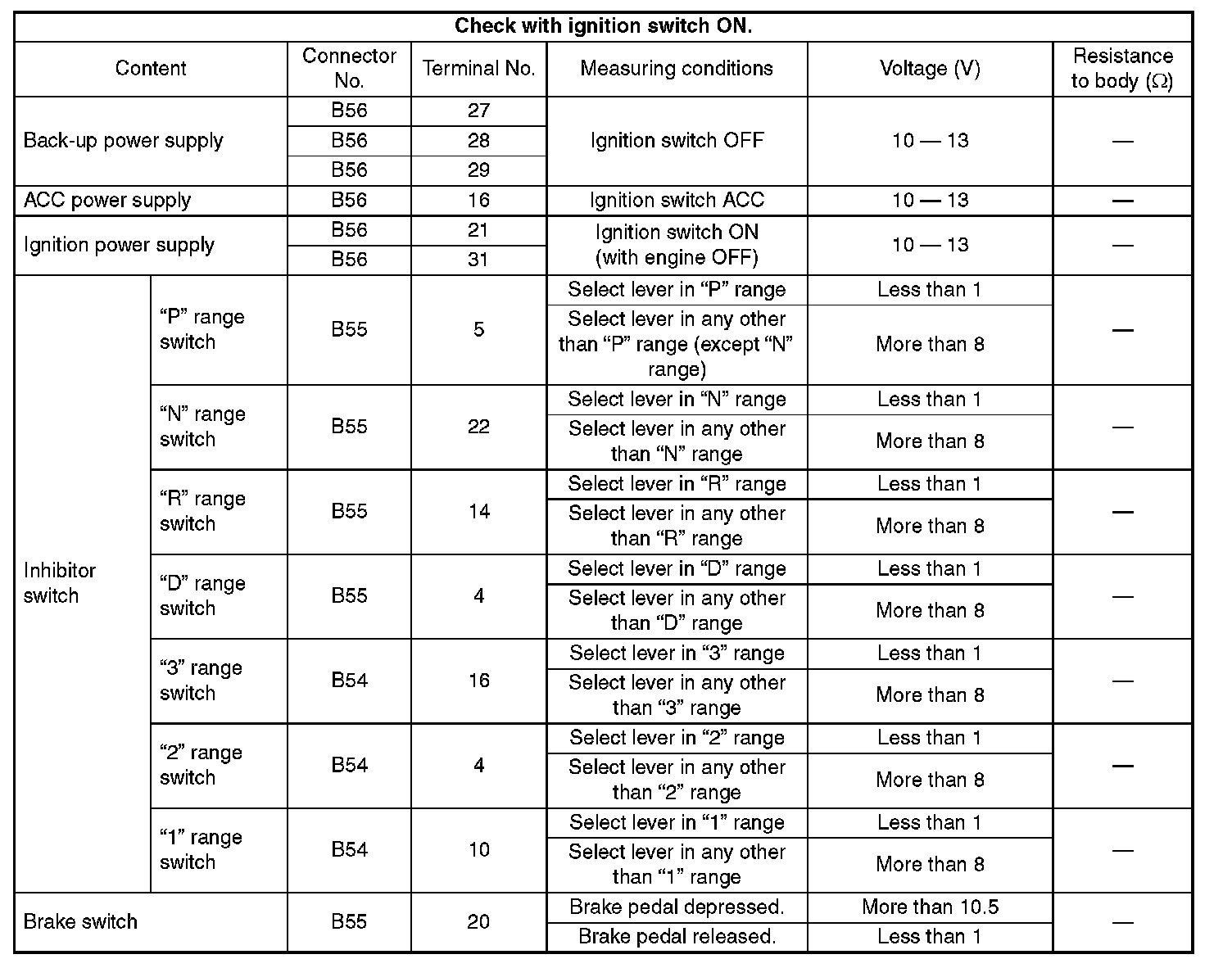

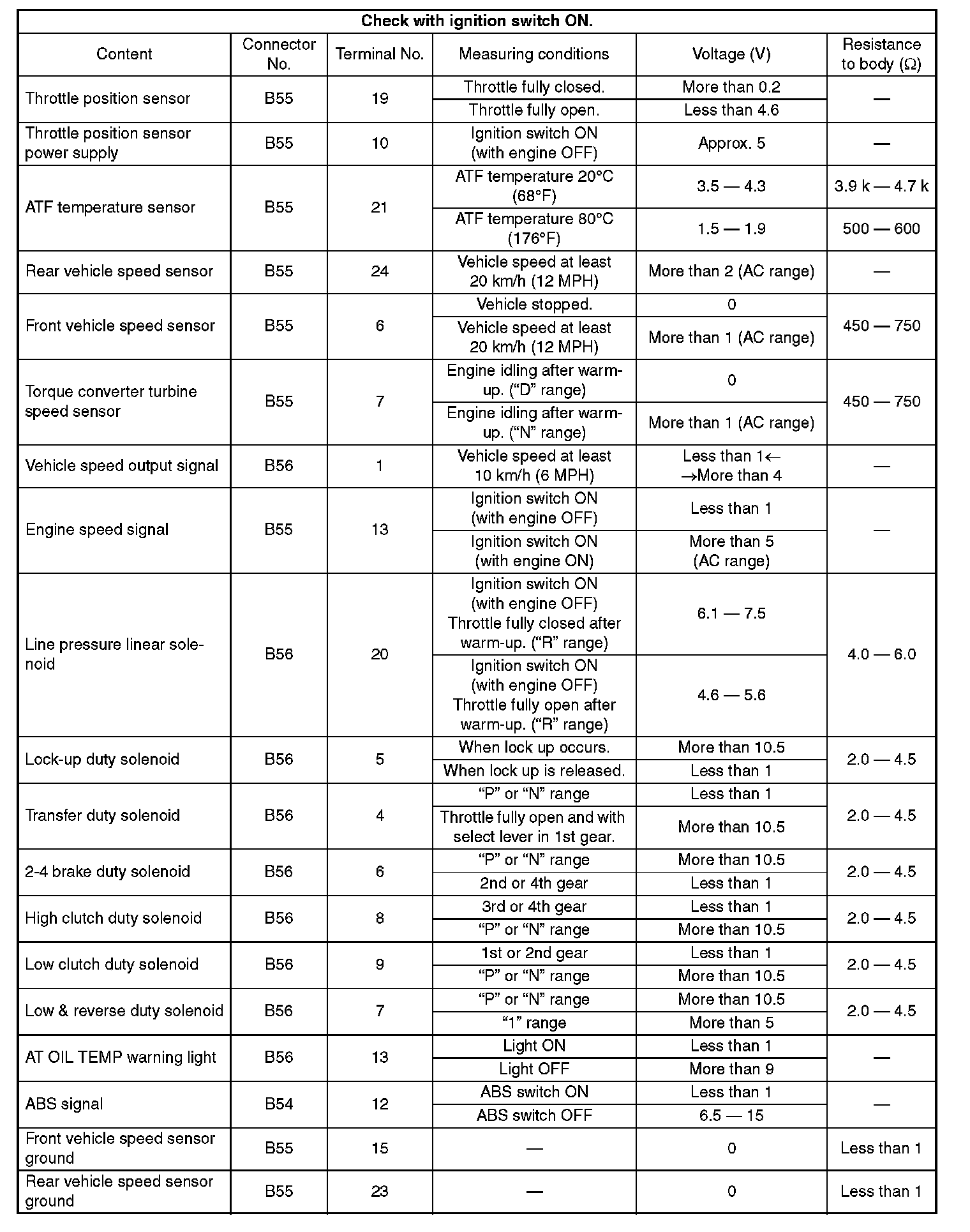

ELECTRICAL SPECIFICATION
