Initial Inspection and Diagnostic Overview
>>
Basic Diagnostic Procedure
Basic Diagnostic Procedure
Basic Diagnostic Procedure

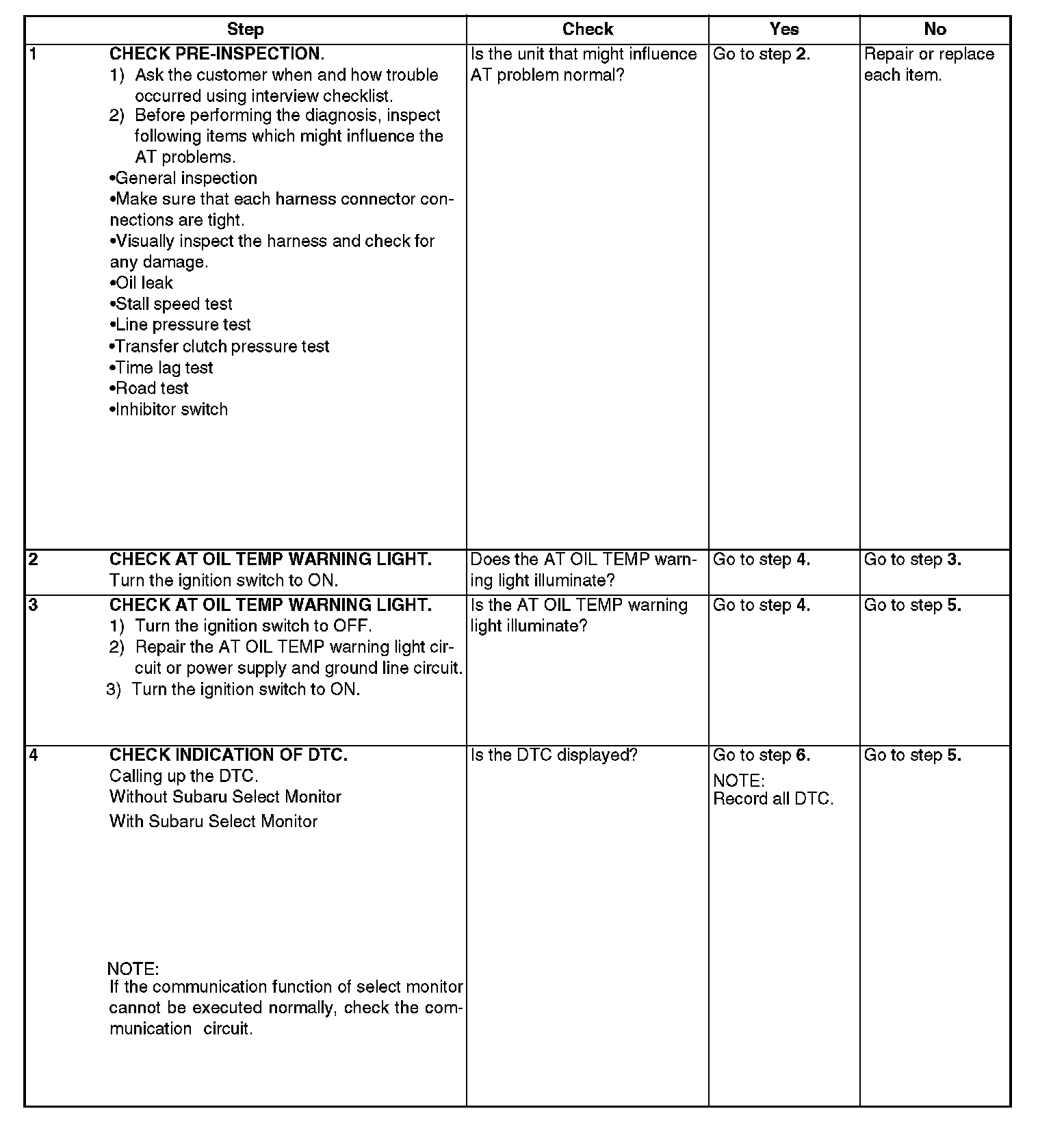

Steps 1-4:

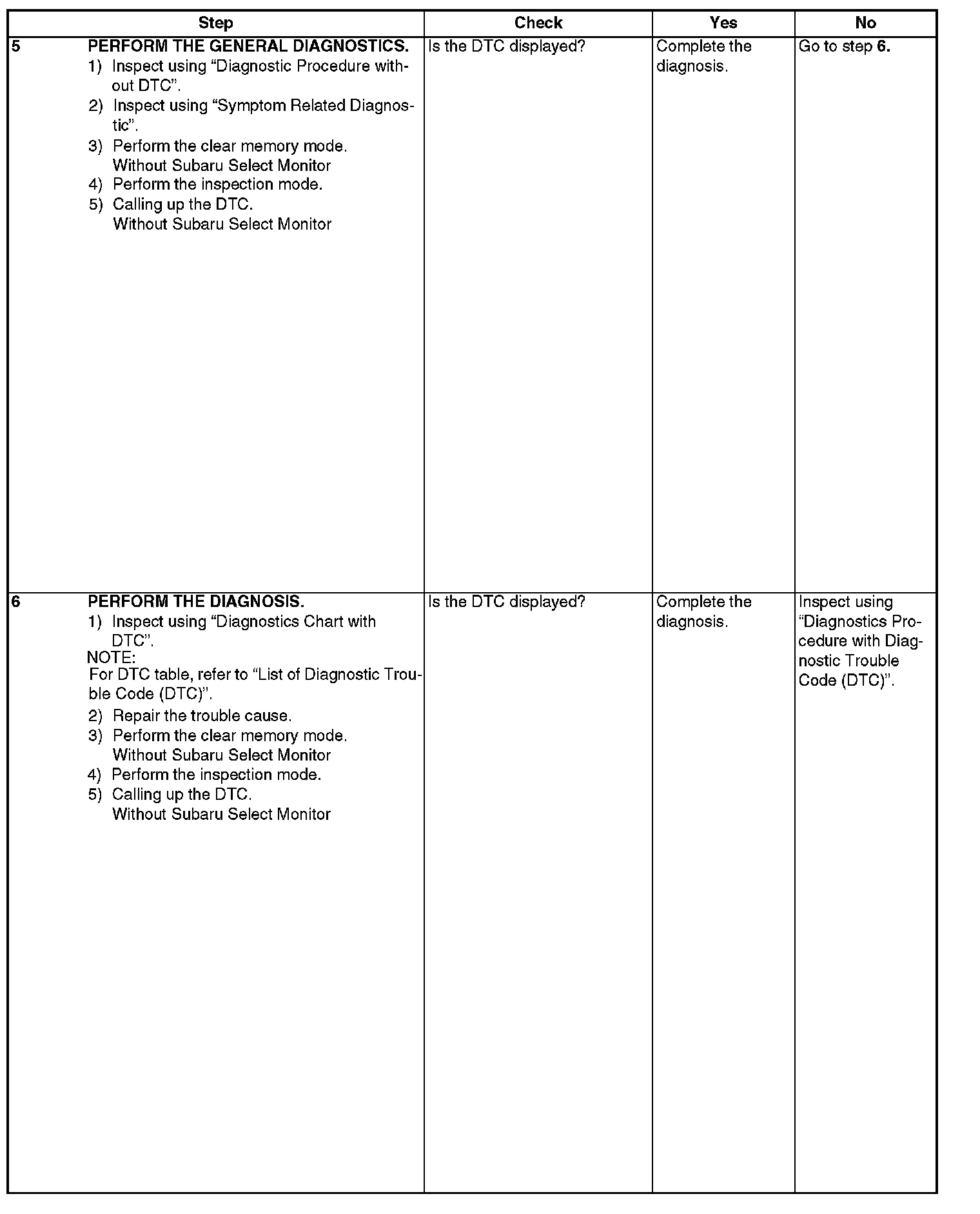

Steps 5 & 6:
PROCEDURE
