Wave Form Measurement

MEASUREMENT
Only for models with VDC system, measure input/output signal voltage.

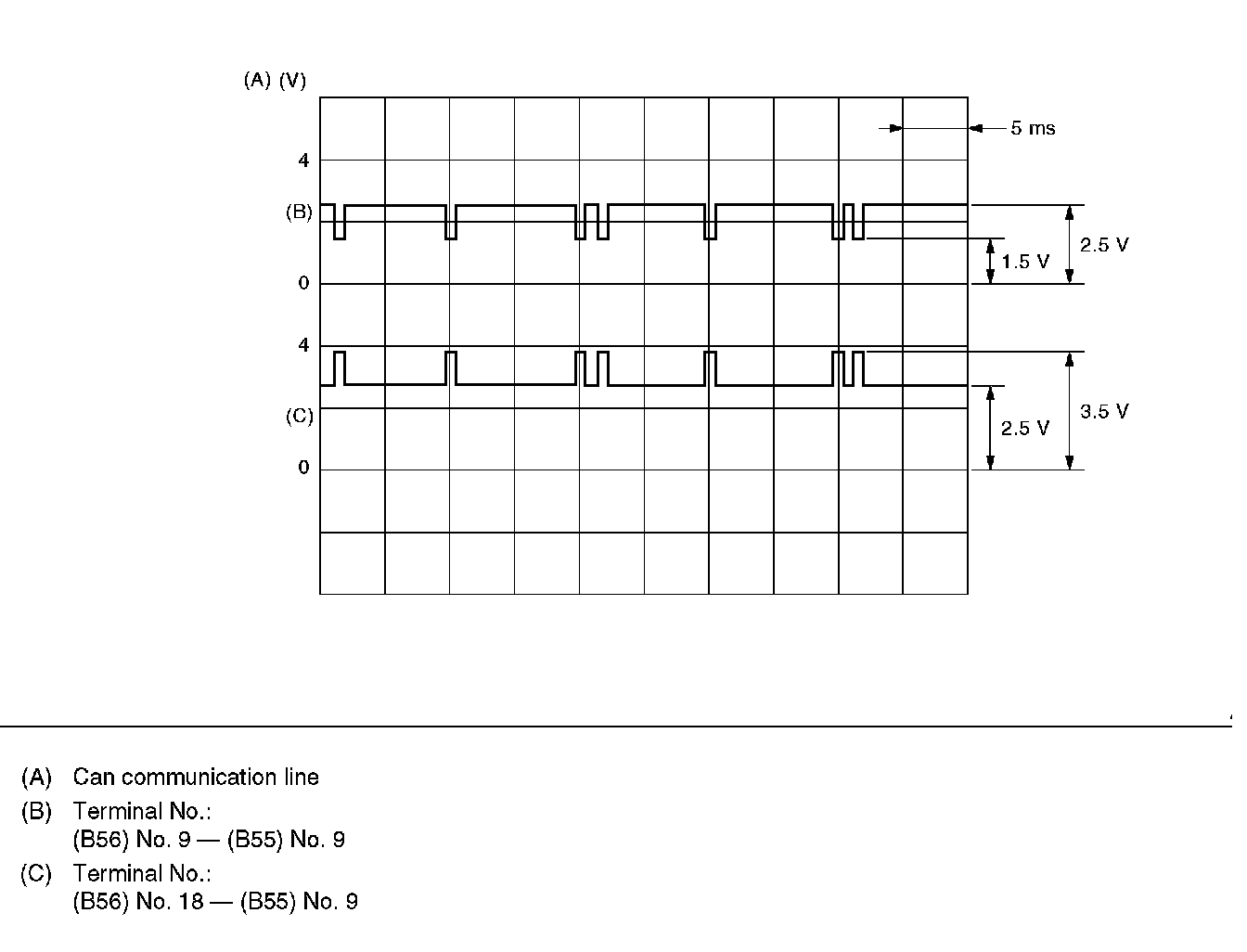

WAVEFORM
