Home >> Subaru >> 2004 >> Baja F4-2.5L SOHC >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Diagrams >> Electrical Diagrams >> Control Module Schematic

Control Module Schematic

SCHEMATIC

Part 1:




Part 2:





EXCEPT U5 MODEL

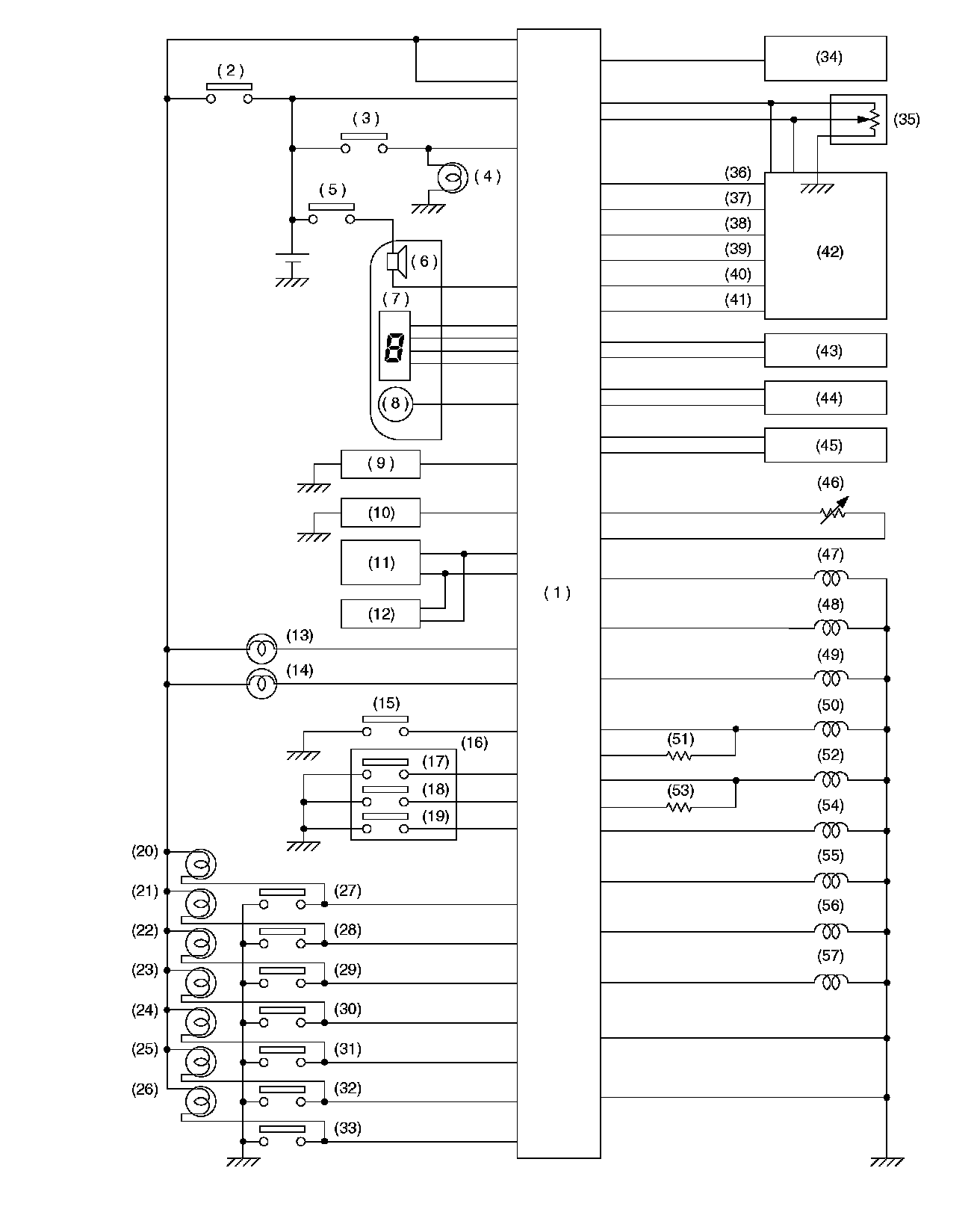

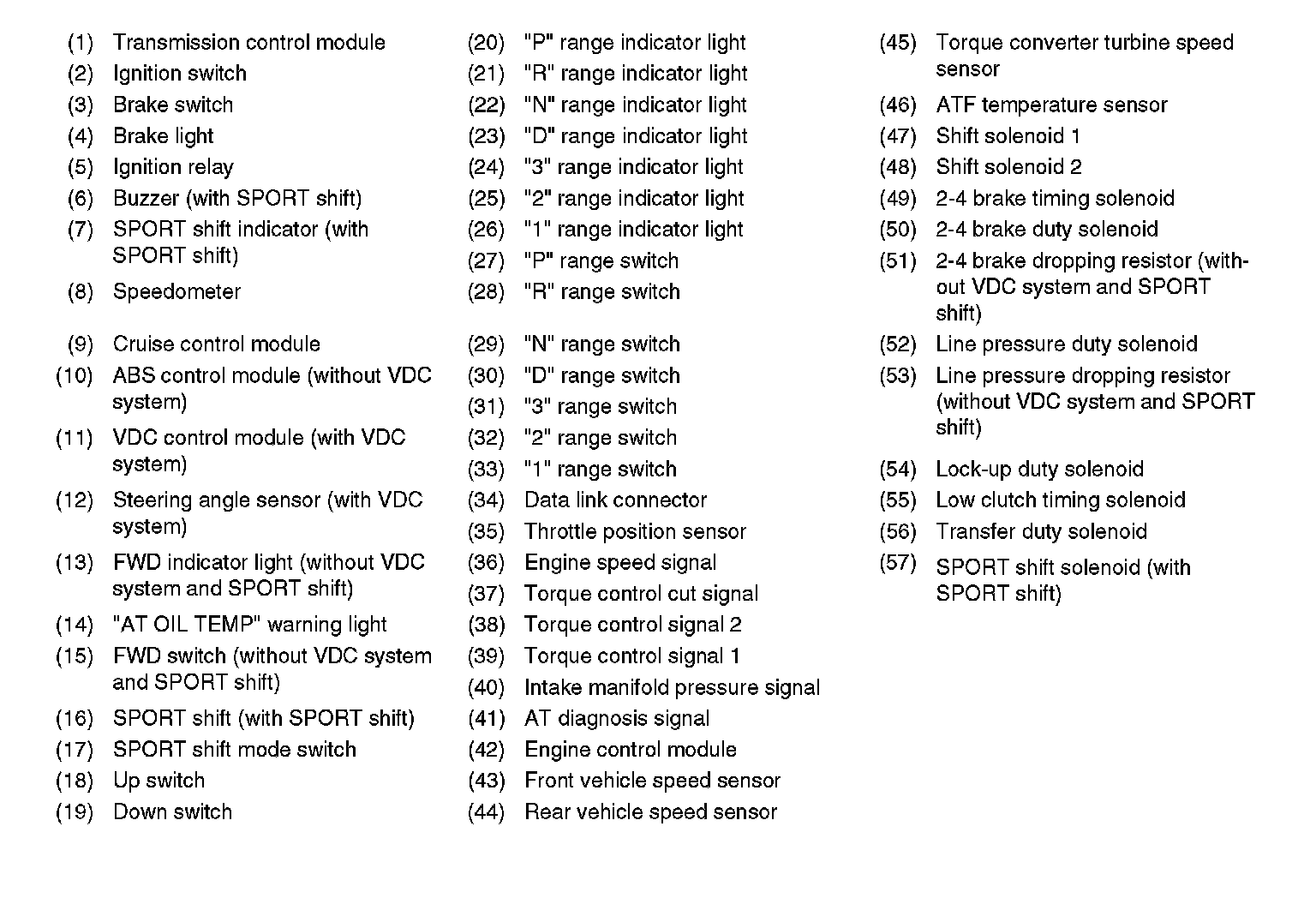

Part 1:




Part 2:

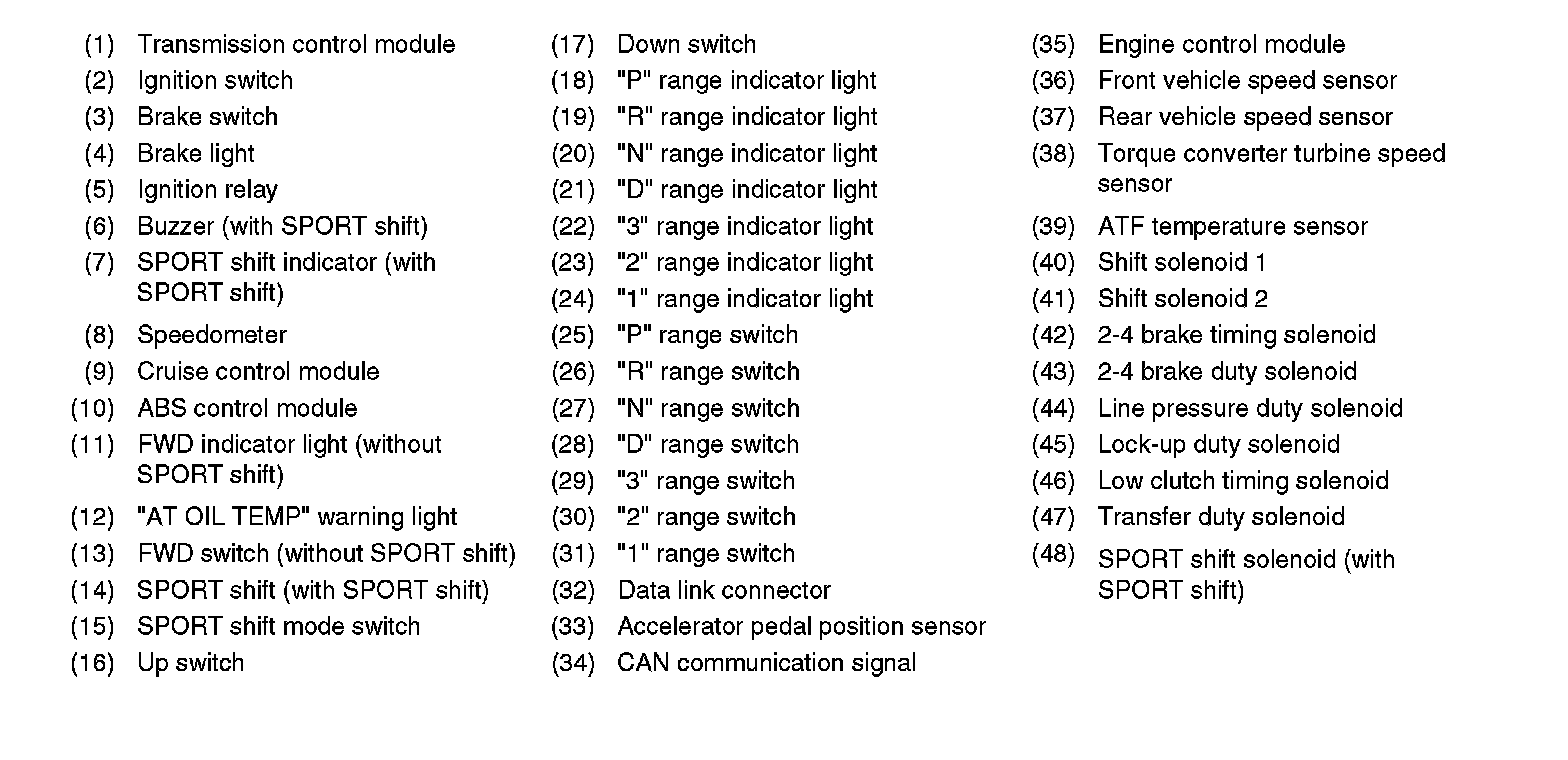

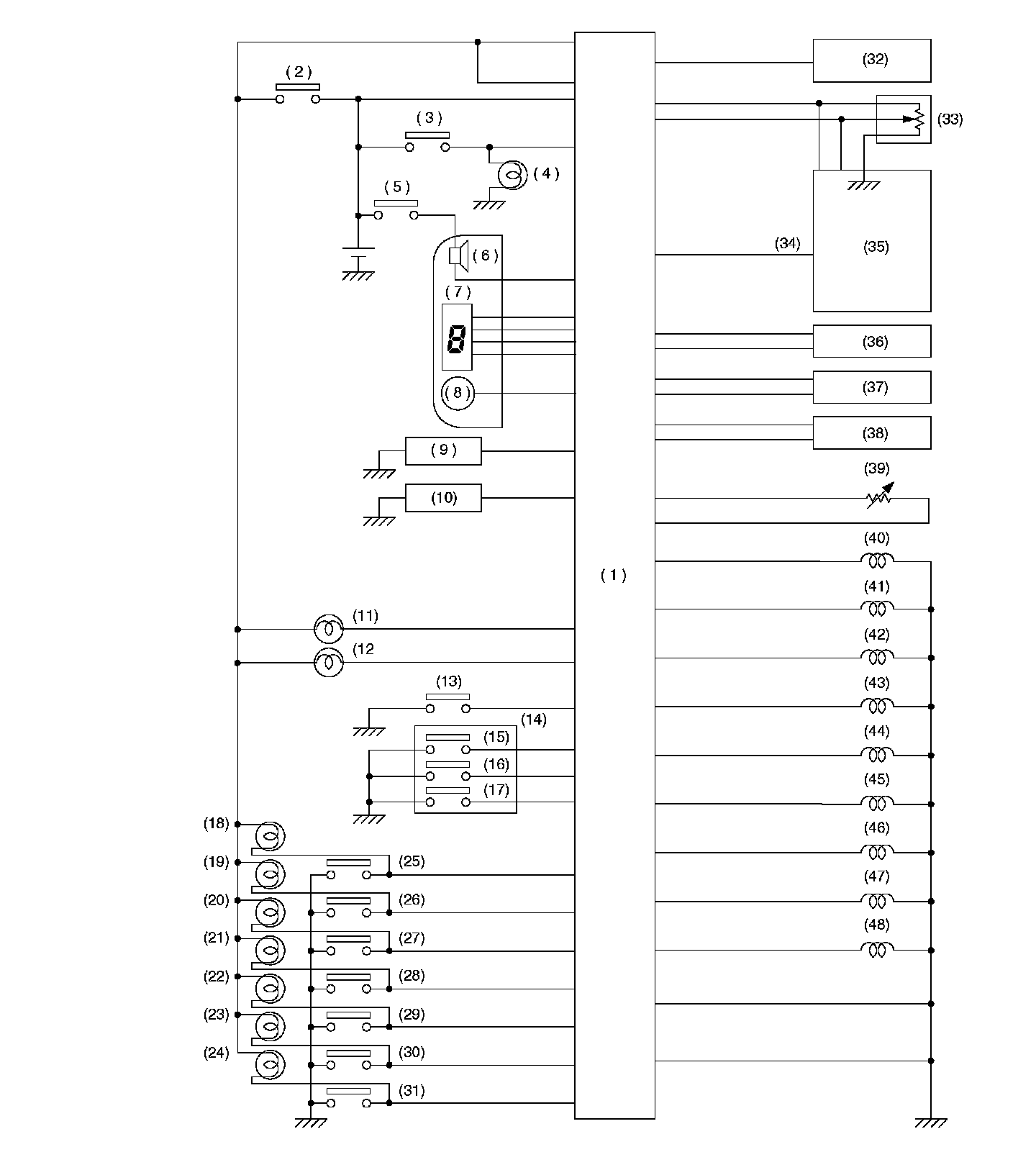

U5 MODEL
