Clutch: Testing and Inspection

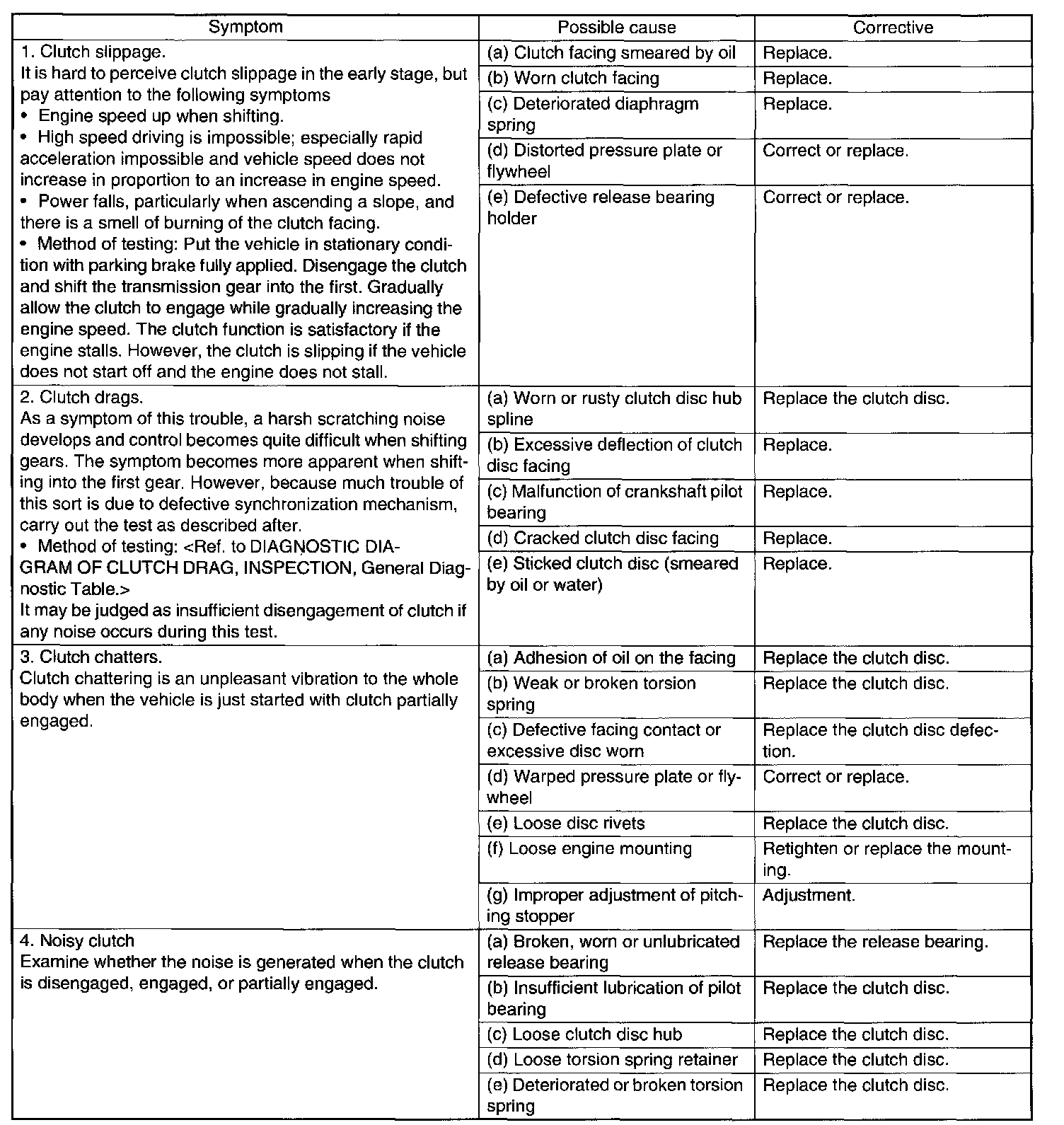

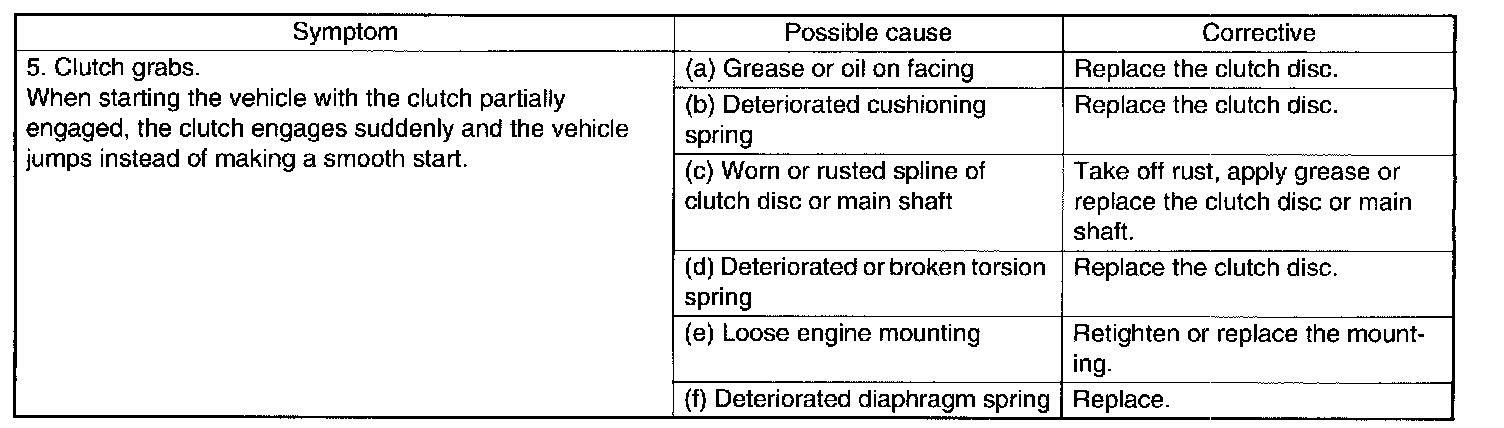

General Diagnostic Table

INSPECTION

CLUTCH

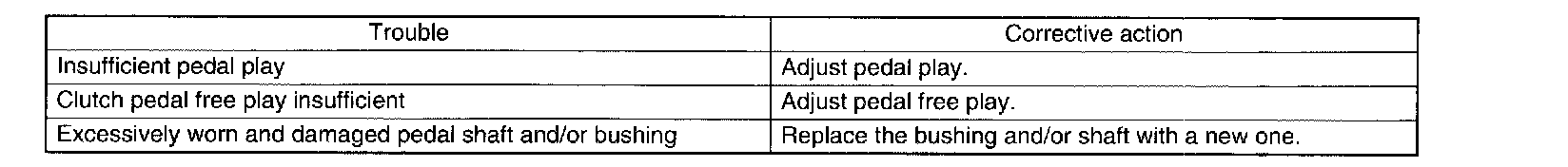

CLUTCH PEDAL

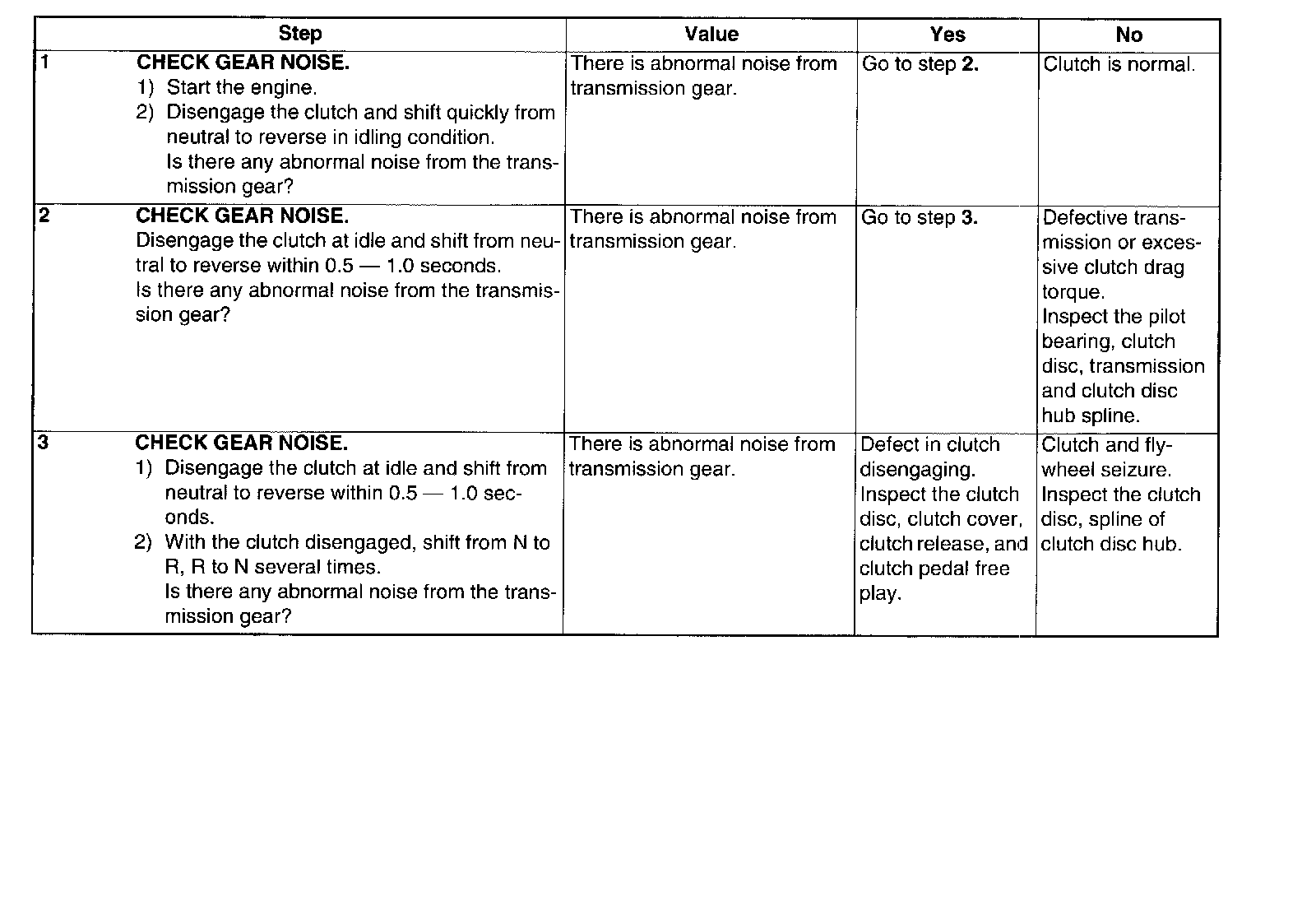

DIAGNOSTIC DIAGRAM OF CLUTCH DRAG
