Planetary Gear and Low Clutch
Planetary Gear and Low ClutchREMOVAL
1. Remove the transmission assembly from the vehicle.
2. Extract the torque converter clutch assembly.
3. Remove the input shaft.
4. Disconnect the air breather hose.
5. Lift-up lever behind the transmission harness connector and disconnect from stay.
6. Disconnect inhibitor switch connector from stay.
7. Remove the oil charger pipe, and remove the O-ring from the flange face. Attach the O-ring to the pipe.
8. Remove the oil cooler inlet and outlet pipes.
9. Remove rear vehicle speed sensor, and separate the transmission case and extension case.
10. Remove reduction driven gear.
11. Separation of torque converter clutch case and transmission case.
12. Remove the oil pump housing.
13. Take out the high clutch and reverse clutch assembly.
14. Take out the front sun gear and the thrust bearing.
15. Pull out leaf spring without folding.
NOTE: Remove it while pressing down on lower leaf spring.
16. Remove snap ring and thrust needle bearing.
17. Take out retaining plate, drive plate and driven plate of 2-4 brake.
18. Take out the thrust needle bearing, planetary gear assembly and the low clutch assembly.
INSTALLATION

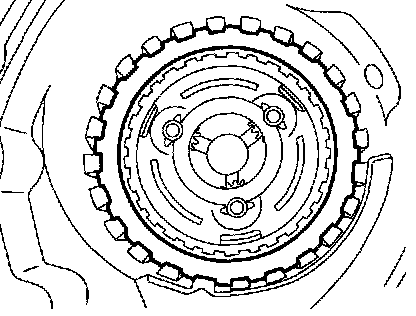

1. Install planetary gear and low clutch assembly to transmission case.
Install carefully while rotating the low clutch and planetary gear assembly slowly paying special attention not to damage the seal ring.
2. Install the pressure plate, driven plate, drive plate, retaining plate and snap ring.
3. Be careful not to mistake the location of the leaf spring to be inserted.
4. Install thrust needle bearing in the correct direction.

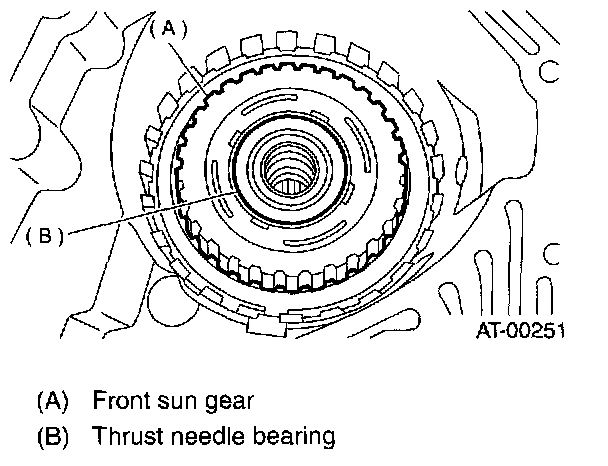

5. Install front sun gear and thrust needle bearing.

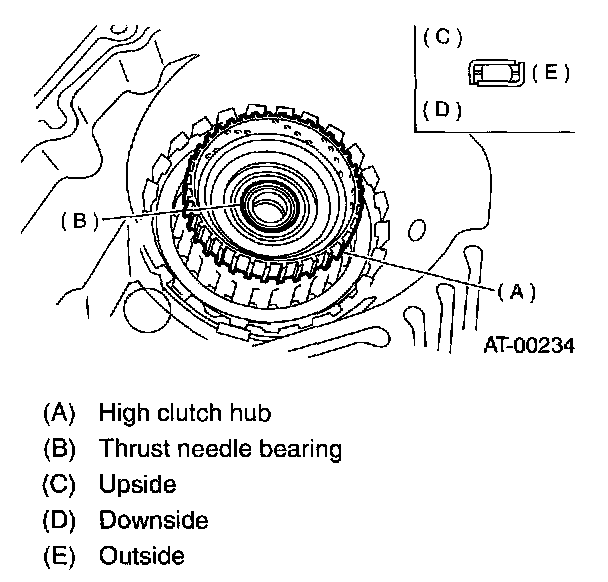

6. Install the high clutch hub. Attach the thrust needle bearing to the hub with Vaseline and install the hub by correctly engaging the splines of the front planetary carrier.
7. Install the thrust needle bearing in proper direction.
8. Install the high clutch assembly.
9. Install the thrust needle bearing in proper direction.
10. Install oil pump housing assembly with new gasket.
11. Install torque converter clutch case.
12. Insert inhibitor switch and transmission connector into stay.
13. Install air breather hose.
14. Install oil cooler pipes.
15. Install the oil charger pipe with O-ring.
16. Insert the input shaft while turning lightly by hand.
Normal protrusion A: 50 - 55 mm (1.97 - 2.17 inch)
17. Install the torque converter clutch assembly.
18. Install the transmission assembly to the vehicle.
DISASSEMBLY

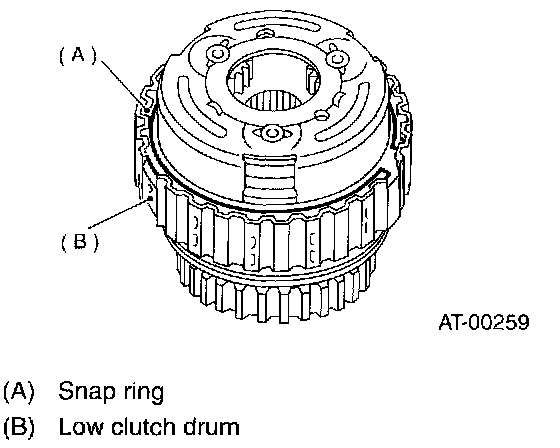

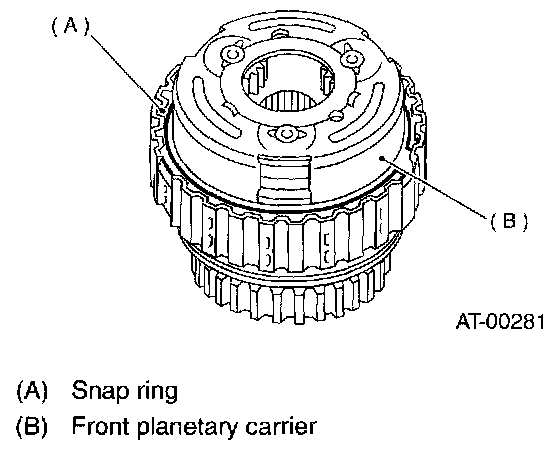

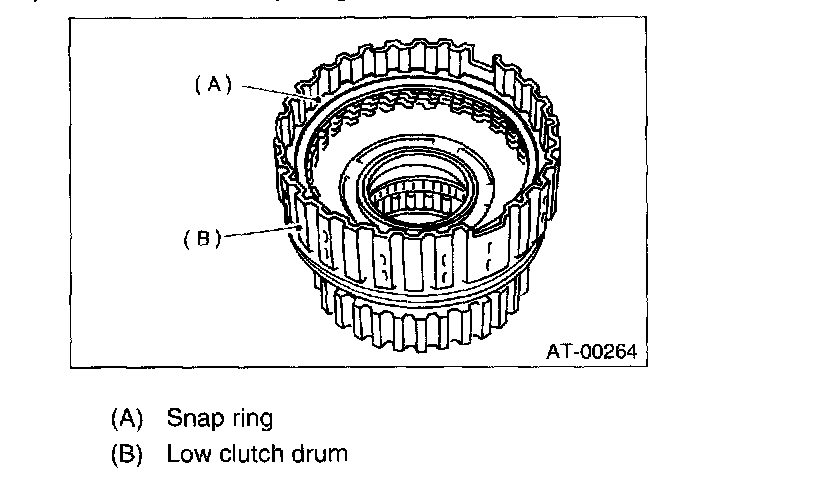

1. Remove snap ring from the low clutch drum.
2. Take out front planetary carrier.

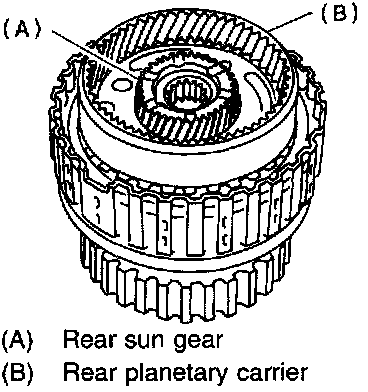

3. Take out rear sun gear.

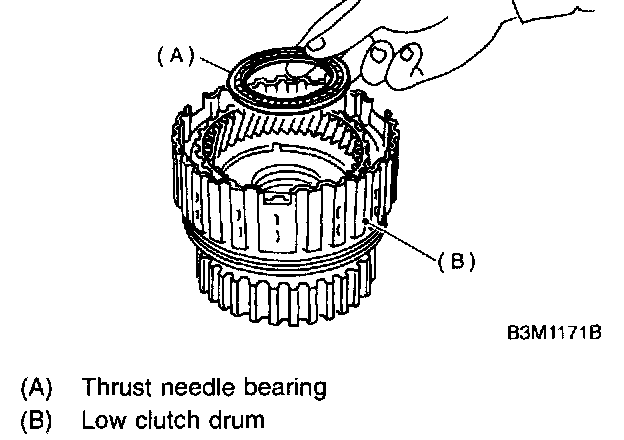

4. Take out rear planetary carrier, washer and thrust needle bearing.

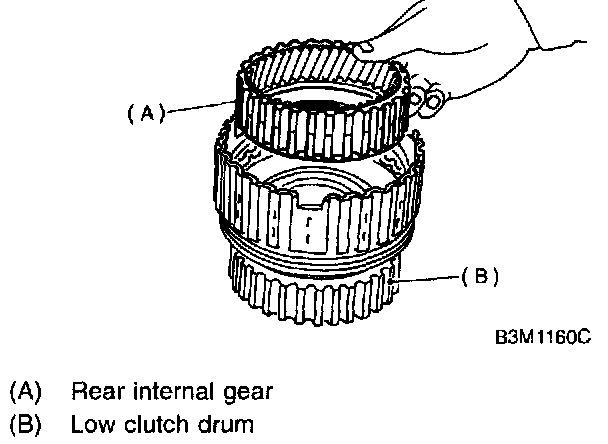

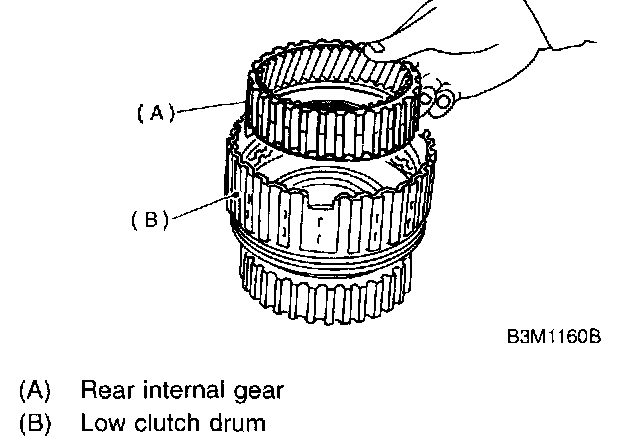

5. Take out rear internal gear.
6. Remove the snap ring from the low clutch drum.

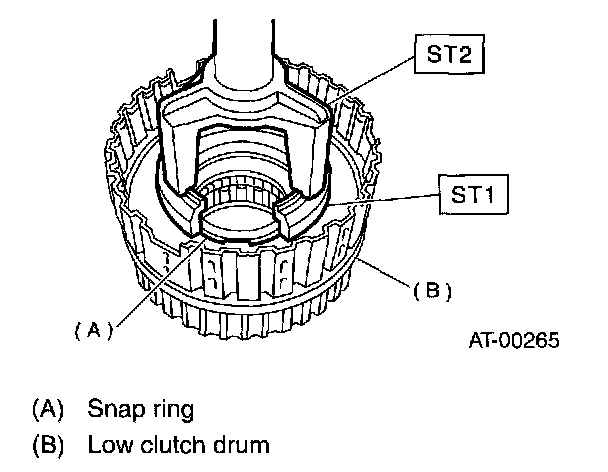

7. Compress the spring retainer, and remove the snap ring from the low clutch drum, by using ST1 and ST2.
ST1 498627100 SEAT
ST2 398673600 COMPRESSOR
8. Remove one-way clutch.

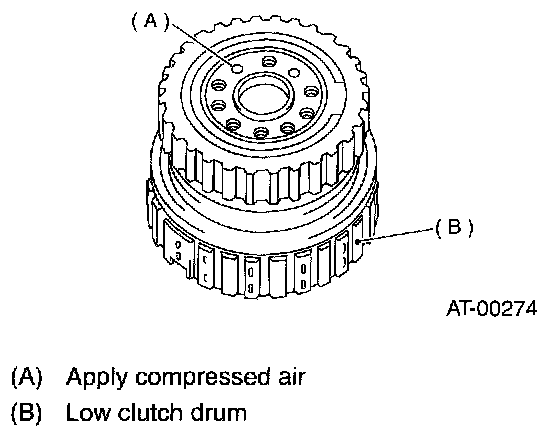

9. Install the one-way clutch inner race to the low clutch drum, and apply compressed air to remove the low clutch piston.
10. Remove the one-way clutch inner race.
11. Remove the one-way clutch after taking out the snap ring.
12. Remove the needle bearing after taking out the snap ring.
ASSEMBLY
1. Install lathe cut seal ring to low clutch piston.

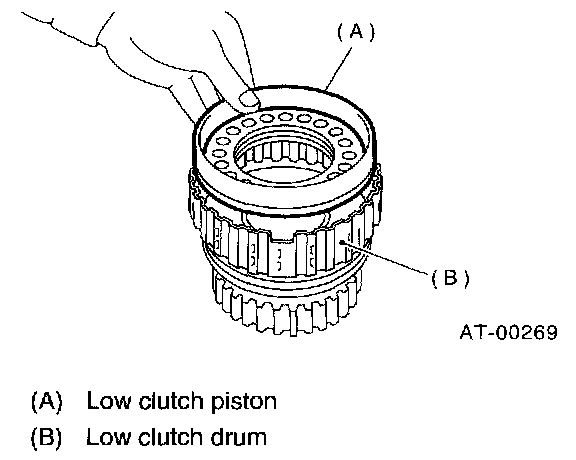

2. Fit the low clutch piston to the low clutch drum.

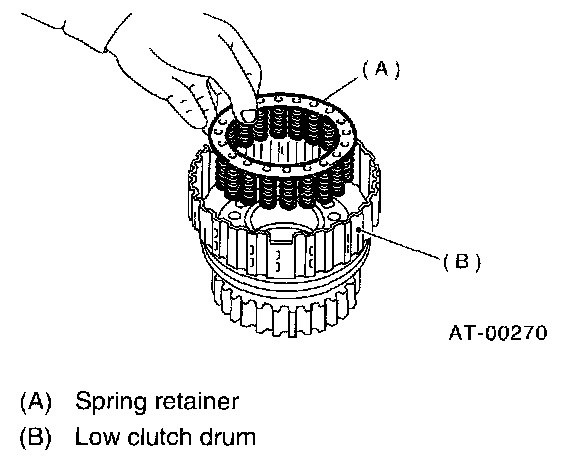

3. Install spring retainer to low clutch piston.

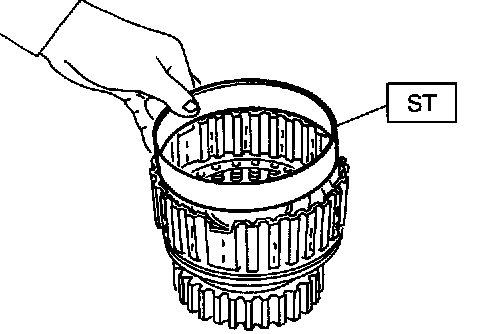

4. Install ST to low clutch drum.
ST 498437100 LOW CLUTCH PISTON GUIDE

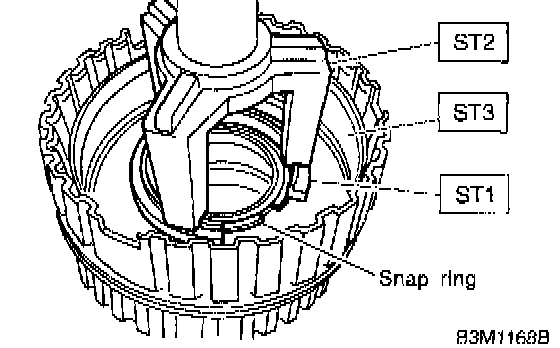

5. Set the cover on the piston with a press using ST1 and ST2, and attach the snap ring. At this time, be careful not to fold cover seal during installation.
ST1 498627100 SEAT
ST2 398673600 COMPRESSOR
ST3 498437100 LOW CLUTCH PISTON GUIDE

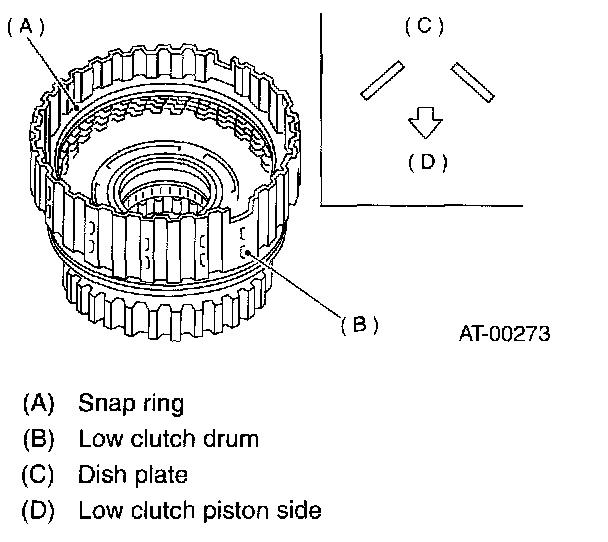

6. Install the dish plate, driven plates, drive plates, and retaining plate, and secure with the snap ring.
7. Check the low clutch for operation.
1. Remove one-way clutch.

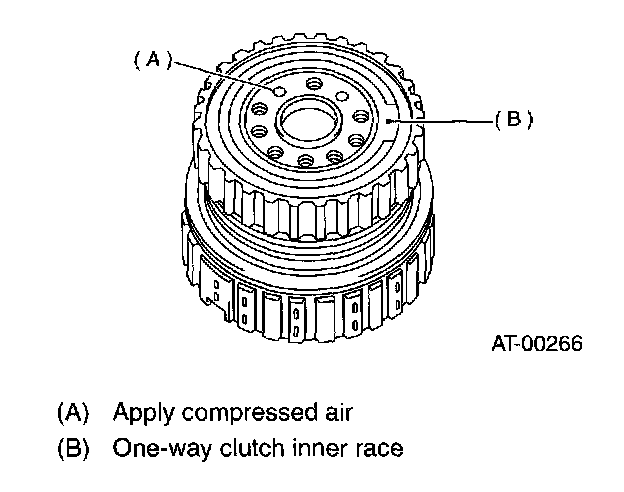

2. Set the one-way clutch inner race, and apply compressed air for checking.
8. Checking low clutch clearance.

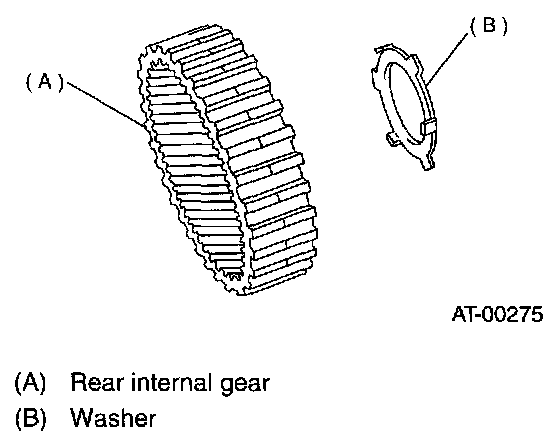

9. Install washer to rear internal gear.
10. Install rear internal gear.
11. Install thrust needle bearing in the correct direct-on.
12. Install the washer by aligning protrusion of washer and hole of rear planetary carrier.
13. Install rear planetary carrier to low clutch drum.
14. Install thrust needle bearing in the correct direction.

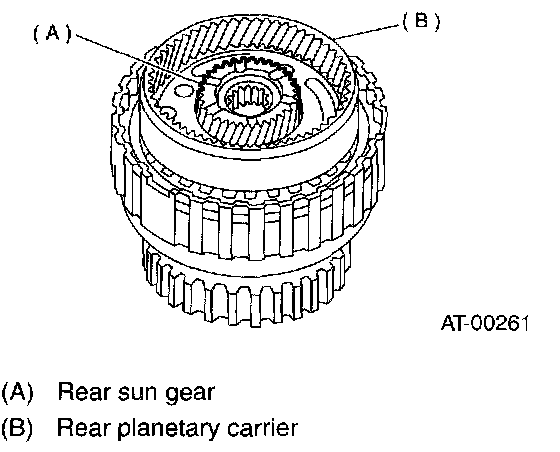

15. Install the rear sun gear in proper direction.
16. Install the thrust needle bearing in proper direction.
17. Install front planetary carrier to low clutch drum.
18. Install snap ring to low clutch drum.
19. Install the needle bearing, and secure with the snap ring.
20. Install the one-way clutch, one-way clutch inner race and plate, and secure with the snap ring.
21. Set the inner race. Make sure that the forward clutch is free in the clockwise direction and locked in the counterclockwise direction, as viewed from the front of the vehicle.
INSPECTION
1. Inspect the following items.
^ Drive plate facing for wear and damage
^ Snap ring for wear, return spring for breakage or setting, and spring retainer for deformation
^ Lip seal and lathe cut seal ring for damage
^ Piston check ball for operation
^ Measure the total end play and adjust to within specifications.
2. Place the same thickness of shim on both sides to prevent retaining plate from tilting.
3. Inspect clearance between retaining plate and operation of the low clutch.
Standard value: 0.7 - 1.1 mm (0.028 - 0.043 inch)
Allowable limit: 1.6 mm (0.063 inch)

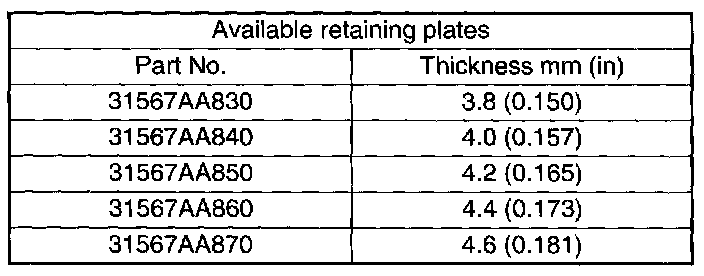

4. If the clearance is out of the specified range, select a proper retaining plate so that the standard clearance can be obtained.
