Check MIL Does Not Come ON

CHECK ENGINE MALFUNCTION INDICATOR LAMP (MIL) DOES NOT COME ON.

DIAGNOSIS
The CHECK ENGINE malfunction indicator lamp (MIL) circuit is open or shorted.

TROUBLE SYMPTOM
When ignition switch is turned ON (engine OFF), MIL does not come on.

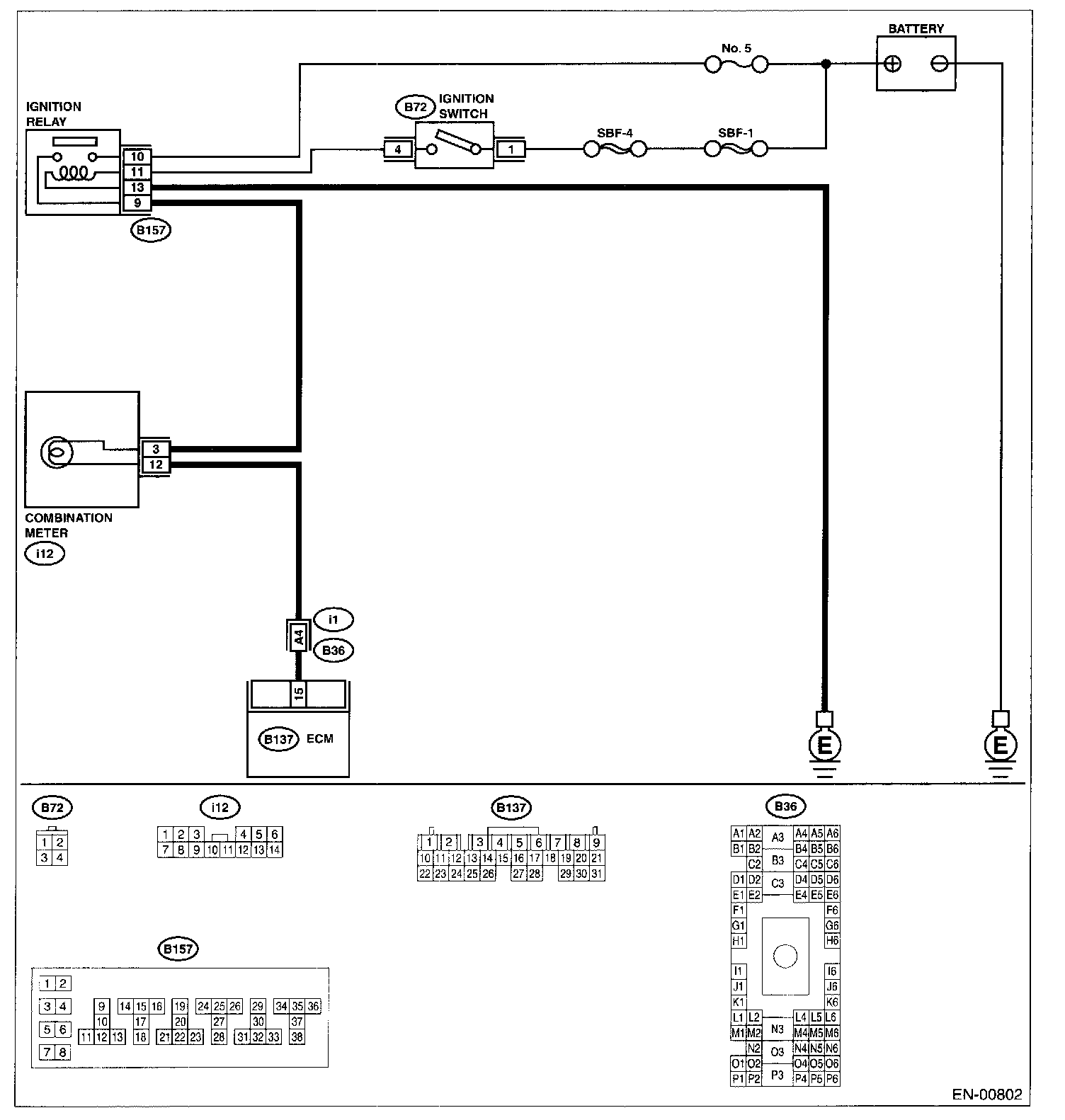

Wiring Diagram:

WIRING DIAGRAM

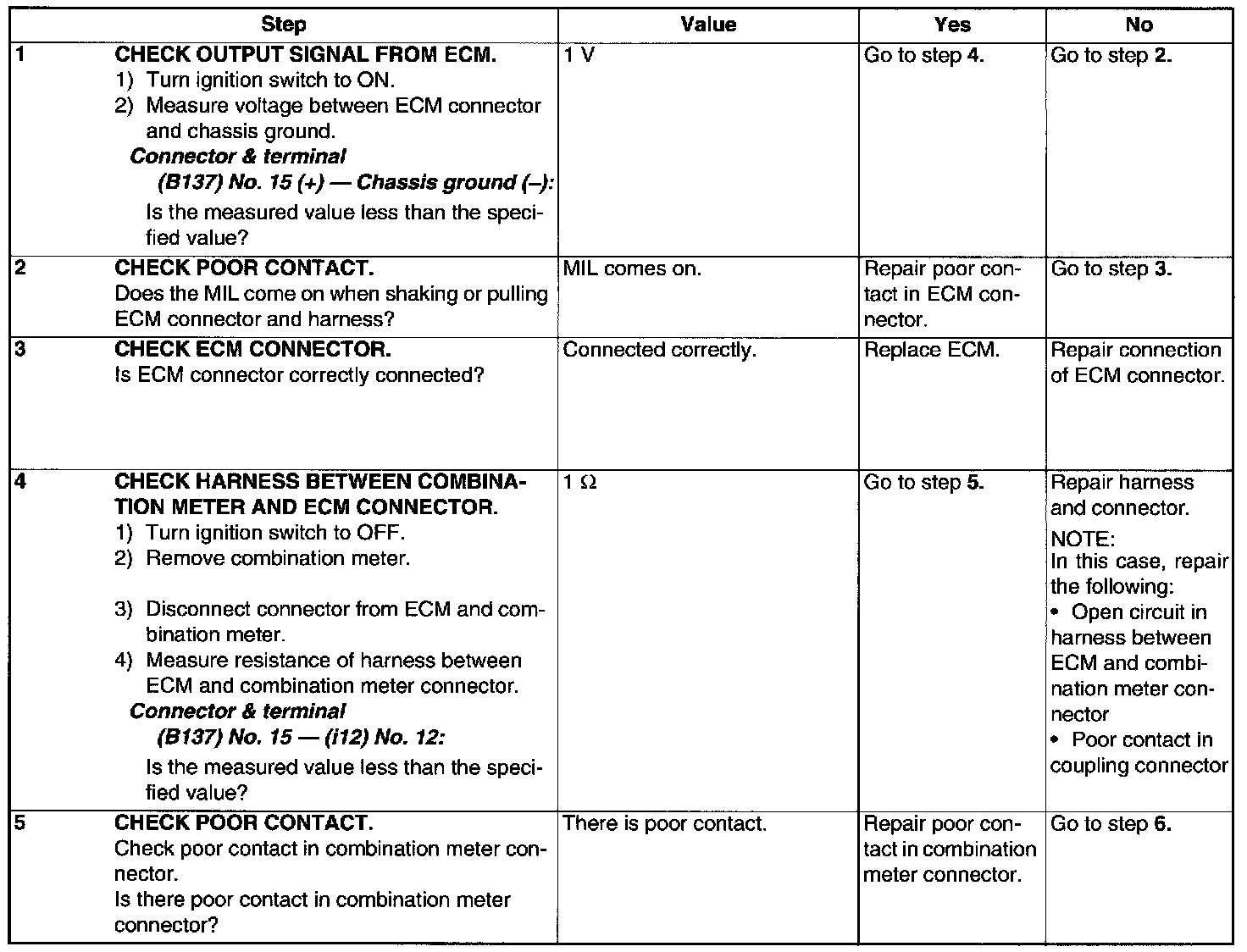

Step 1 - 5:

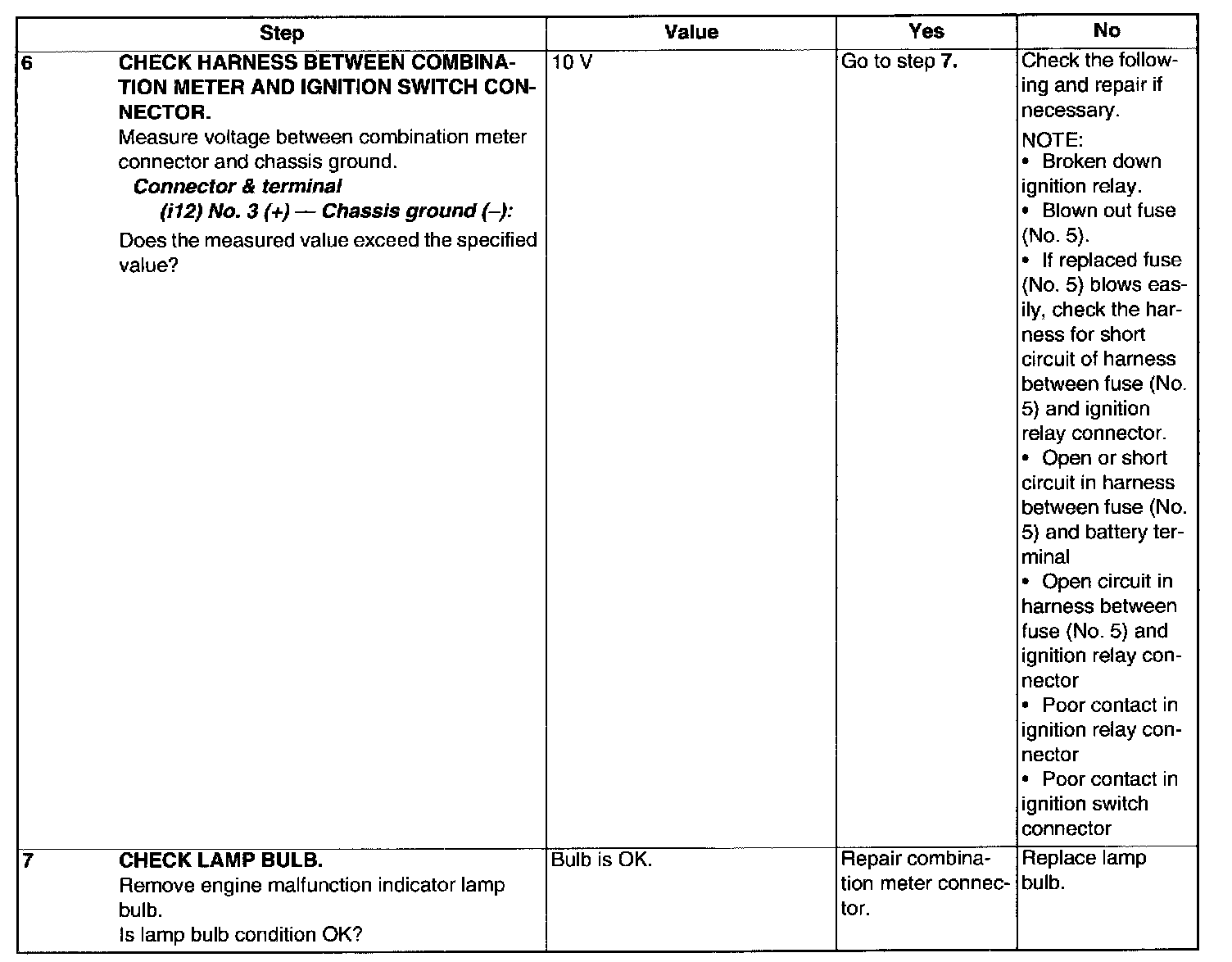

Step 6 - 7:
