Fresh/Recirc Does Not Change
FRESH/RECIRC DOES NOT CHANGE
TROUBLE SYMPTOM:

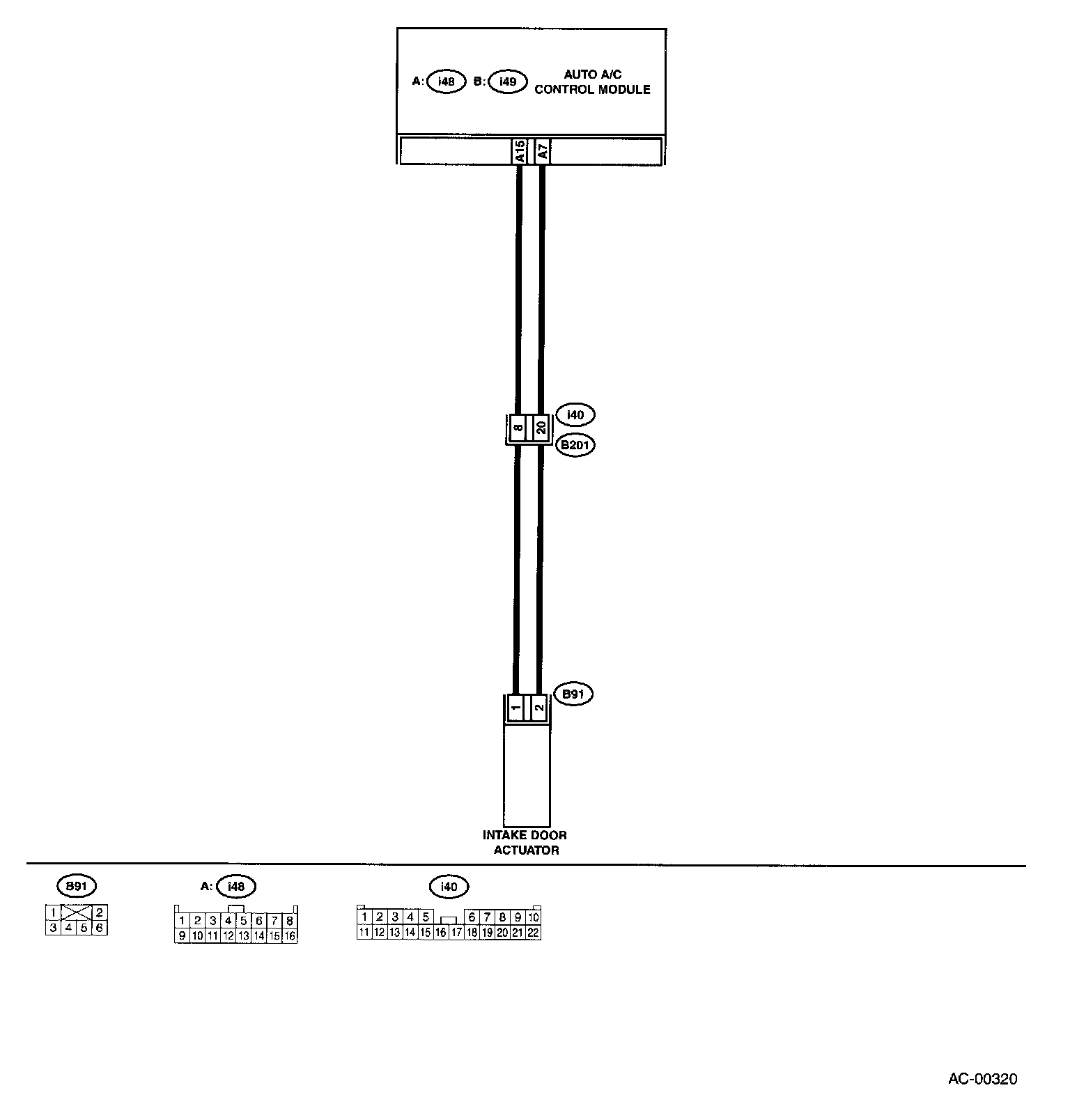

Wiring Diagram:
WIRING DIAGRAM:

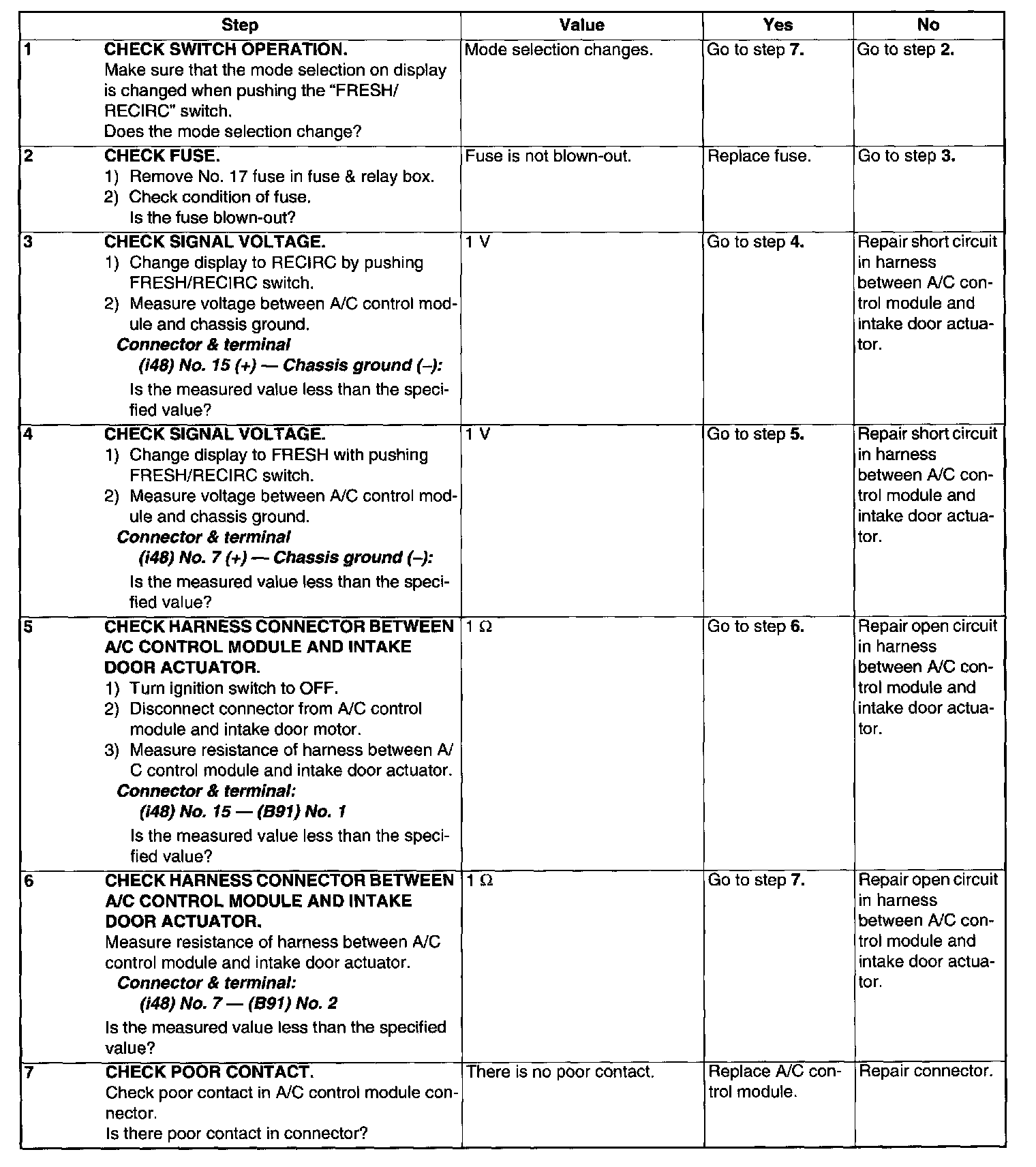

Step 1 - 7:
FRESH/RECIRC mode door does not change.
