FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Subaru
>>
2003
>>
Outback F6-3.0L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
Reading and Clearing Diagnostic Trouble Codes
>>
Without Scan Tool
Without Scan Tool
Self-Diagnosis Procedure

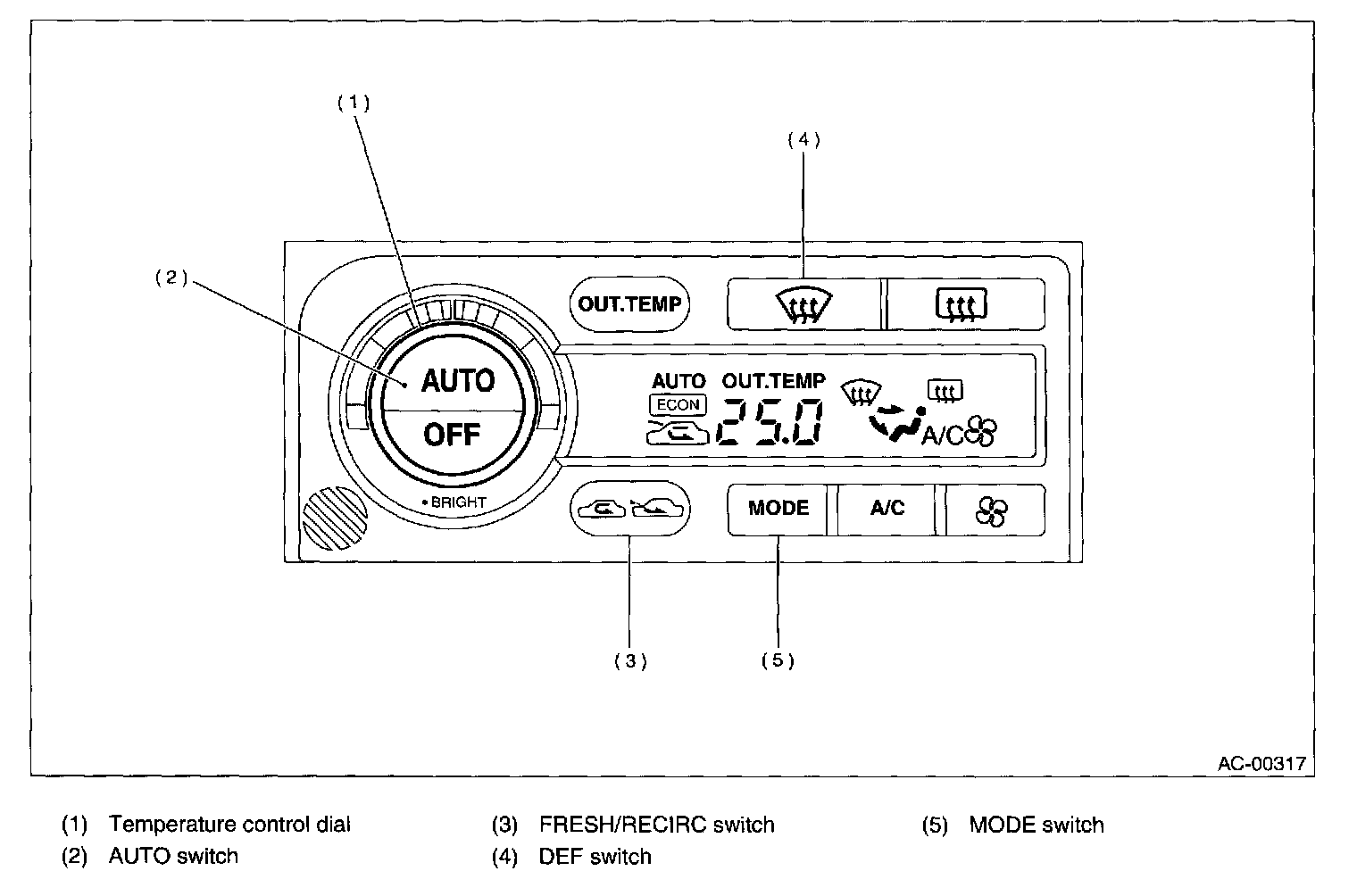

Operation:

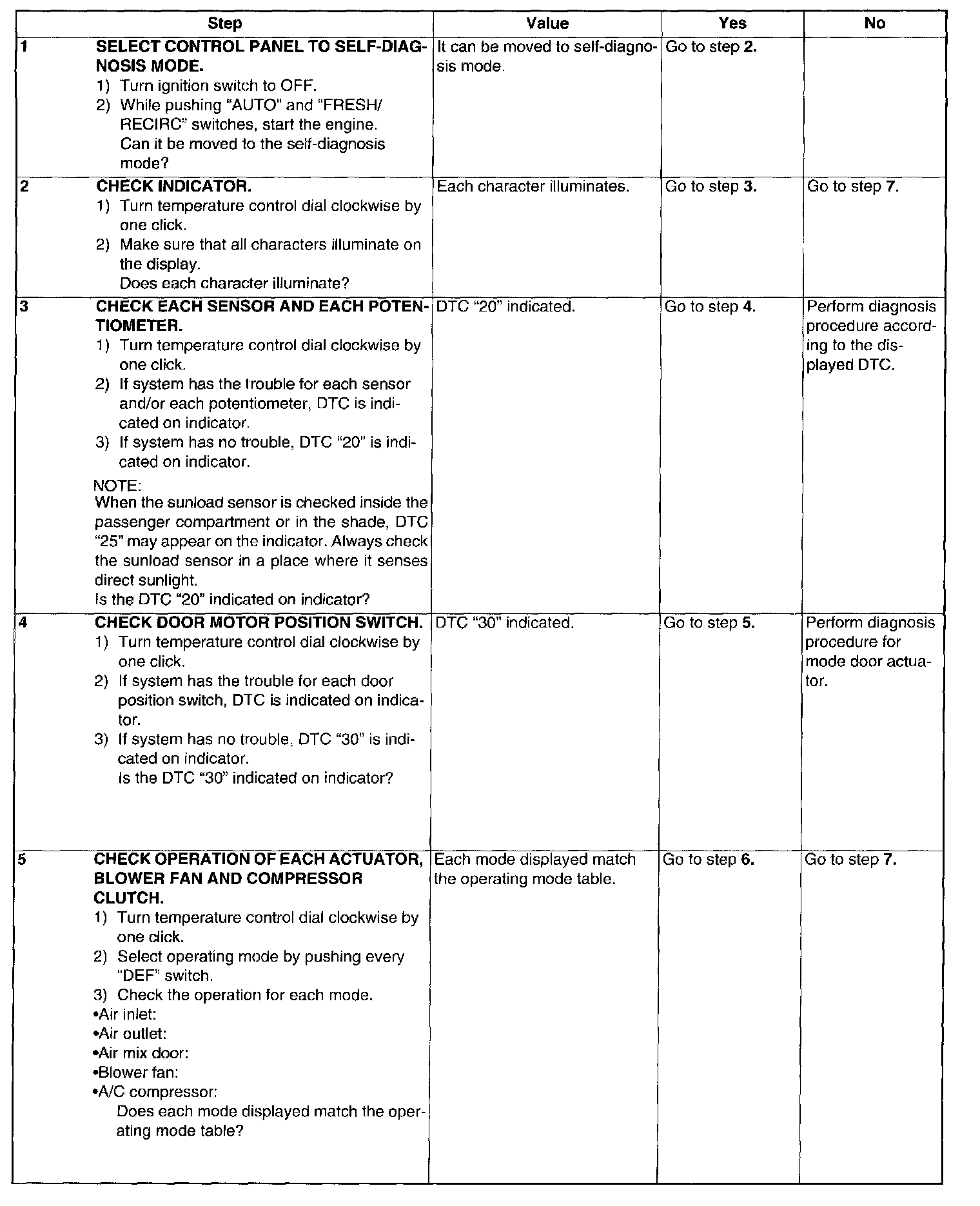

Step 1 - 5:

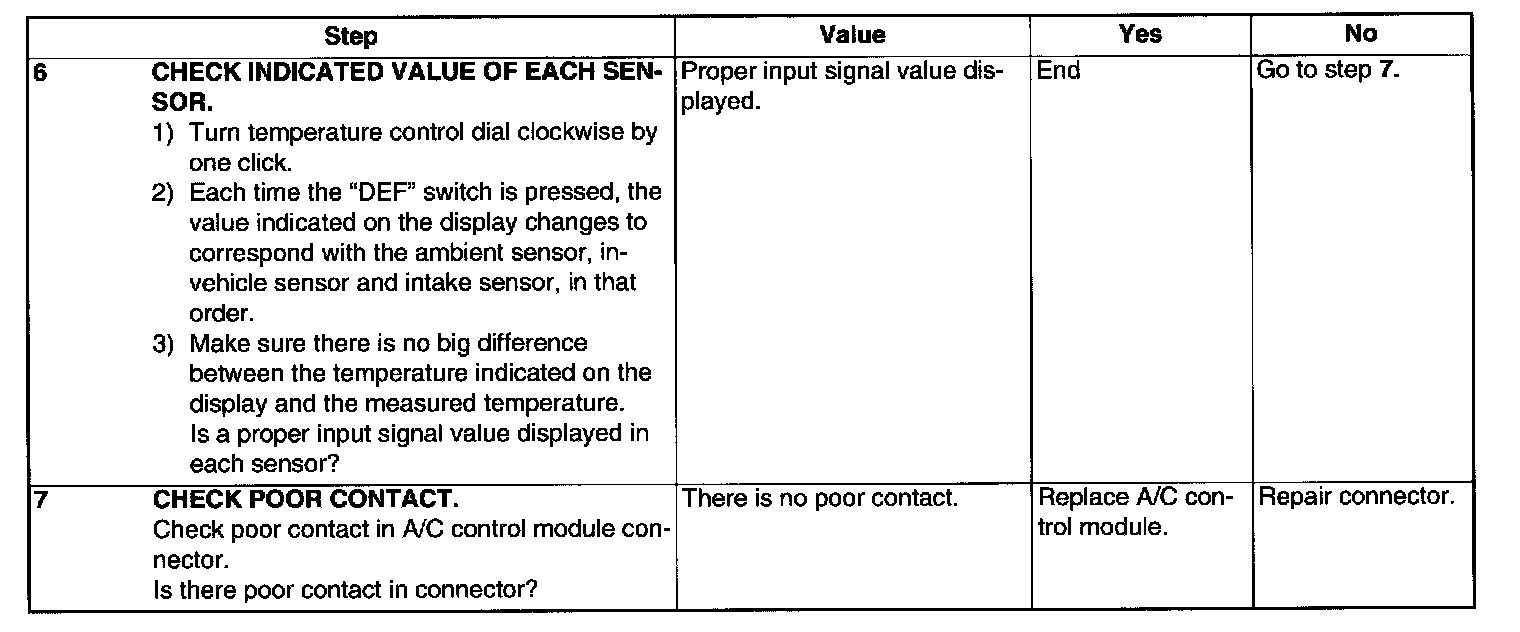

Step 6 - 7:
OPERATION

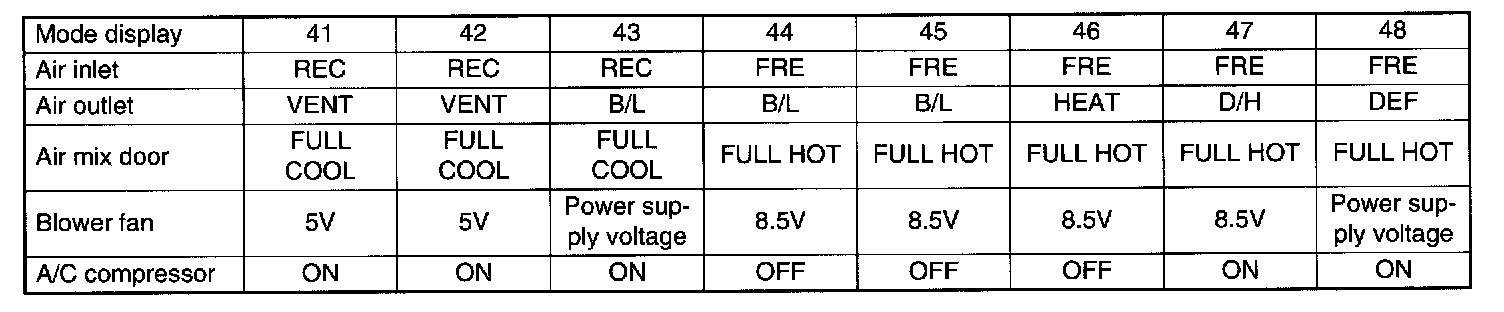

Operating Mode Table:
1.
OPERATING MODE TABLE
