Subaru
>>
2003
>>
Outback F6-3.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
>>
R15-R158
R15-R158
Rear Wiring Harness and Rear Tail Gate Cord

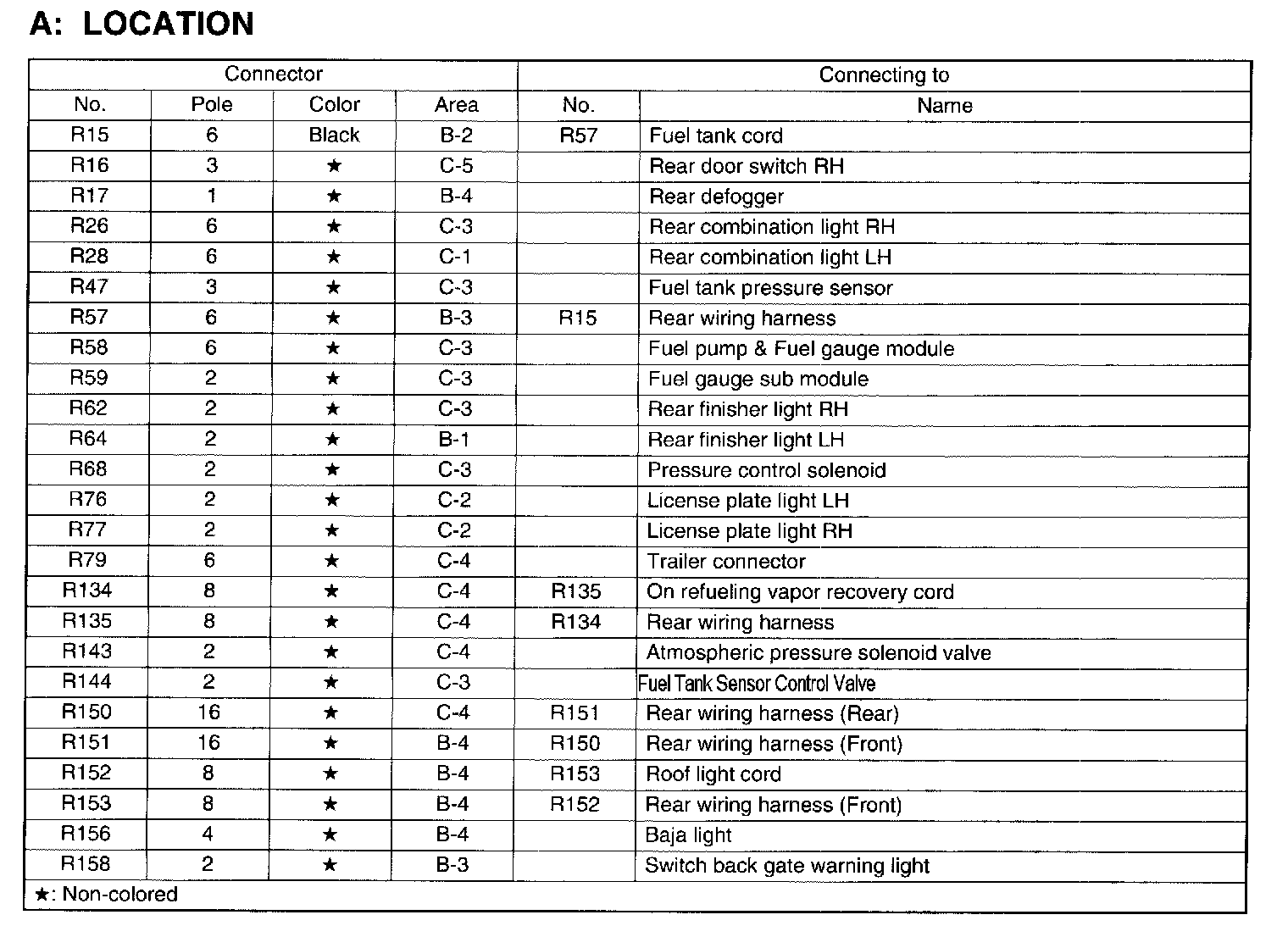

R15-R158:

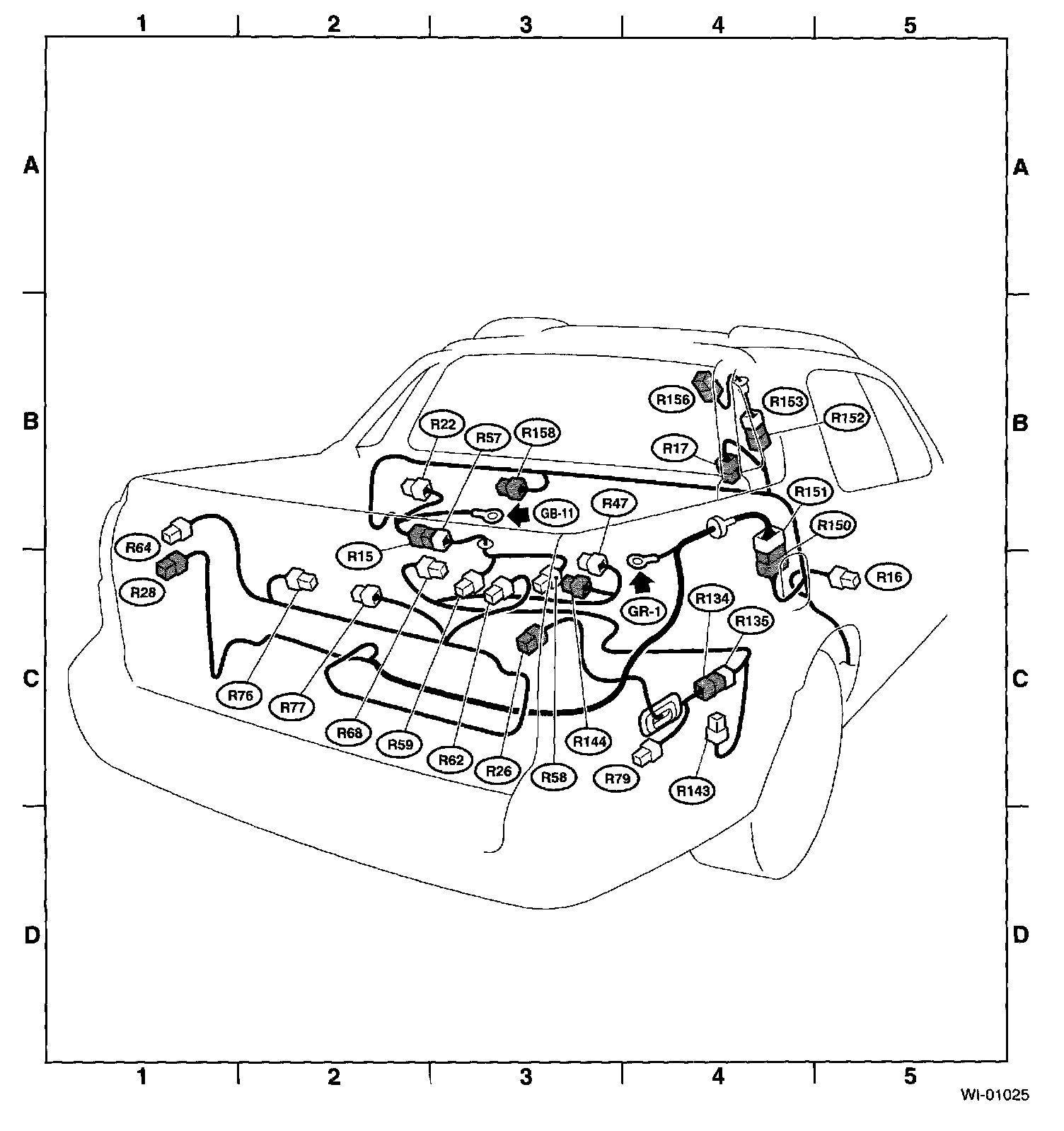

Area View:
