FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Subaru
>>
2003
>>
Outback F6-3.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
>>
R1-R149
R1-R149
Rear Wiring Harness

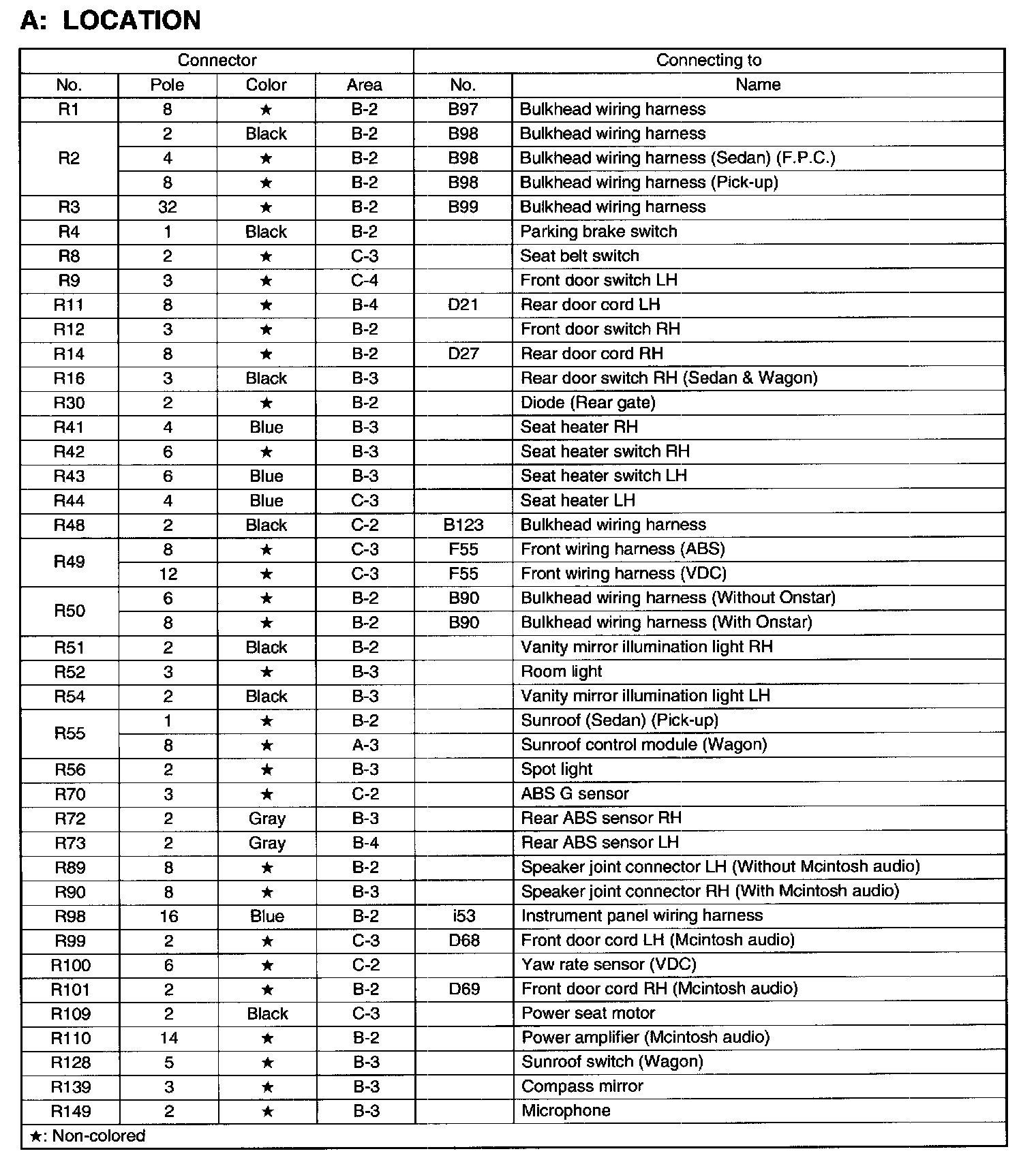

R1-R149:

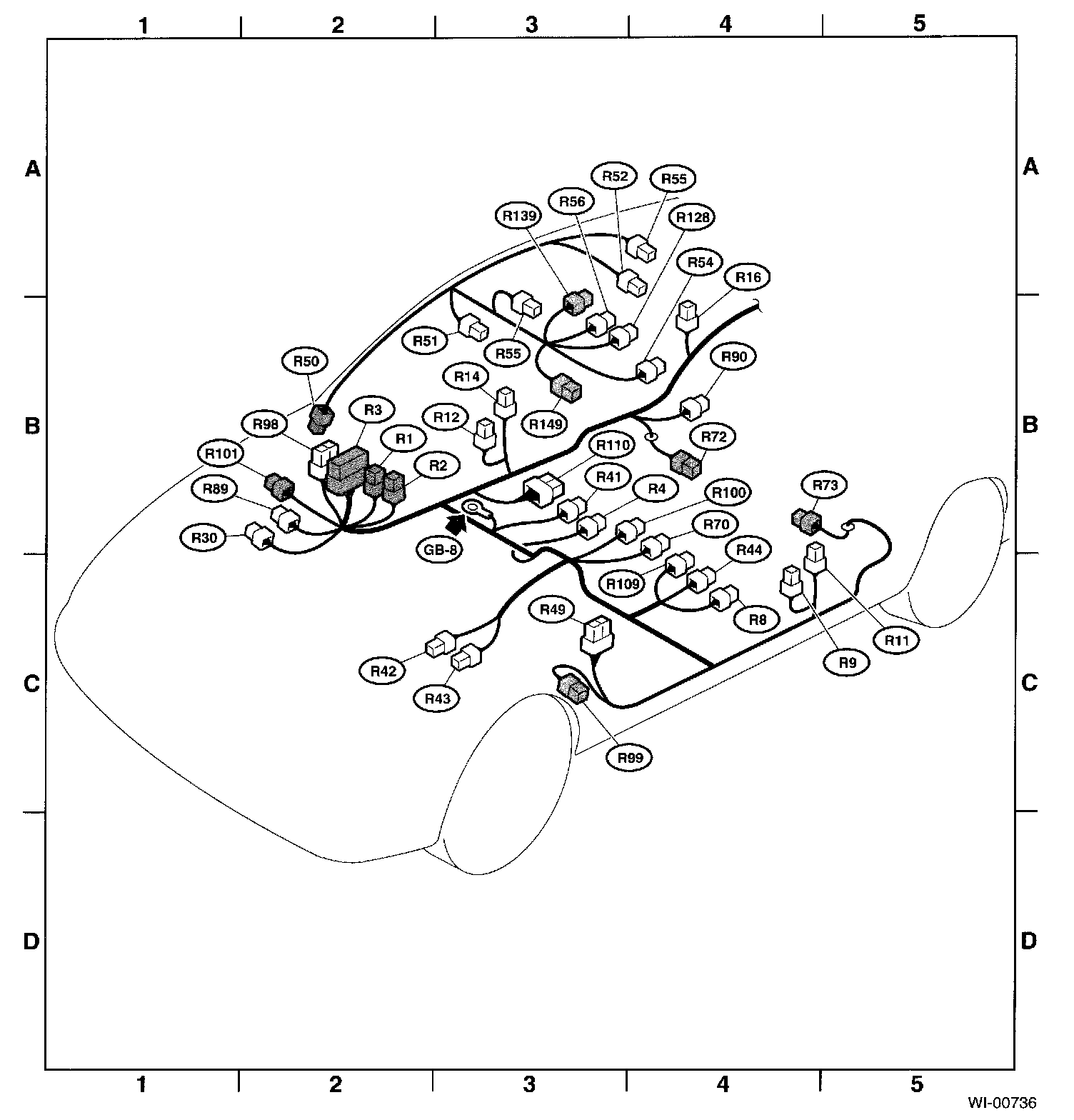

Area View:
