Diagrams
>>
Connectors
>>
B30-B329
B30-B329
Bulkhead Wiring Harness (In Compartment)

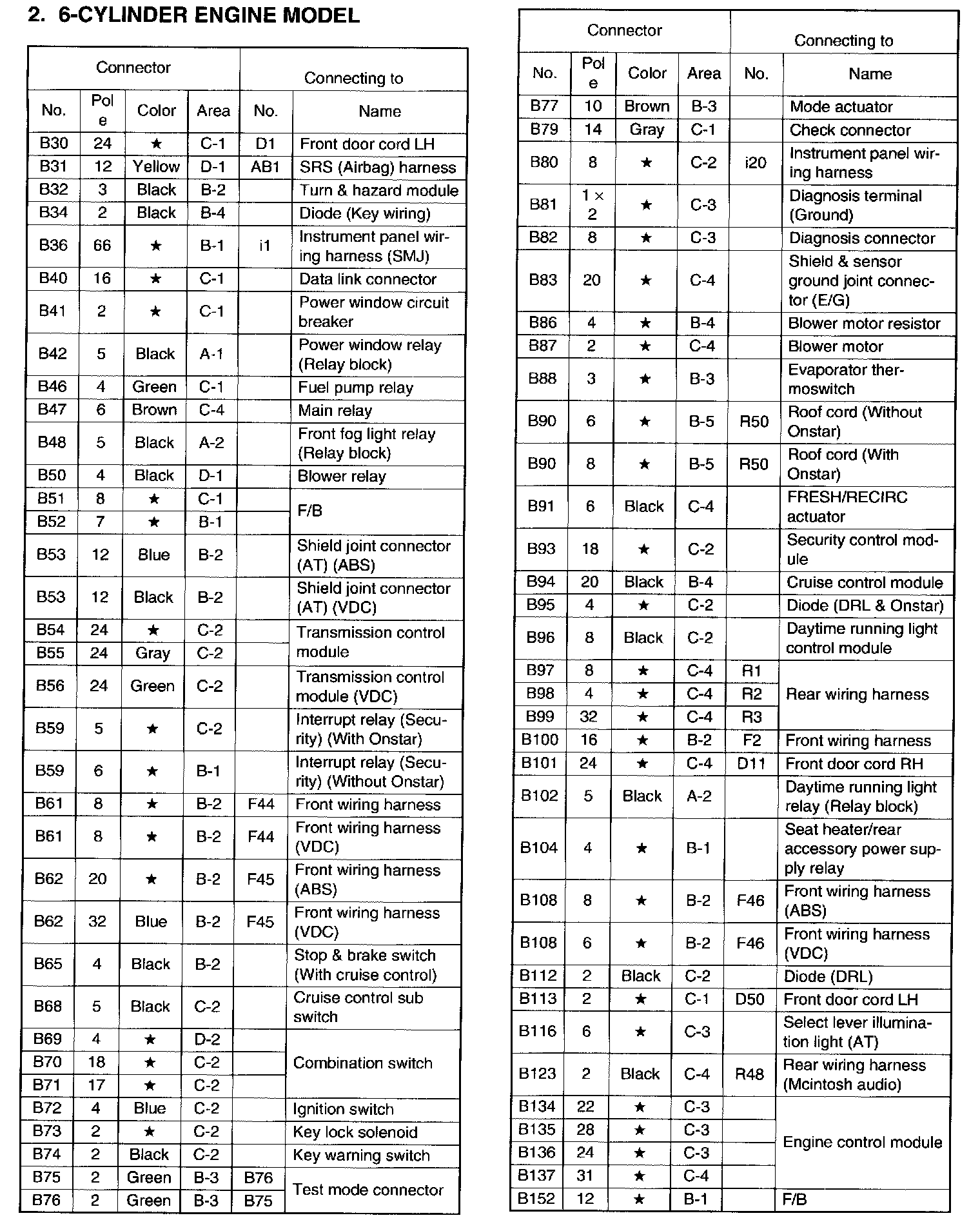

B30-B152:

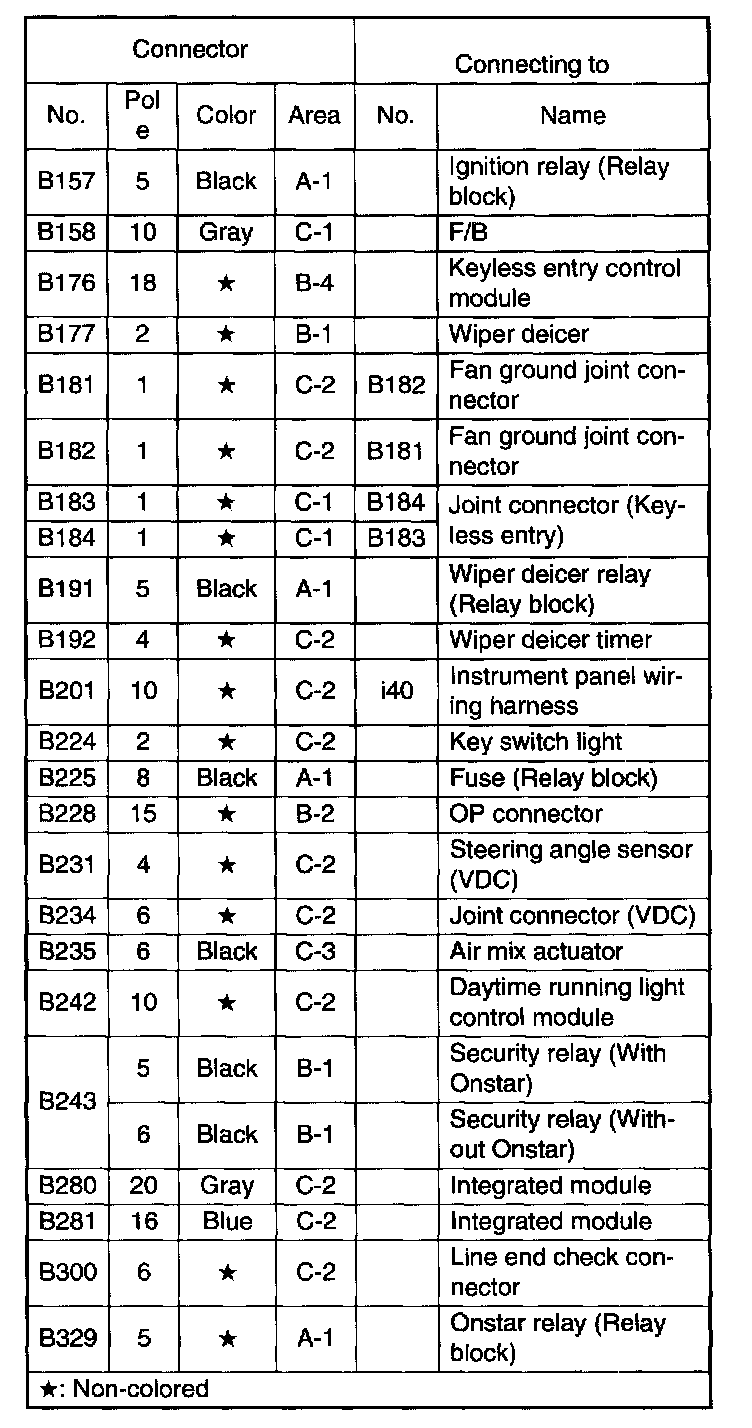

B157-B329:

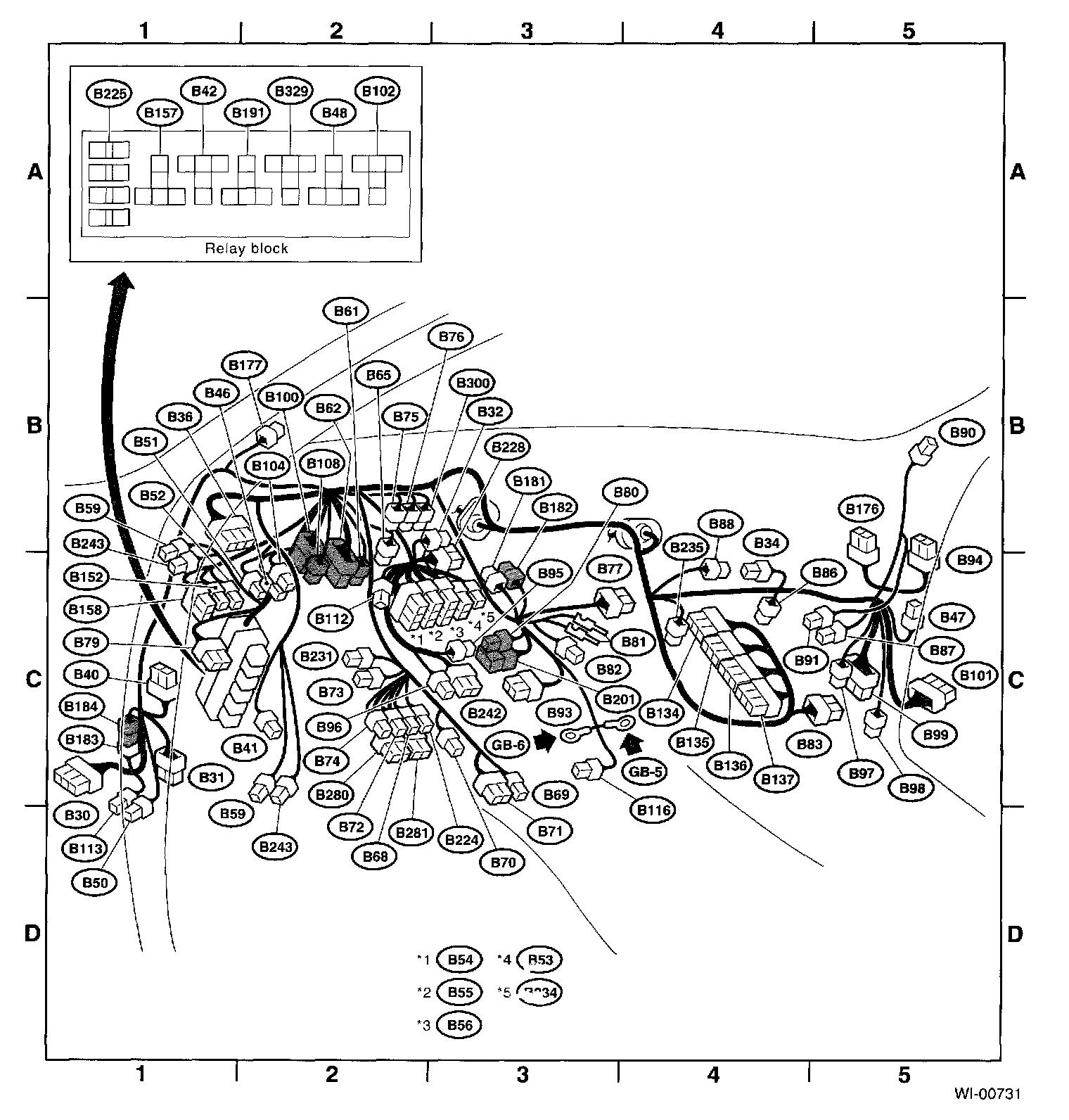

Area View:
