Diagnosis By Symptom - With VDC
Diagnosis By Symptom - With VDC

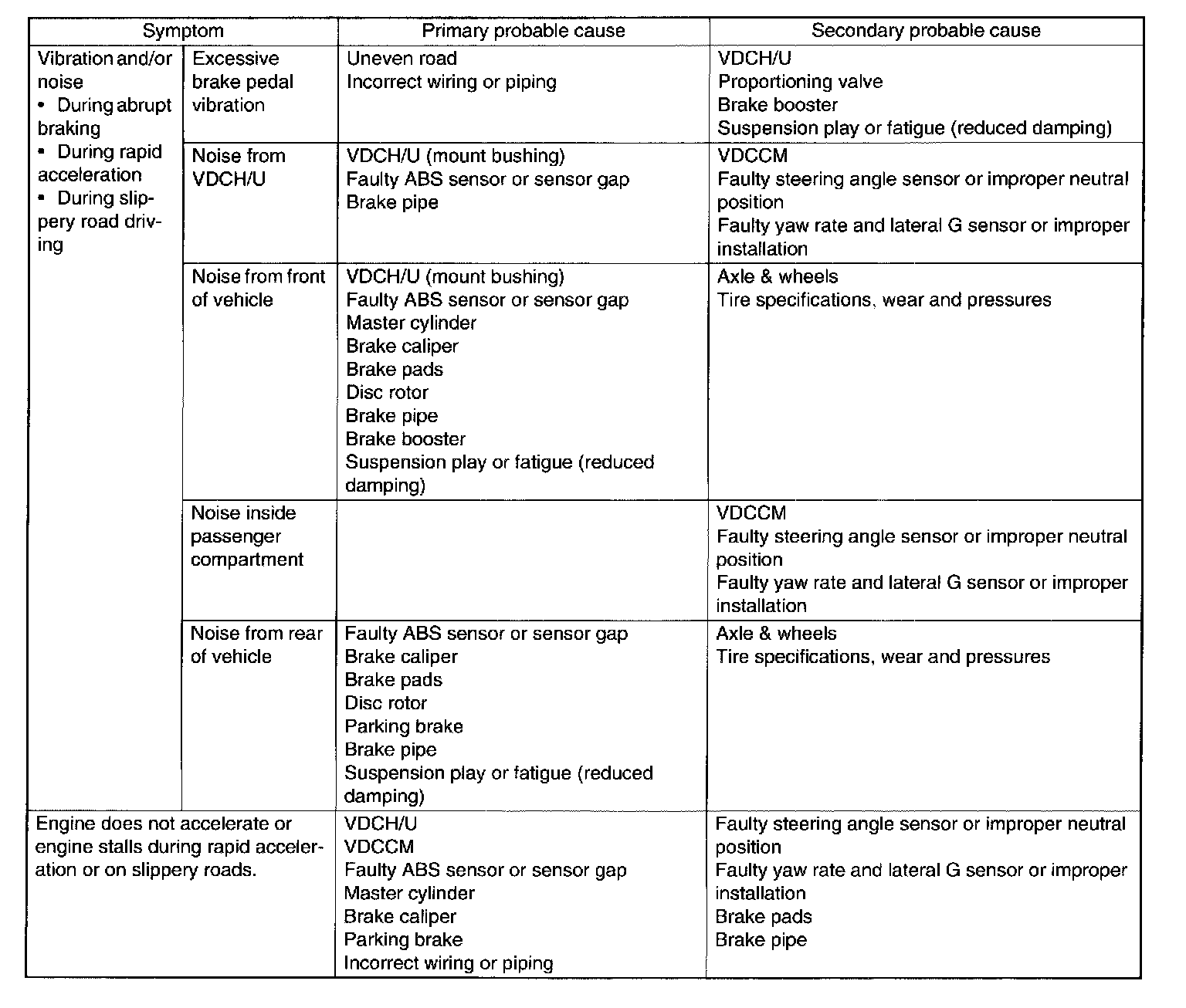

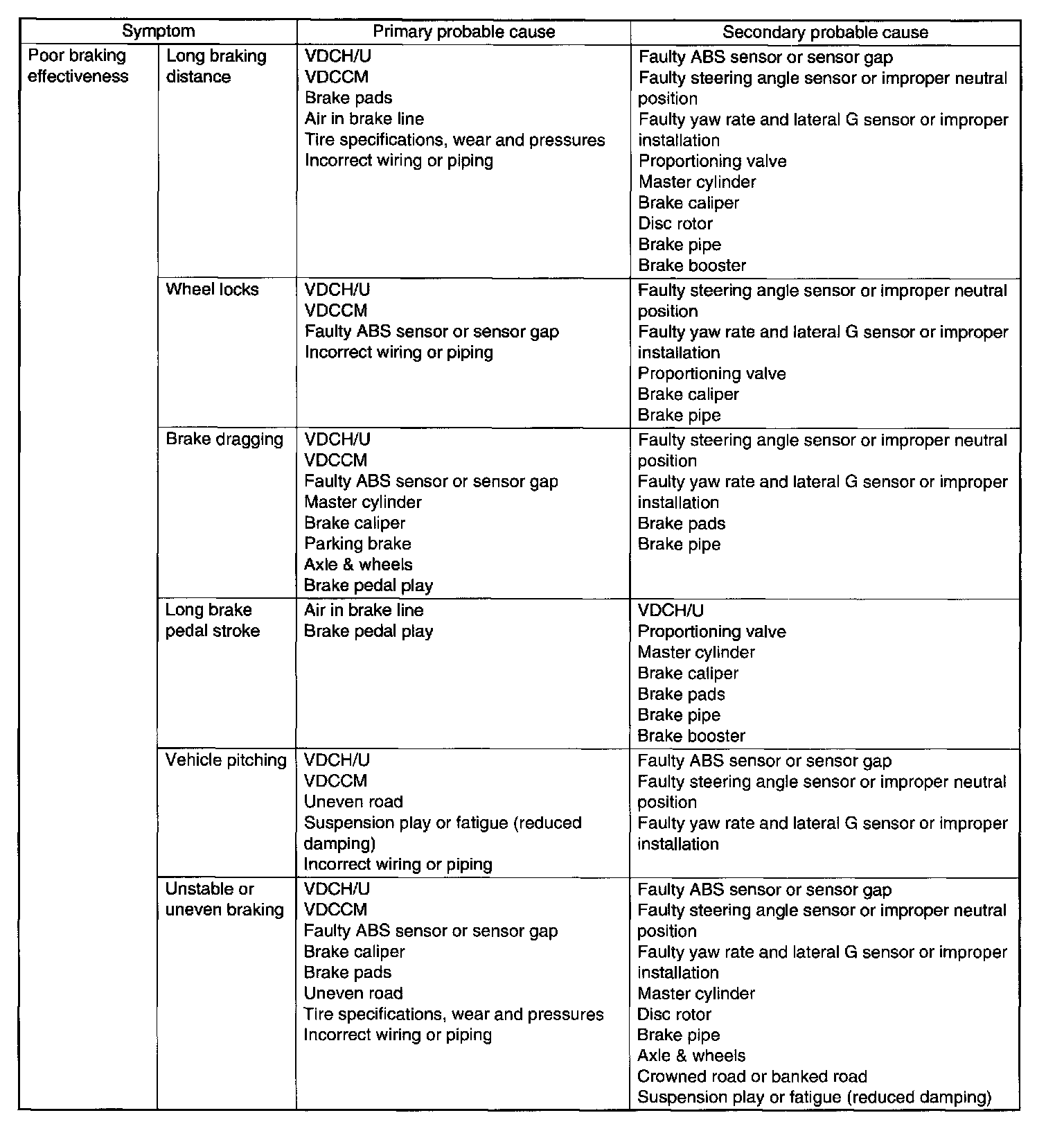

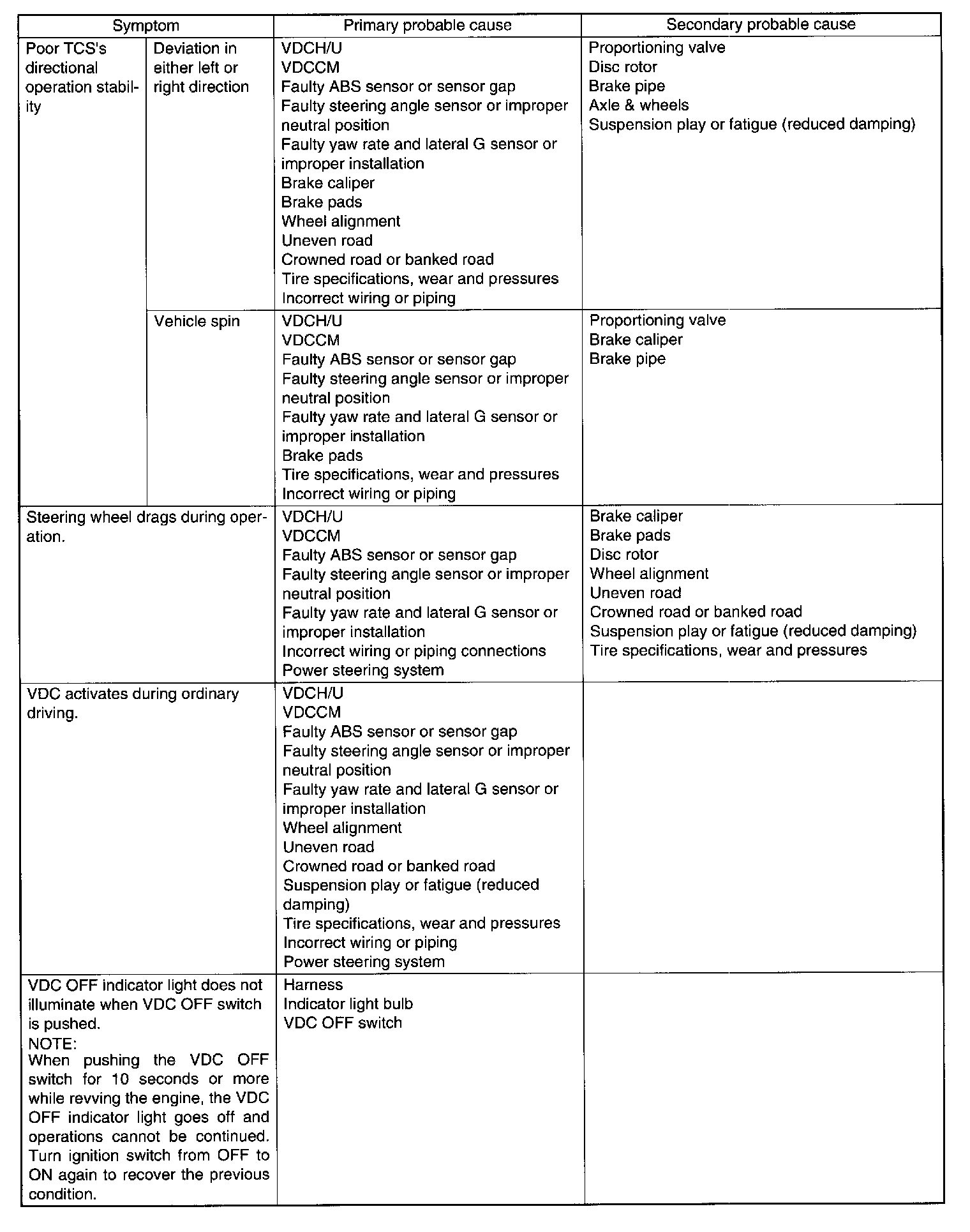

General Diagnostic Table
Test 1 Of 3:
Test 2 Of 3:
Test 3 Of 3:
INSPECTION
